3 Working with the FB editor
3.4 Creating/reconfiguring the interconnection
68
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

How to insert a new comment into the interconnection:
1. Move the mouse pointer to the (free) position in the drawing area where the comment is
to be inserted.
2. Select the New comment command in the context menu (right mouse button).

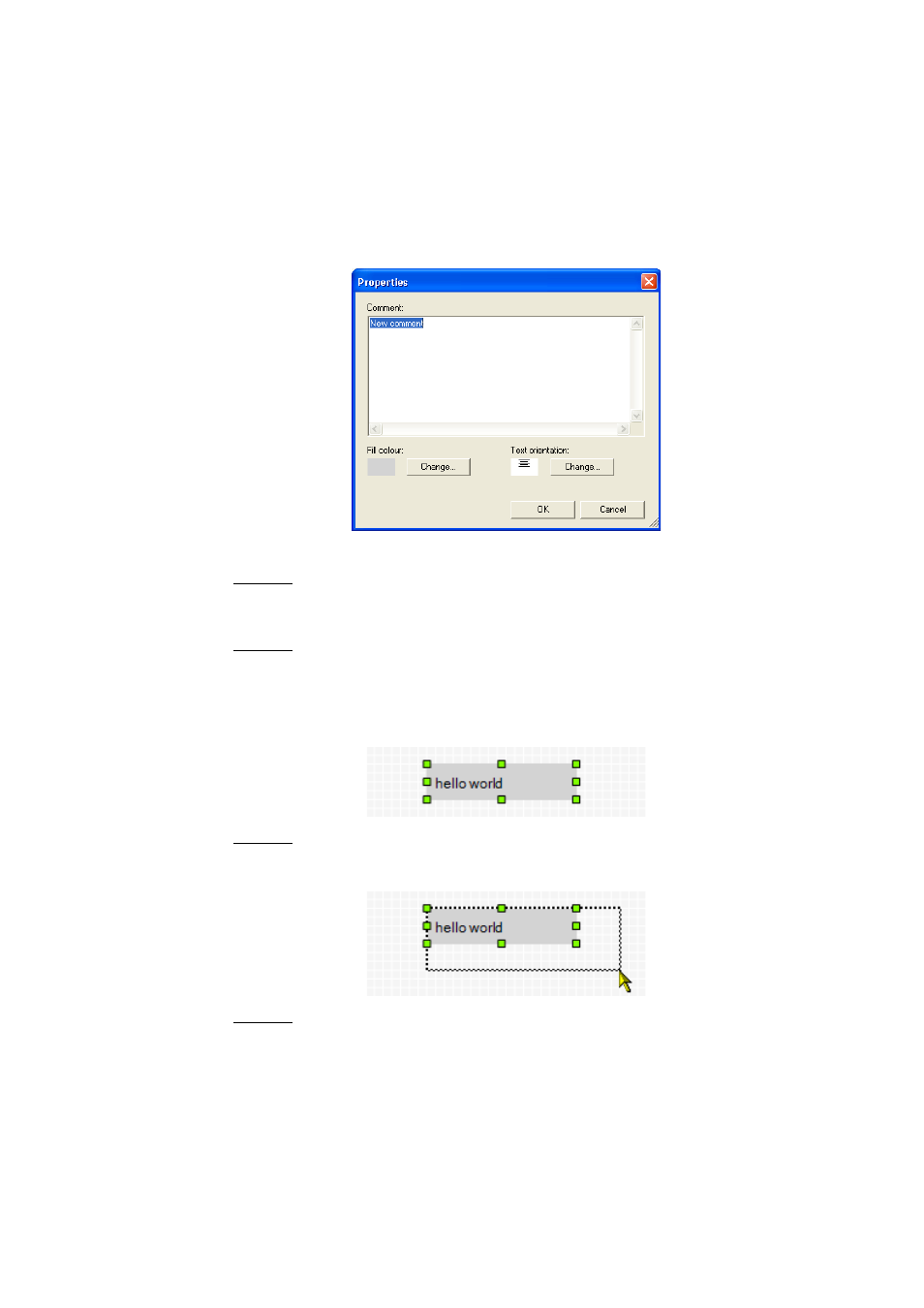

• The Properties dialog is displayed:
3. Enter the required comment into the text field.
4. Optional: Change preset interior colour.
• For this purpose, click the left Change... button to open the Colour dialog box to select
another interior colour.
5. Optional: Change preset text alignment.
• For this purpose, click the right Change... button to open the Text alignment dialog box
to select another interior colour.
6. Press OK to close the Properties dialog box and insert the comment.
• After being inserted, the corner points of the comments are shown:
7. Optional: Change size of the comment.
• For this purpose click one of the corner points with the left mouse button and enlarge
the comment to the required size with the mouse button pressed.
8. Optional: Drag comment.
• For this purpose click the comment with the left mouse button and move the comment
to the required position with the mouse button pressed.
