Lenze E94A - Manual (Page 177)

Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
177
5 Function blocks
5.9 L_CamStretchAbs - stretching/compressing the position (absolute)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.9.1 Typical application
By means of this FB a traversing path within the limited traversing range can be simply changed via
factors. By this, the motion profile can be maintained.

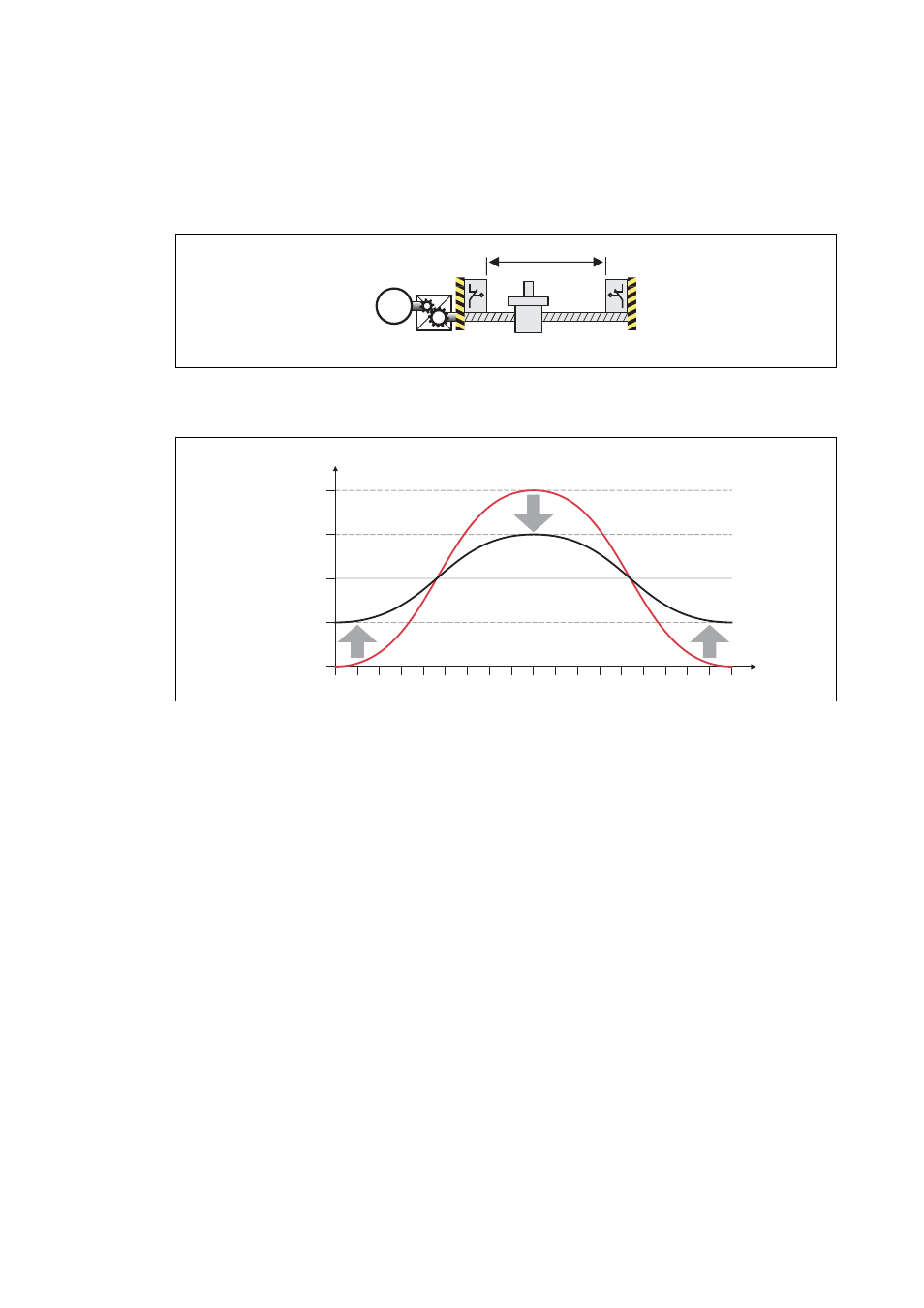

[5-17] Example: spindle drive
• Thereby the factors always relate to the zero point of the motion profile on the y axis.
[5-18] Example: Decrease of the lift to 50 % with stretch factor = 0.5
 Limited traversing range
M
Œ
dnPosIn_p
0° 20° 40° 60° 80° 100° 120° 140° 160° 180° 200° 220° 240° 260° 280° 300° 320° 340° 360°
-100
0
100
dnPosOut_p
50
-50
