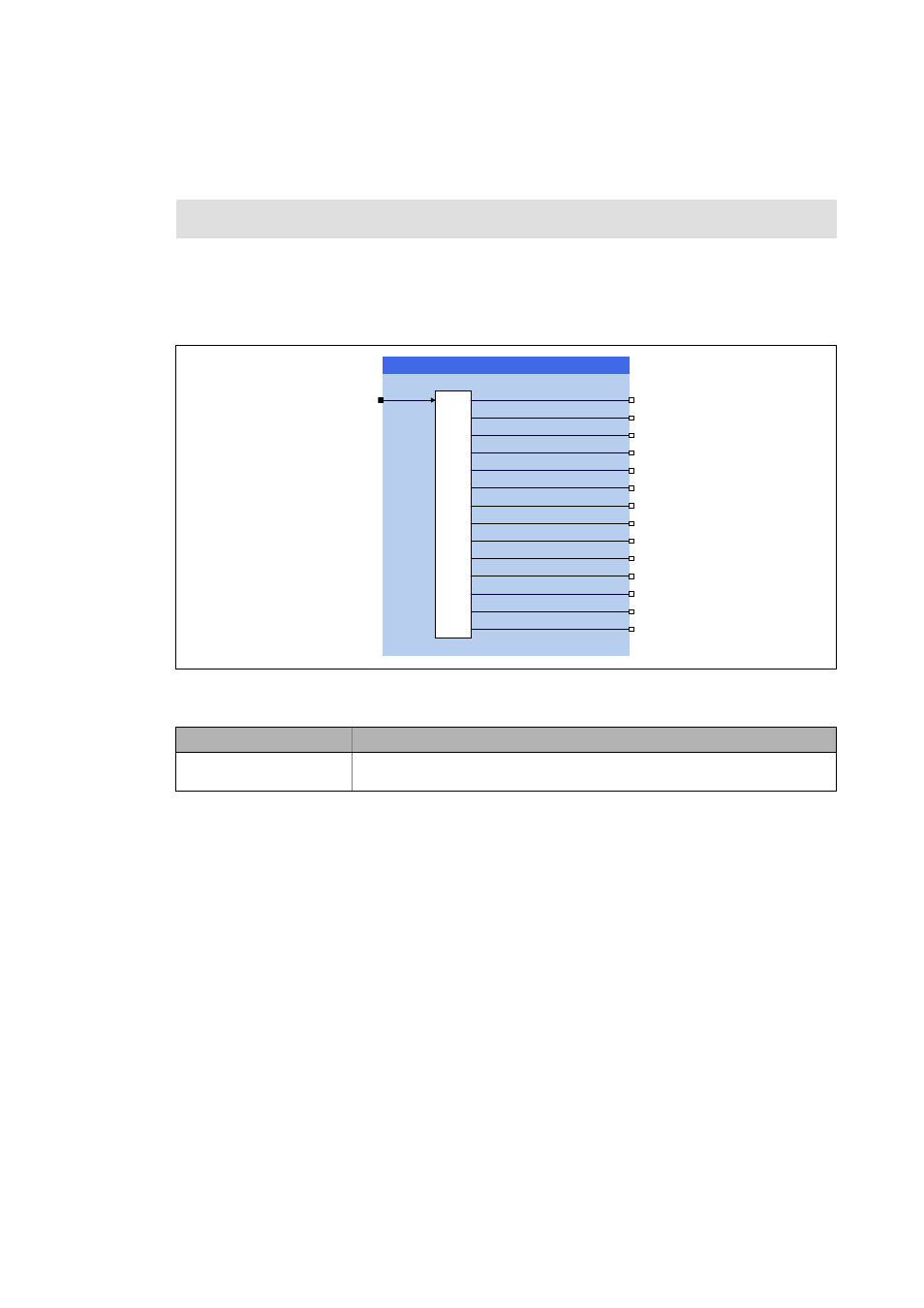

5.68 L_DevHomingStateDecoder - status signals of the basic function "Homing"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.68 L_DevHomingStateDecoder - status signals of the basic function "Homing"
This FB decodes the status output signal dnState of the SB LS_Homing into individual boolean status
signals for further use in the FB interconnection.
• The functionality corresponds to a converter "DINTBOOL", but the boolean outputs of this FB
have the same names according to their meaning.
Inputs
Function library: LenzeDevice9400
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnState
DINT
Input for the bit-coded status signal of the basic function "Homing".
• Connect this input with the output of the same name of the SB LS_Homing.
/B'HY+RPLQJ6WDWH'HFRGHU
GQ6WDWH
/6B+RPLQJVWDWH
E$FWLYH
E'RQH
E$FF'HF
E&FZ
E+RPH3RV2.
E(UURU$FWLYH
E5HI0DUN'HWHFW
E73'HWHFW
E/LP3URILOH
E/LP'LU
E/LP$ERUW
E6WRSSLQJ$FWLYH
E(UU3*
E0LQ2YHUULGH
