5 Function blocks
5.194 L_TbPT1Filter - delay
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.194 L_TbPT1Filter - delay
This FB filters and delays analog signals.
• The filter time constant T is set via the parameter C04040.
• The gain is fixed at V = 1.
• The function corresponds to the "PT1" function of the 9300 servo inverter.
Inputs
Outputs
Parameter
Function

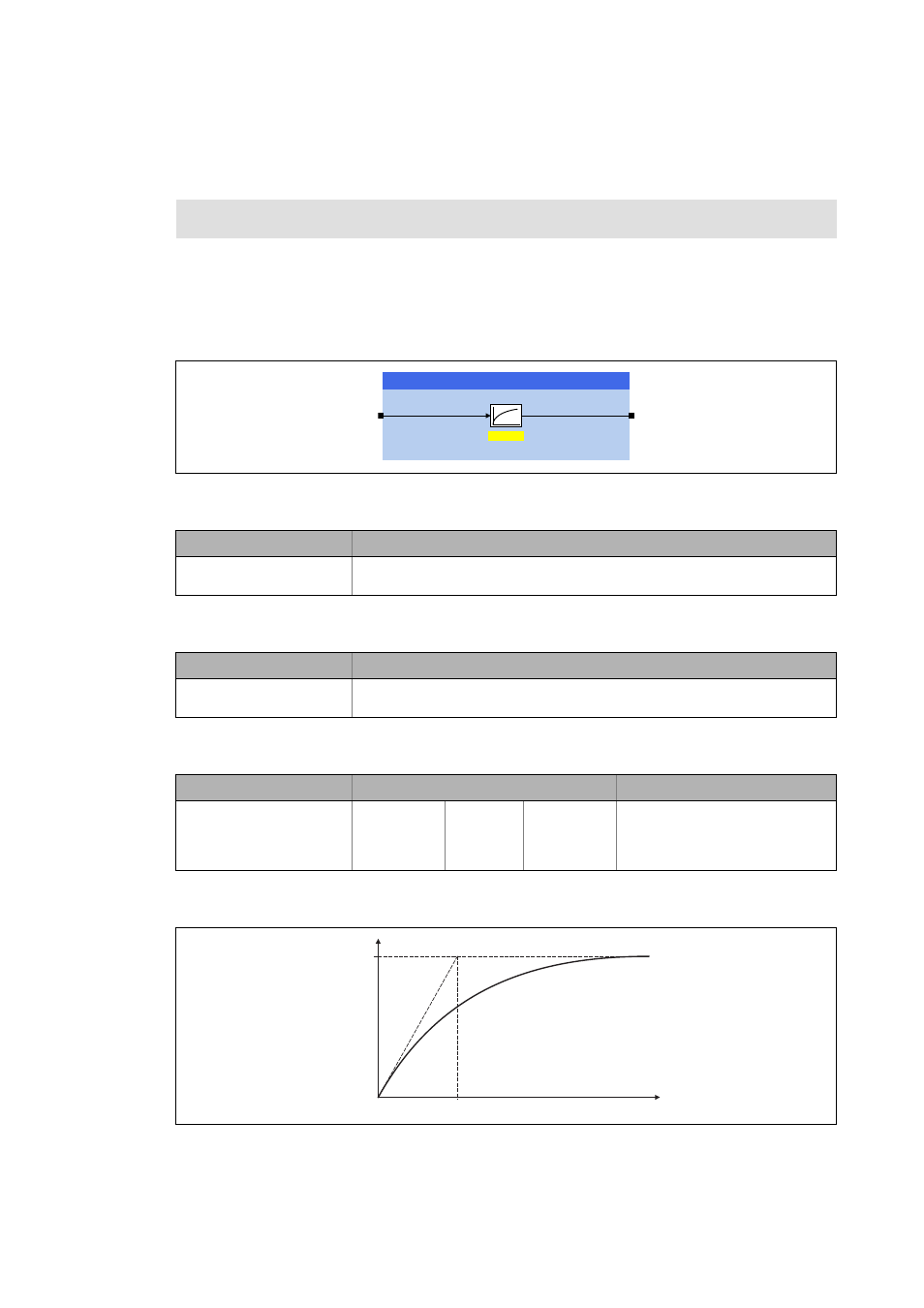

[5-148] Filter time constant T of the first-order delay element
Function library: LenzeToolbox
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnIn
DINT
Input signal
Identifier/data type Value/meaning
dnOut
DINT
Output signal
Parameter Possible settings Information
C04040 0.001 s 60.000 Filter time constant
• With the setting 0.001 s the filter
is not active.
• Initialisation: 0.001 s
GQ2XW
/B7E37)LOWHU
GQ,Q
&
)LOWHUWLPHFRQVWDQW
T
V = 1
t
