Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
655
5 Function blocks
5.210 L_WndTensionCurve - tensile force characteristic
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.210.1.3 Course of the tensile force according to a specified characteristic
The characteristic () can be parameterised in C04885/x and contains 65 values, equally distributed
across the diameter area of D0 ... DMax:

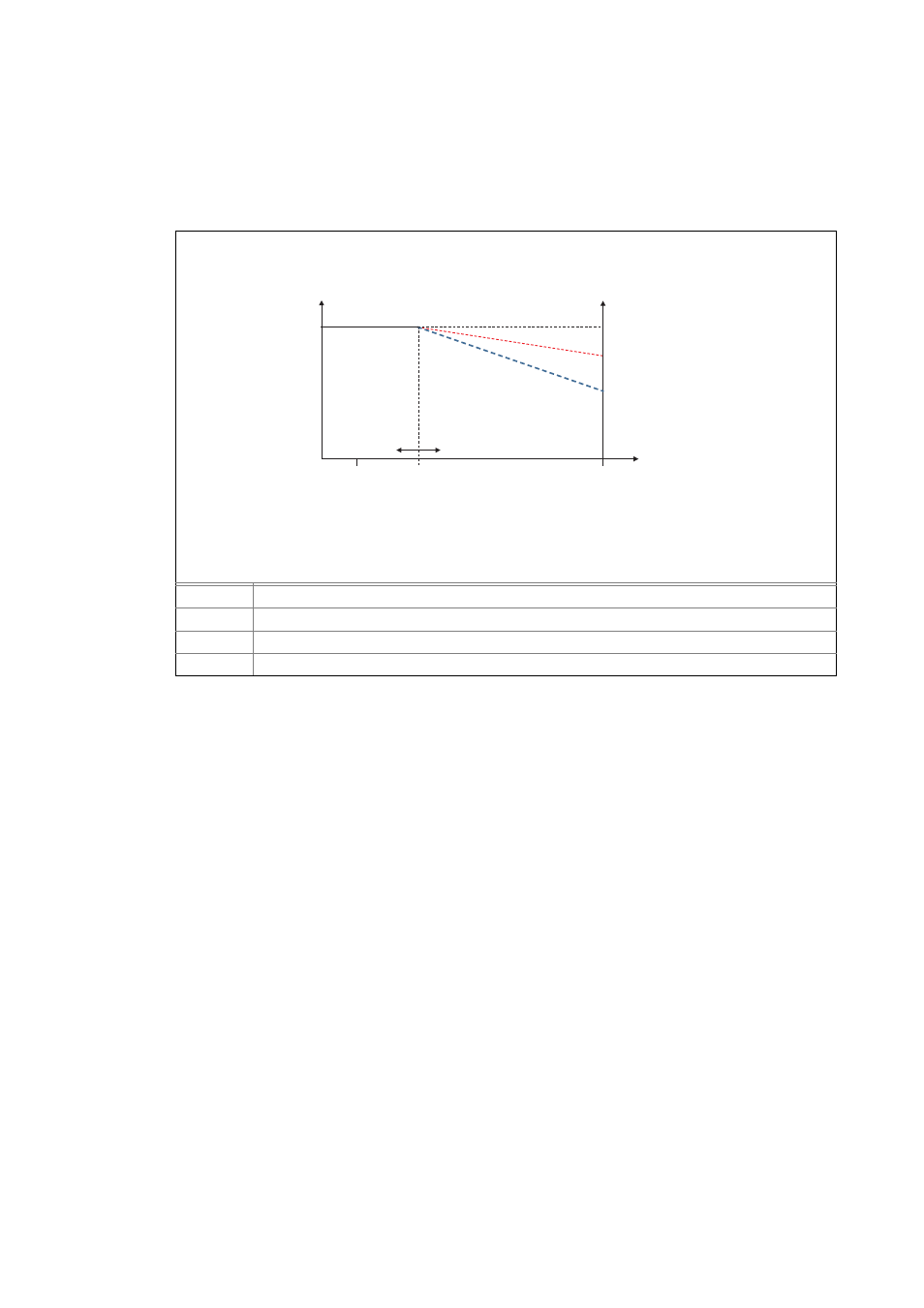

[5-160] Course of the tensile force according to a specified characteristic (dwSelectCurve = 2)
• Via dnD0_n you define the start of the table area (D0).
• Via dnCurveCtrl_n the gradient of the characteristic can be altered.
• At dnCurveCtrl_n = 0 % the gradient of the characteristic remains unchanged.
Characteristic

Tensile force
 Diameter
Function for D > D0:
 Table function (e.g. straight line)
TAB[D-D0] Table value [1...65] for D-D0
D0 Starting point for diameter dependency (dnD0_n)
HW Evaluation of tensile force (dnCurveCtrl_n)
Œ

DMin
(DMax)
D0 100 %
100 %
0 %
100 %
dnCurveCtrl_n = 0 %
HW
TAB[1]
TAB[65]
0
100 %
100 % TAB[D-D0]
–
( ) 100 % HW
–
( ) ⋅
100 %
----------------------------------------------------------------------------------------------- –
