5 Function blocks
5.30 L_DcDIntToInt - type converter
216
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

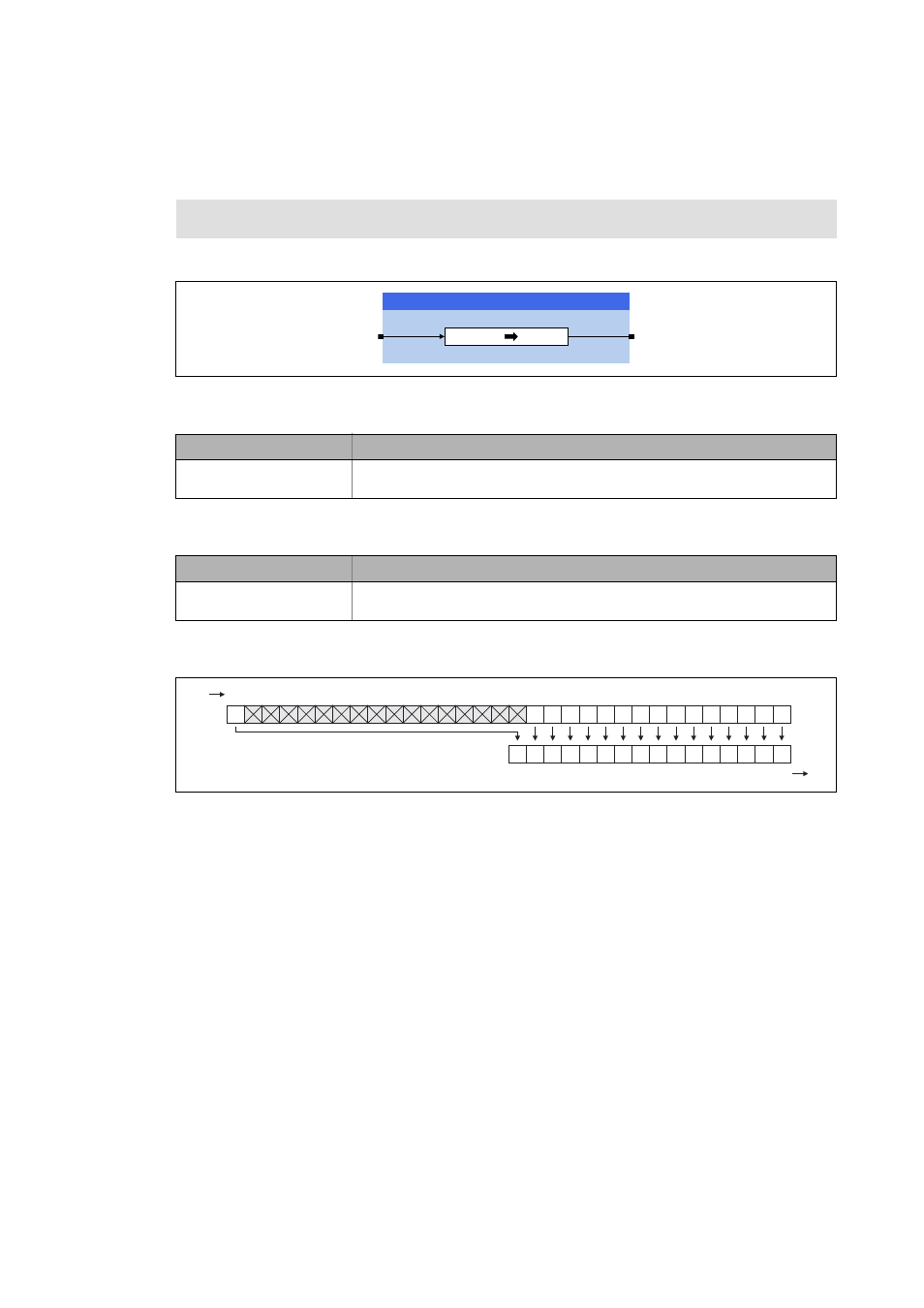

5.30 L_DcDIntToInt - type converter
This FB converts a data type "DINT" into the data type "INT".
Inputs
Outputs
Function
Function library: LenzeDataConversion
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dnIn
DINT
Input signal
• Internal limitation to -32768 ... +32767 (INT display area).
Identifier/data type Value/meaning
nOut
INT
Output signal
Q2XW GQ,Q
/B'F',QW7R,QW
',17 ,17
Bit 0 Bit 31
Bit 0
INT
DINT (-32768 ... +32767 )
dec
Bit 15
±
±
