Lenze E94A - Manual (Page 225)

Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
225
5 Function blocks

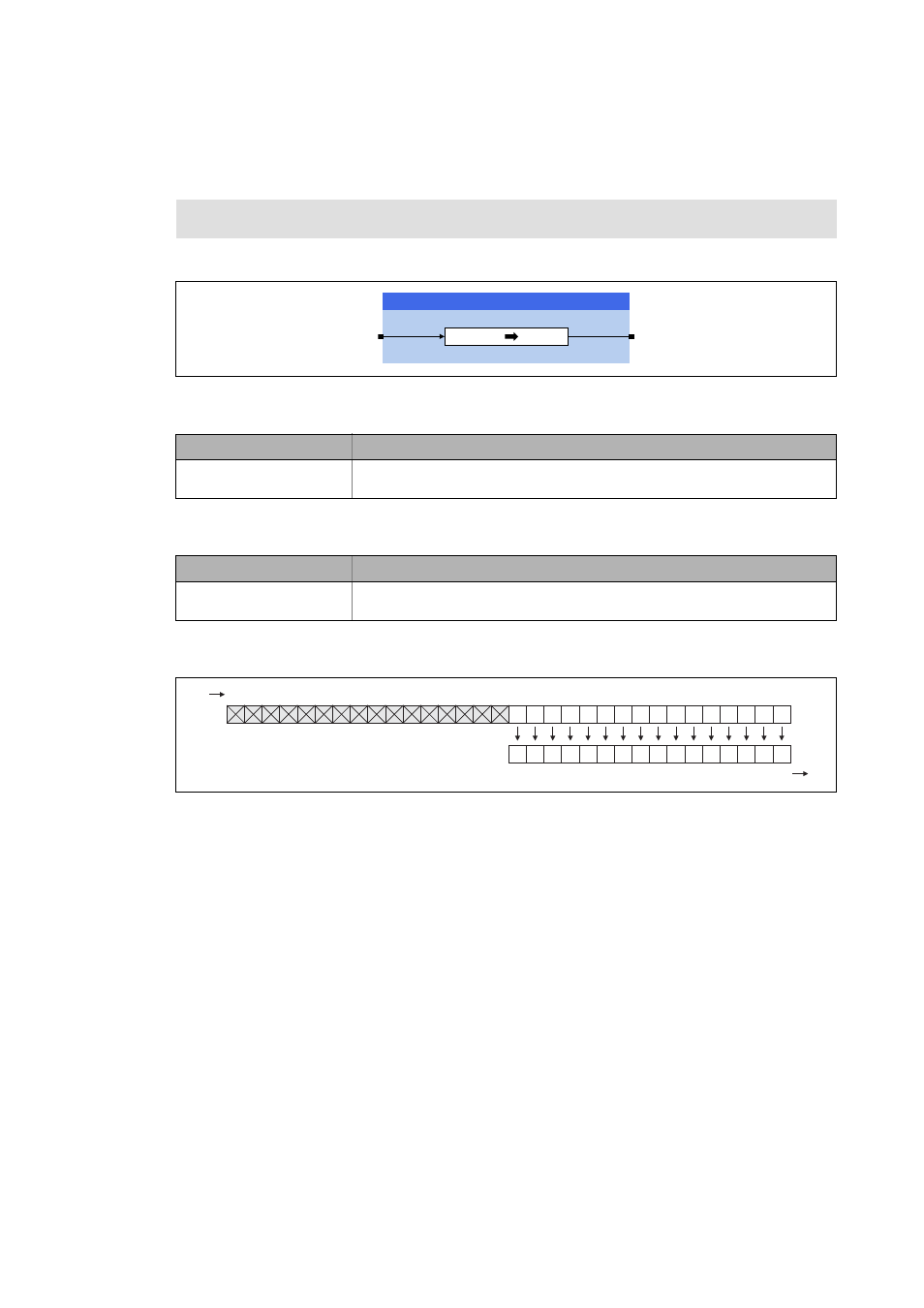

5.38 L_DcDWordToWord - type converter
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.38 L_DcDWordToWord - type converter
This FB converts a data type "DWORD" into the data type "WORD".
Inputs
Outputs
Function
Function library: LenzeDataConversion
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
dwIn
DWORD
Input signal
Identifier/data type Value/meaning
wOut
WORD
Output signal
Z2XW GZ,Q
/B'F':RUG7R:RUG
':25' :25'
Bit 0 Bit 31
Bit 0
WORD
DWORD
Bit 15
