5 Function blocks
5.153 L_Tb8SelectByte - 1-out-of-8 selector (for data type "BYTE")
546
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

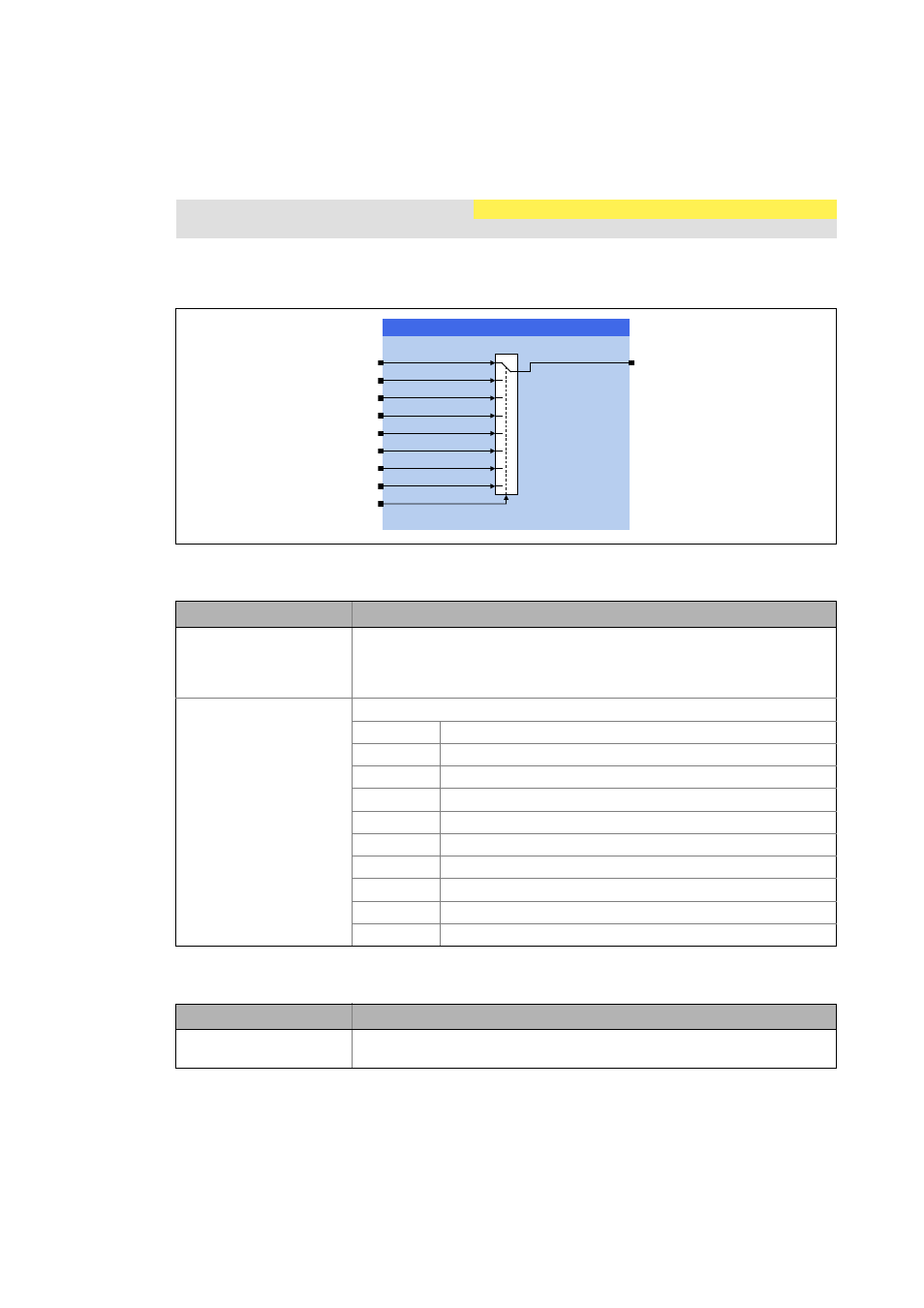

5.153 L_Tb8SelectByte - 1-out-of-8 selector (for data type "BYTE")
This FB connects one of eight input signals of "BYTE" type through to the output.
• The input is selected via the input dwSelect.
Inputs
Outputs
Function library: LenzeToolbox FB is available as of library V02.05.xx.xx!
Runtime software licence:  Motion Control HighLevel  Motion Control TopLevel
Identifier/data type Information/possible settings
byIn1
...
byIn8
BYTE
Input signal 1 ... 8
dwSelect
DWORD
Selection of the input signal for the output to byOut
0 0
1 byIn1
2 byIn2
3 byIn3
4 byIn4
5 byIn5
6 byIn6
7 byIn7
8 byIn8
> 8 0
Identifier/data type Value/meaning
byOut
BYTE
Output signal
