5 Function blocks
5.178 L_TbMaskOut - zone masking
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Function
The parameterised blocking zones act in the same way on negative input signals:

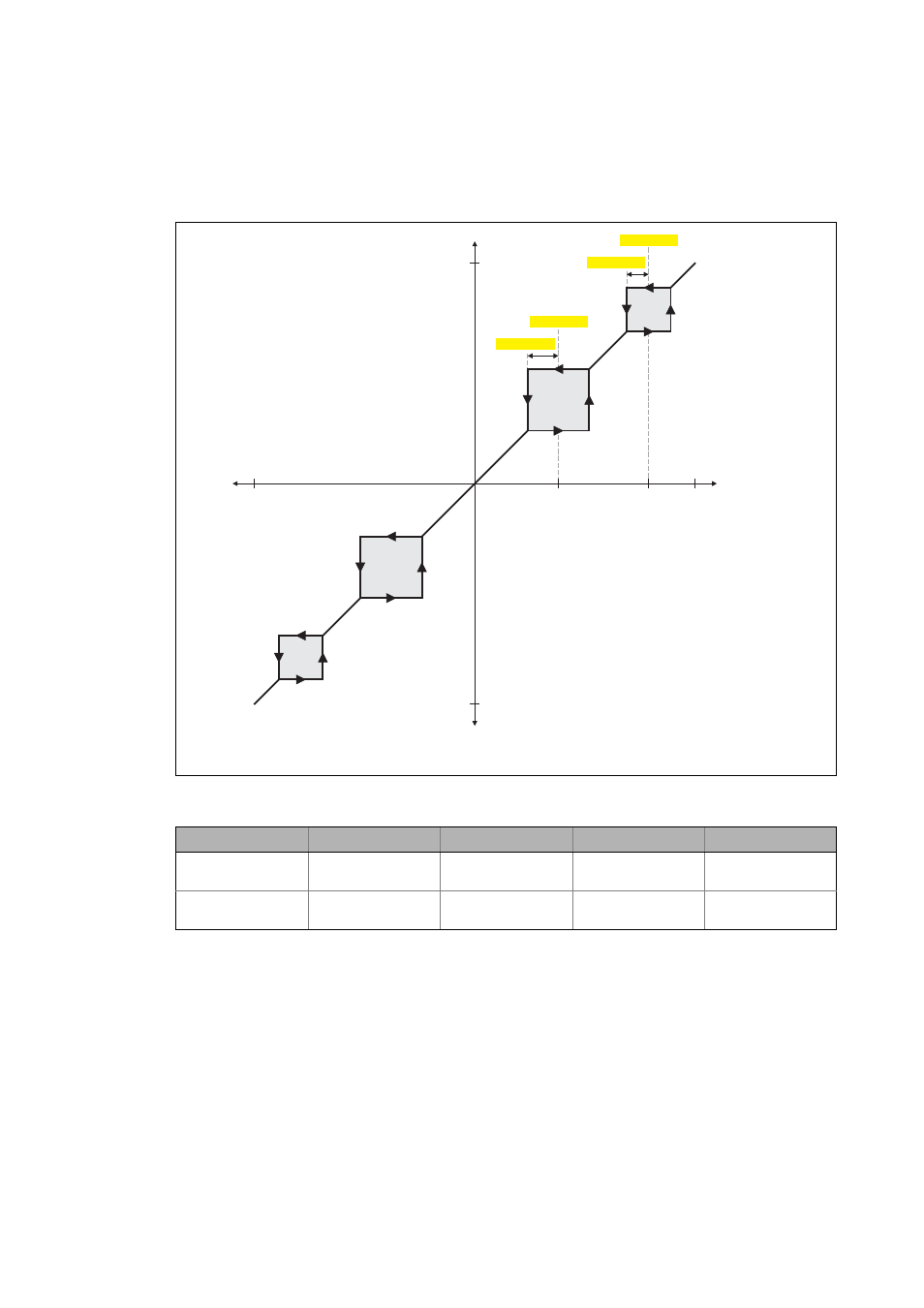

[5-146] Zone masking by means of parameterisable blocking zones
 Blocking zone 1
 Blocking zone 2
dnOutput_n [%]
dnInput_n
[%]
1
0
200
-200
-200 200
C04110/2
C04111/2
C04110/1
C04111/1
76 158
0
1
28 %
20 %
Parameter Blocking zone 1 Blocking zone 2 Blocking zone 3 Blocking zone 4
Mean value 76 %
(C04110/1)
158 %
(C04110/2)
0 %
(C04110/3)
0 %
(C04110/4)
Half width 28 %
(C04111/1)
20 %
(C04111/2)
0 %
(C04111/3)
0 %
(C04111/4)
