5.11 L_CamSyncIn - synchronous/oversynchronous clutch-in
192
Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Preconditions
The following conditions must be fulfilled for synchronous clutch-in:
1. The difference between the position of the touch probe sensor and the basic position of the tool
at standstill must be equal or greater than the difference between the basic function and the
starting function of the synchronous range:

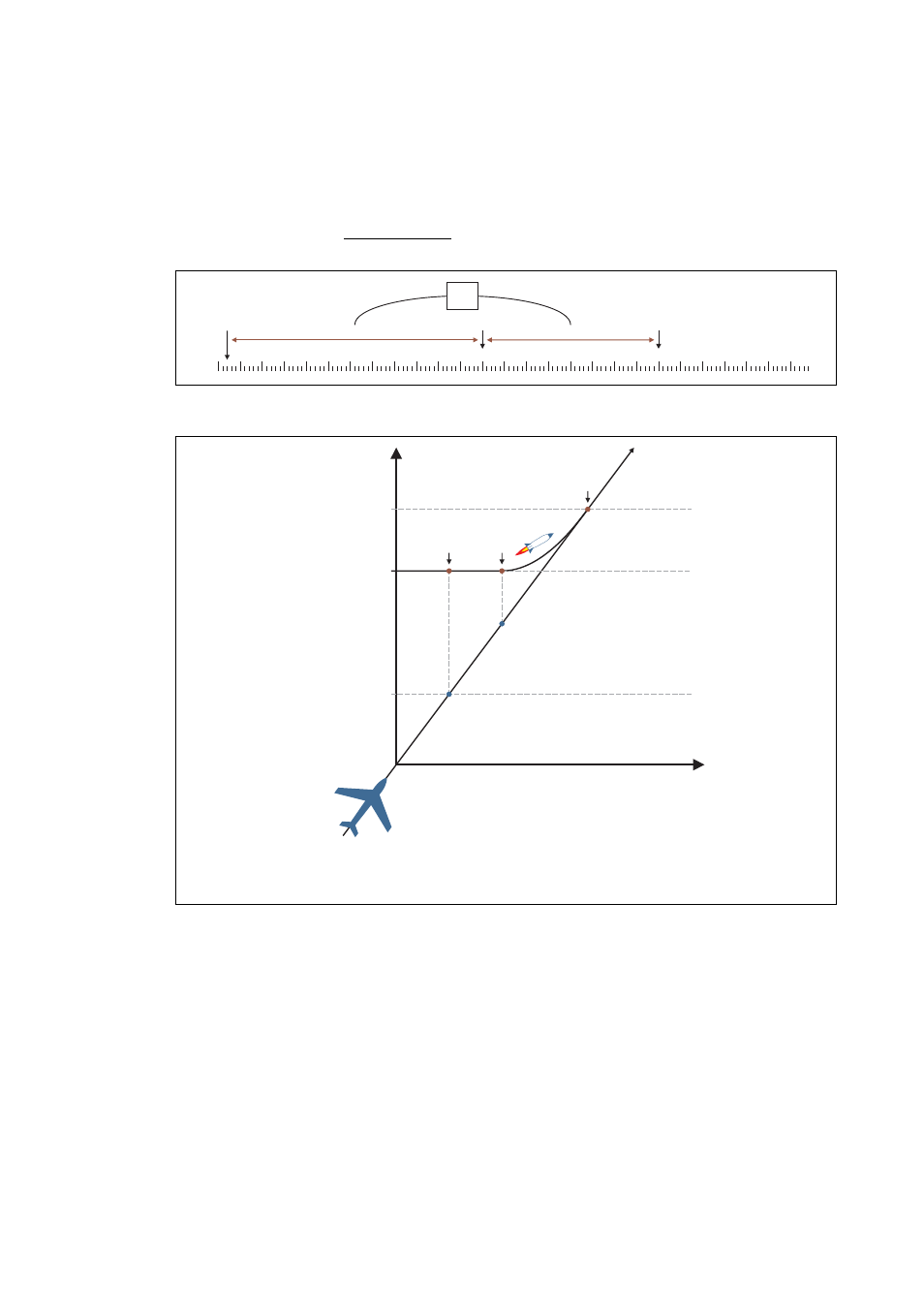

[5-27] Example: Distances of the individual positions
[5-28] Characteristics of positions for synchronous clutch-in
2. When bTpReceived or bManualSync are enabled, the resulting clutch-in time must not fall below
the minimum clutch-in time parameterised in C05603.
• The time refers to the reference speed when being reached and is thus reduced proportiona-
tely when the master speed is lower than the reference speed.
If the preconditions mentioned before are not fulfilled, clutch-in does not take place. The bError out-
put is set to TRUE and the cause of error is displayed bit coded in C05609.
dnTpPos_p dnOpenPos_p dnSyncPos_p
0 5000 10000 15000 20000 25000 30000 35000 40000 45000 50000 55000 60000 65000
29000 20000
³
 Mark-controlled start (touch probe detected)
 Acceleration phase starts  bAcc is set to TRUE
 Synchronicity reached  bSync is set to TRUE
dnSyncPos_p
dnOpenPos_p
dnTpPos_p
~TP
Œ 
Ž
Y
axis
X axis
