Function blocks

5.168

L_TbDifferentiate - differentiator with low-pass filter

584

Lenze · 9400 function library · Reference manual · DMS 6.7 EN · 08/2014 · TD05

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

5.168.2

Adapting the time reference

The dnOut output signal has the unit [1/s] as time reference.
The dnOut output signal can be adapted to the required unit by dividing the output signal by a cor-

responding scaling factor:

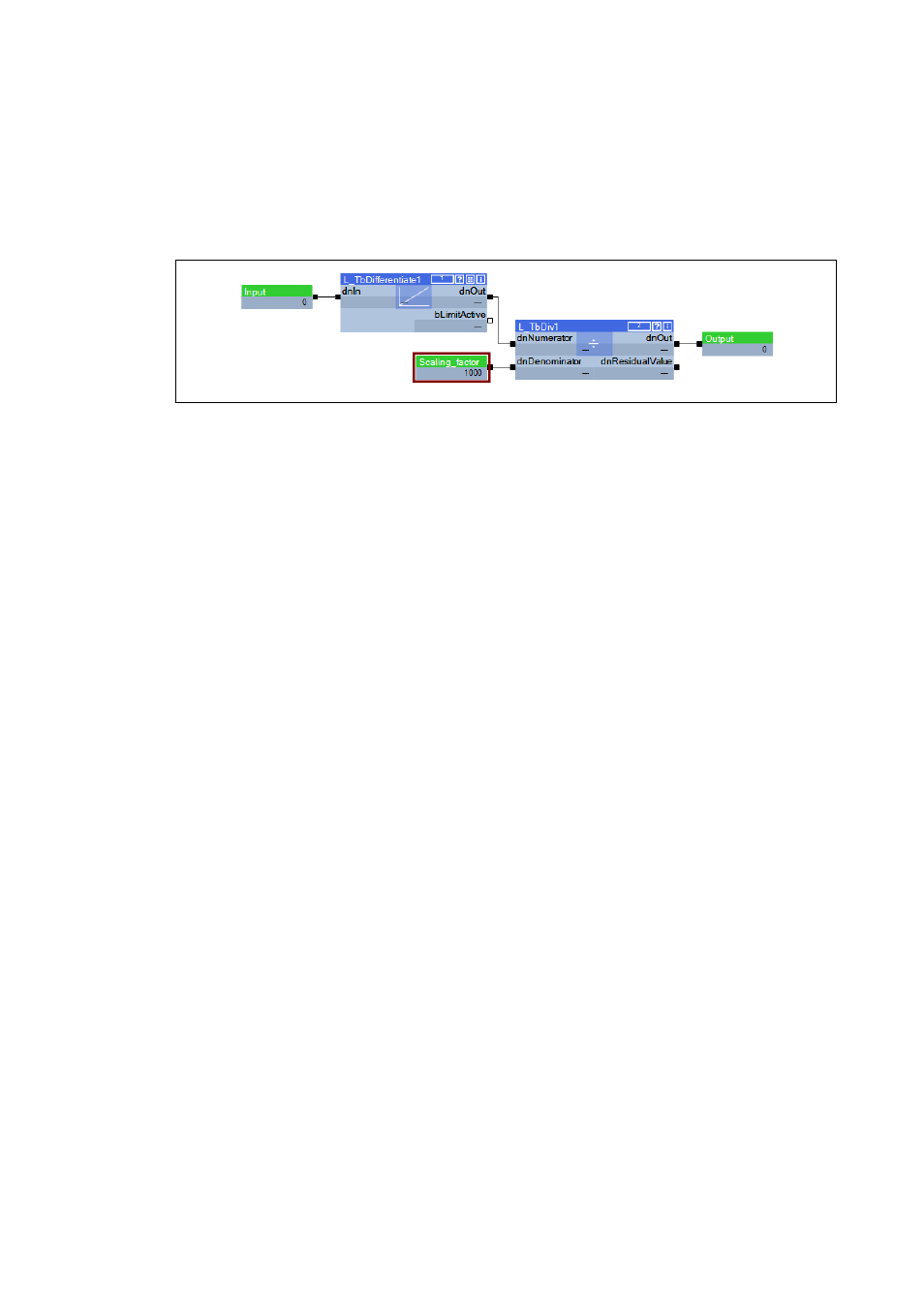

[5-142] Model connection for adapting the time reference

Example: Required unit of the signal Output = [1/ms]  scaling factor = 1000
