L_TbCurve - characteristic function
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
5.163.3
Characteristic mode 1: Symmetrically to y axis
If "Symmetrically to y axis" is selected in C04100, the resulting characteristic is mirrored along the y
axis in the I. and IV. quadrant.
Example

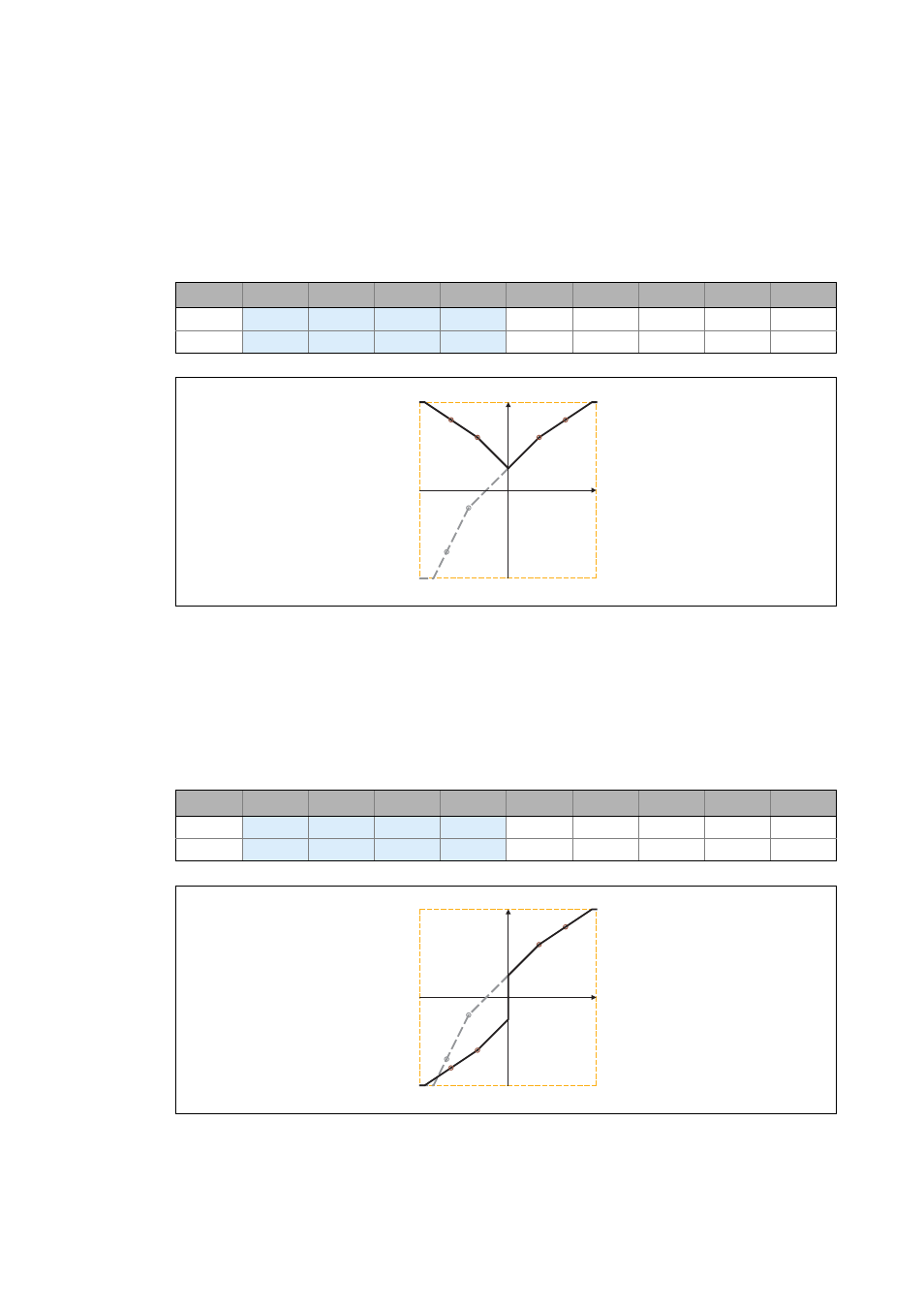

[5-129] Example: Characteristic in characteristic mode 1 (symmetrically to y axis)
5.163.4
Characteristic mode 2: Symmetrically to zero point
If "Symmetrically to zero point" is selected in C04100, the resulting characteristic is mirrored along
the zero point in the I. and IV. quadrant.
Example
[5-130] Example: Characteristic in characteristic mode 2 (symmetrically to zero point)
