9400 HighLine | Parameter setting & configuration
Drive interface
Controller commands
4.6.9 Activate/archive parameter set
In addition to the current parameter set, it is possible to store up to four additional
parameter sets (PS 1 ... PS 4) for each project in the memory module.
Using the corresponding controller commands, you can archive the current parameter set
settings in parameter sets PS 1 ... PS 4 and reactivate them, if required.
r This allows you to define different controller settings for an application, which can
easily be loaded by means of the corresponding controller command, if required.
Activate parameter set

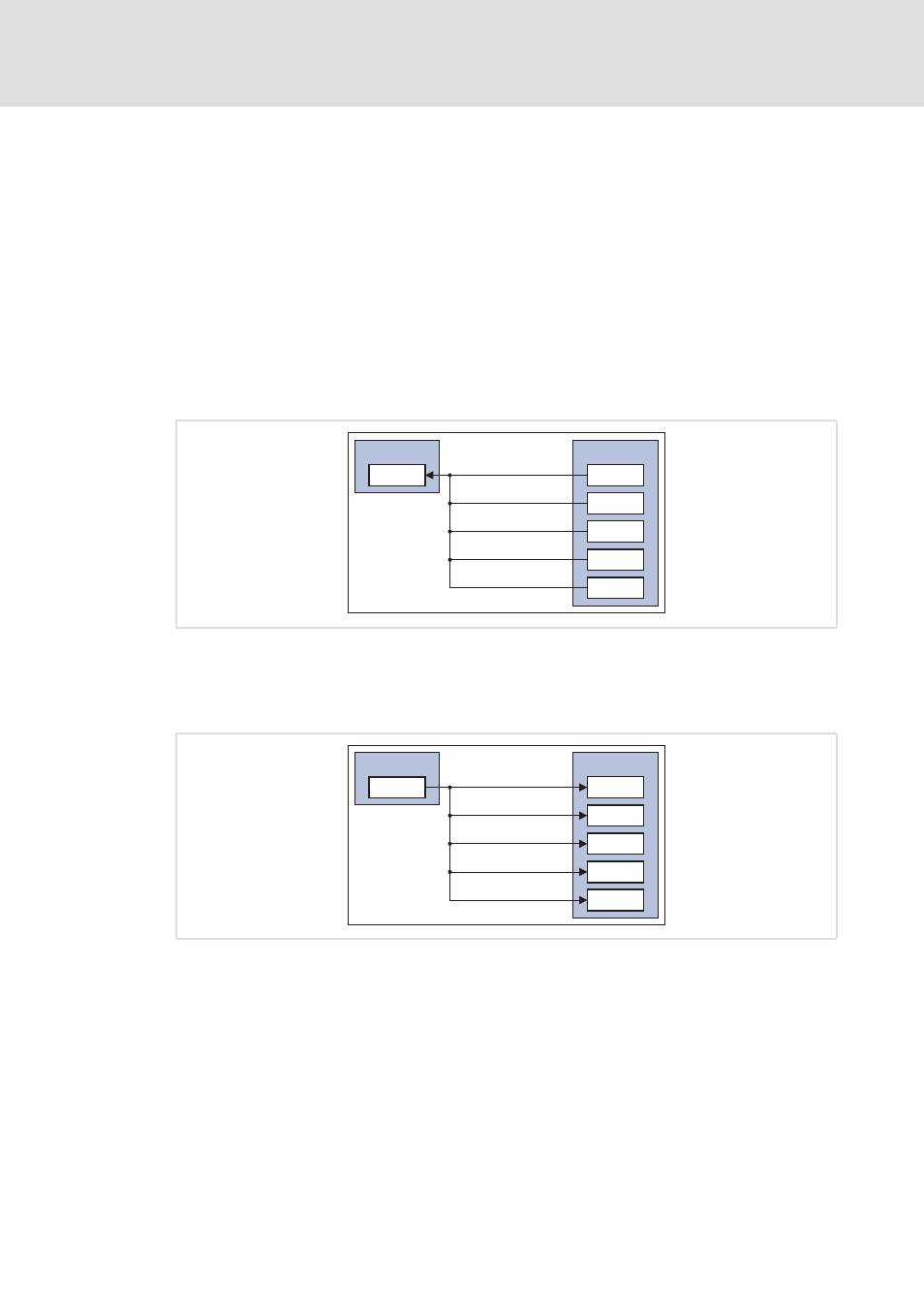

The following figure shows the controller commands which activate a parameter set on
the memory module (MM):
Archive parameter set
The following figure shows the controller commands which archive the current parameter
set:
PS
C00002 = 1
MM
9400
RAM
C00002 = 201
C00002 = 202
C00002 = 203
C00002 = 204
PS 2
PS 1
PS 3
PS 4
PS
PS PS
MM
9400
RAM
C00002 = 301
C00002 = 302
C00002 = 303
C00002 = 304
PS 2
PS 1
PS 3
PS 4
C00002 = 11
