9400 HighLine | Parameter setting & configuration
Standard TAs
TA "Actuator – speed" | Machine parameters
11.2.3 Machine parameters
O
Tip!
In the »Engineer« the most important machine parameters can be adapted to the
machine on the Application parameter tab directly in the topmost Overview dialog
level:
Detailed information for selecting and entering the machine parameters can be
found in the chapter " Drive interface ". Machine parameters
(C 35)

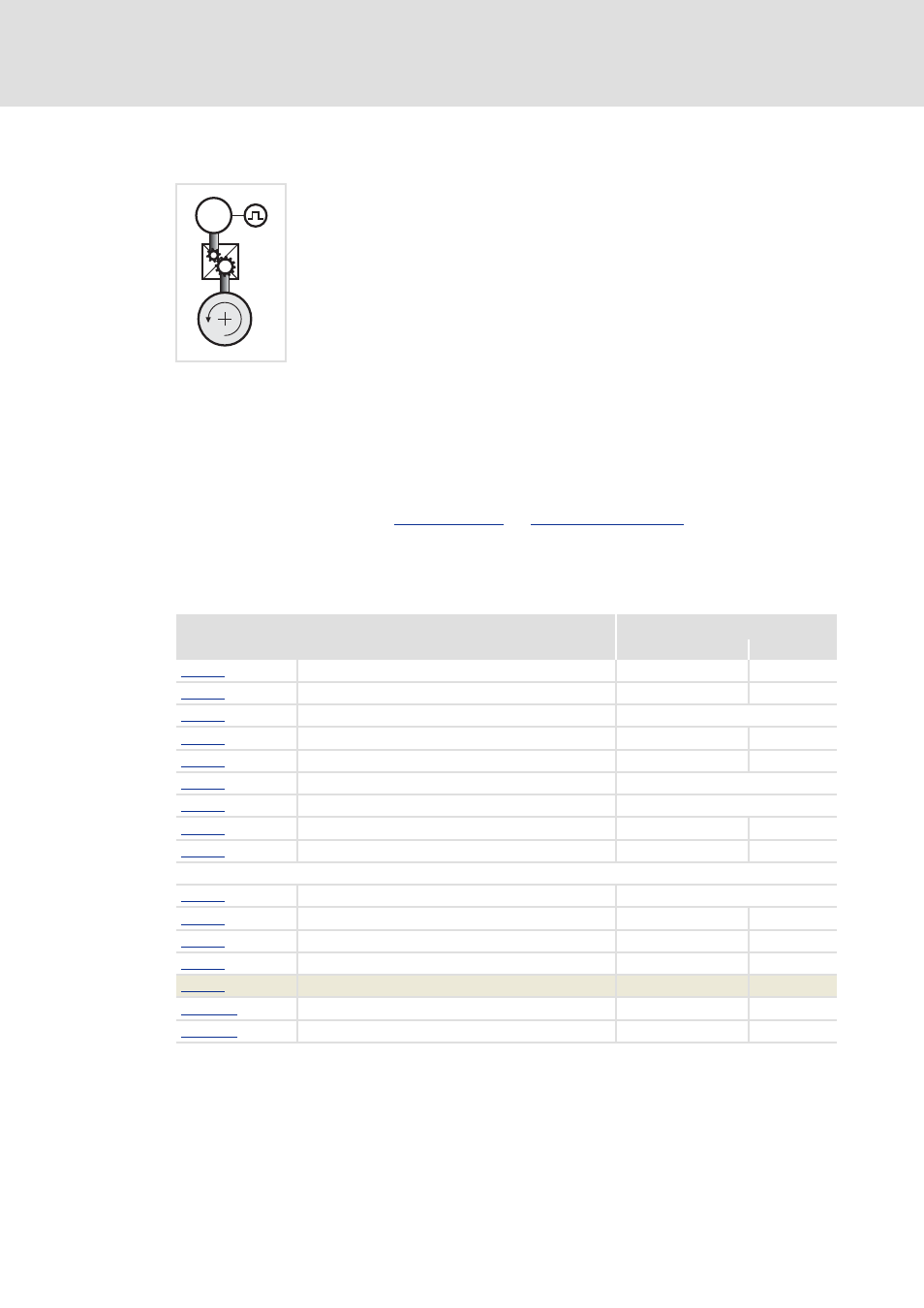

Short overview of machine parameters
The machine parameters describe e.g. the motor end of the mechanics
used.
The setting of the machine parameters in the »Engineer» is carried out on
the Application parameters tab in the dialog level Overview Drive
interface .
Parameters Lenze setting
Value Unit
C00173 Mains - voltage 400/415 V
C00174 Threshold undervoltage (LU) 285 V
C00600 Resp. to DC bus overvoltage Trouble
C02520 Gearbox fact. numer. motor 1
C02521 Gearbox fact. denom. motor 1
C02527 Motor mounting direction Motor rotating CW
C02570 Controller configuration Phase control
C02522 Gearbox fact. numer. load 1
C02523 Gearbox fact. denom. load 1
Description of the mechanics (load, tool)
C02528 Traversing range Unlimited
C02524 Feed constant 360.0000 Unit
C02525 Unit °
C02526 User-defined unit °
C02533 Time unit s
C00273/1 Motor moment of inertia Motor-dependent kg cm 2
C00273/2 Load moment of inertia 0.00 kg cm 2
