9400 HighLine | Parameter setting & configuration
TAs for positioning tasks
TA "Multi-purpose positioning" | Brake control
13.2.11 Brake control

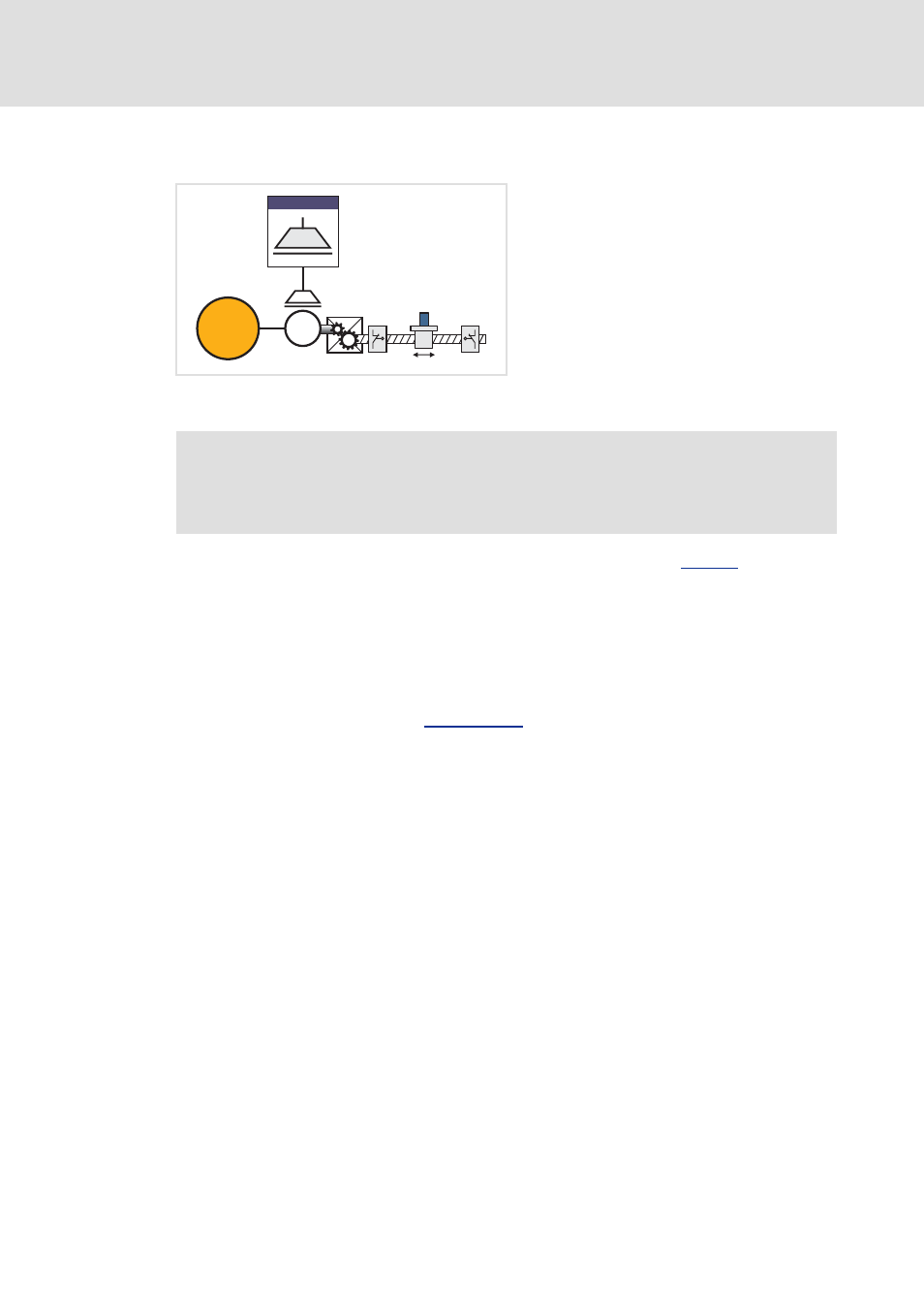

[13-17] Basic function "Brake control" (schematic diagram)
If the automatic operation (operating mode 2 or 12) is selected in C02580 , the brake is
controlled automatically, i.e. if the multi-purpose positioning or another basic function is
activated which causes the drive to traverse, the brake is opened automatically and the
operation is enabled.
O
Tip!
Detailed information on brake control can be found in chapter "Basic drive
functions" subchapter " Brake control ".
(C 211)
The basic function "Brake control" serves
to the wear free control and monitoring of
a holding brake.
In the simplest case, an optionally
available brake module is used.
Alternatively the holding brake can also be
controlled and monitored via the digital
inputs/outputs.
Status
machine
(basic drive
functions)
M
LS_Brake
Note!
In the Lenze setting the brake control is switched off to reach a safe status after
mains connection.
