9400 HighLine | Parameter setting & configuration
Oscilloscope
User interface
418 Firmware 1.37 - 09/2006
L
14.3 User interface
M
How to go to the oscilloscope user interface:
1. Go to Project view and select the 9400 HighLine controller.
2. Select the Oscilloscope tab from the Workspace.

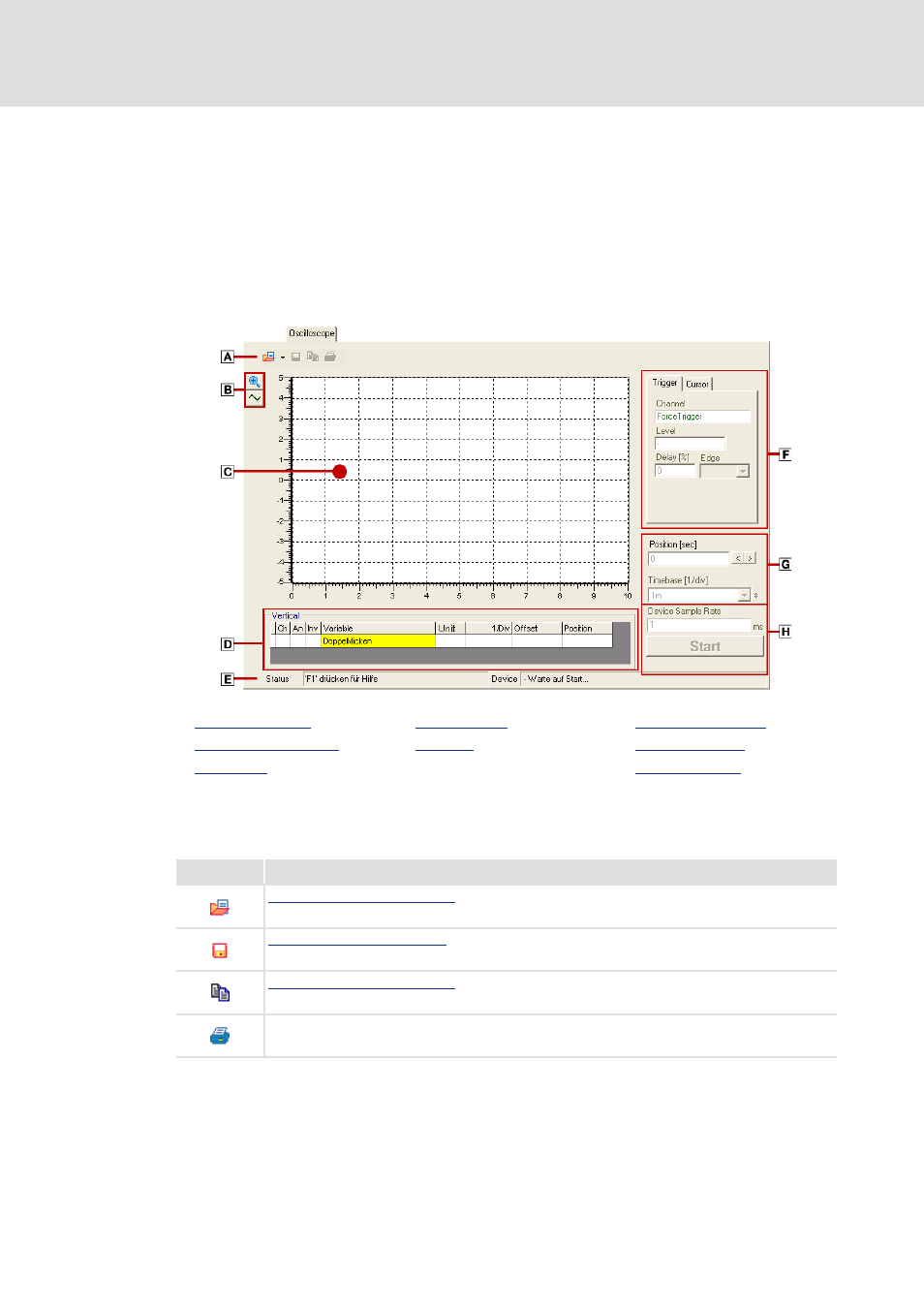

The oscilloscope user interface contains the following control and function elements:
14.3.1 Oscilloscope toolbar
Oscilloscope toolbar Vertical settings Trigger/cursor settings
Oscilloscope function bar Status bar Horizontal settings
Oscillograph Recording settings
Icon Function
Loading/importing a data record (C 428)
Saving/exporting a data record (C 427)
Copying data record to clipboard (C 430)
Print oscillogram
