9400 HighLine | Parameter setting & configuration
Technology applications (TAs)
Commissioning using the »Engineer«
10.2.3 Configure application
The interconnection of the technology application defined by Lenze is indicated on the FB-
Editor tab.
r The current values at the inputs and outputs are indicated in the online mode.
r If you click the Activate editor button, the defined interconnection can be changed.

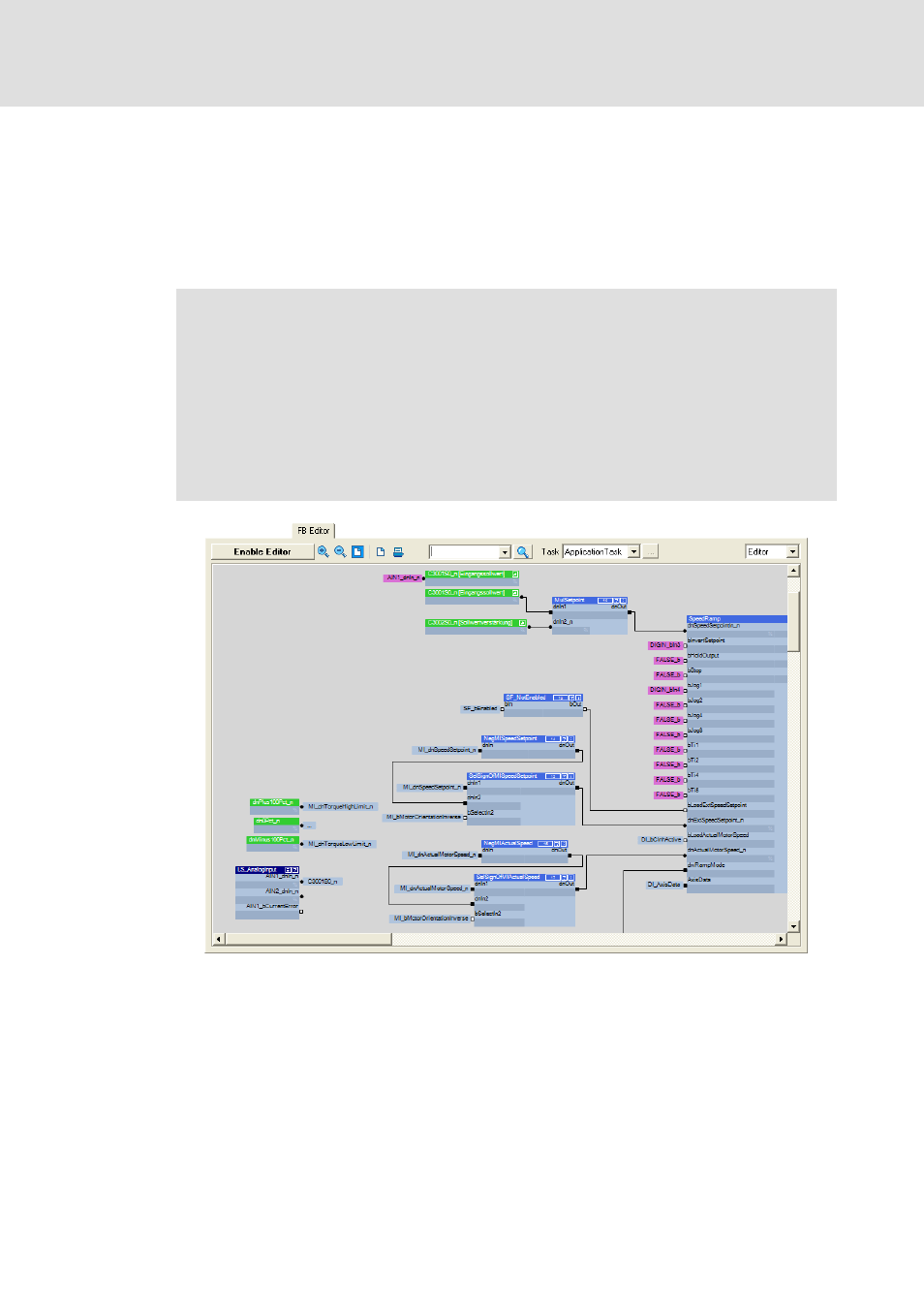

[10-3] Example: Representation of the interconnection of the technology application in the function block editor
O
Tip!
The online documentation for the »Engineer« contains detailed information on
how to use the function block editor.
Note!
The activation of the function block editor causes the parameter dialogs for the
technology application to be replaced by general dialogs. The dialogs for
parameter setting of the system and function blocks available in the
interconnection can continue to be used.
Moreover all multiplexers are removed from the interconnection and the
currently set signal combinations are replaced by configurable signal
combinations.
