Encoder evaluation
System block "LS_Feedback"

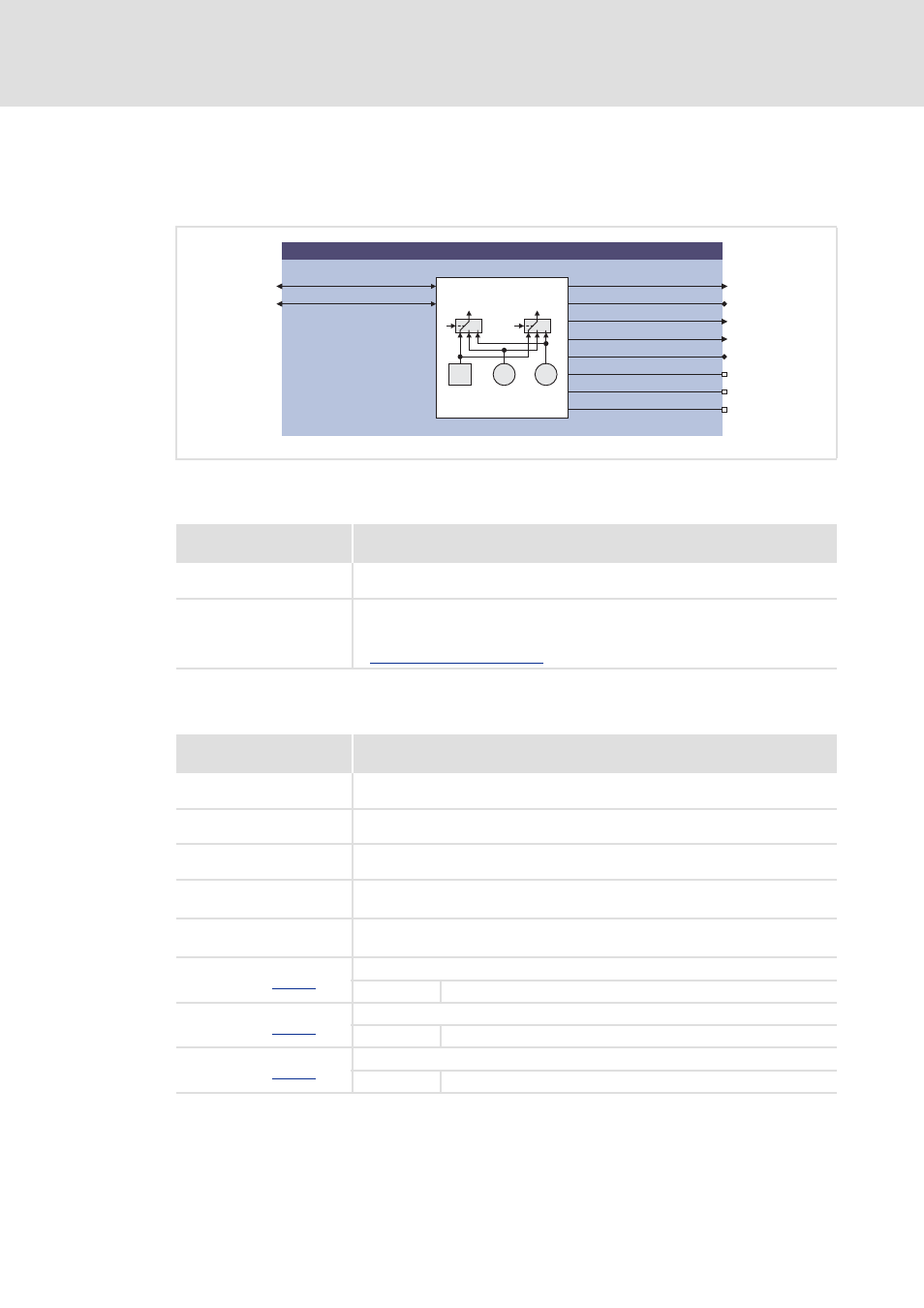

6.3 System block "LS_Feedback"
The system block LS_Feedback displays the encoder evaluation in the function block editor
d.
Inputs
Outputs
Input
Data type
Information/possible settings
FDB_dnPosOffset_p
DINT
Offset for position setpoint and actual position value in [increments]
FDB_dnActPosIn_p
DINT
External actual position value in [increments]
• For defining an external actual position value with corresponding position
control.
Use external position encoder. (C 114)
Output
DIS code | Data type
Value/meaning
FDB_dnActualPos_p
DINT
Current position of the load encoder in [increments]
FDB_dnActualSpeed_s
DINT
Current speed of the position encoder in [rpm]
FDB_dnPosFollowingError_p
DINT
Current following error in [increments]
FDB_dnSetPos_p
DINT
Set position calculated by active basic drive function in [increments]
• Considering the motor mounting position.
FDB_dnSetSpeed_s
DINT
Setpoint speed calculated by active basic drive function in [rpm]
• Considering the motor mounting position.
FDB_bResolverError
C02579/1 | BOOL
Status signal "Resolver error"
TRUE A resolver error (e.g. open circuit) has occurred.
FDB_bSinCosSignalError
C02579/2 | BOOL
Status signal "sin/cos encoder error"
TRUE A sin/cos encoder error has occurred.
FDB_bEncoderComError
C02579/3 | BOOL
Status signal "Encoder communication error"
TRUE An encoder communication error has occurred.
LS_Feedback
FDB_dnActualPos_p
FDB_dnActualSpeed_s
FDB_dnPosFollowingError_p
FDB_bResolverError
FDB_bSinCosSignalError
FDB_bEncoderComError
FDB_dnPosOffset_p
R G E
FDB_dnSetPos_p
FDB_dnSetSpeed_s
FDB_dnActPosIn_p
