Drive interface
Device states
4.5.5
State "Operation"
In this device state the motor follows its setpoint according to the selected basic drive
function.
4.5.6
State "Warning active"
This state can occur parallel to the device states "Device is ready to switch on", "Device is
switched on" and "Operation", if a monitoring is activated, the fault response "Warning"
has been parameterised for.
4.5.7
State "Warning locked active"
This state can occur parallel to the device states "Device is ready to switch on", "Device is
switched on" and "Operation", if a monitoring is activated which the fault response
"Warning locked" has been parameterised for.

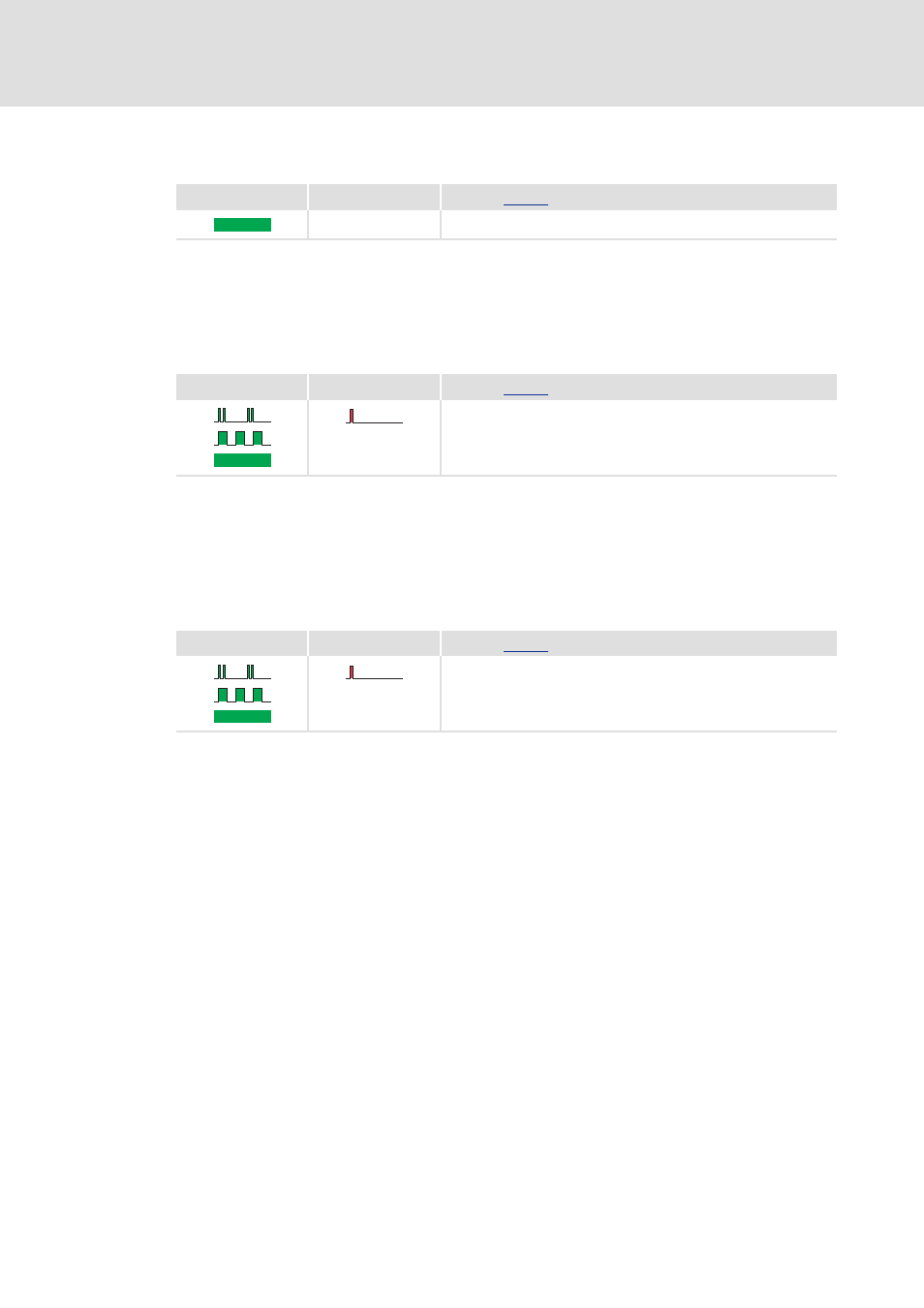

LED DRIVE READY
LED DRIVE ERROR
OFF
0: Operation
LED DRIVE READY
LED DRIVE ERROR
1: Operation/warning active
LED DRIVE READY
LED DRIVE ERROR
2: Operation/Warning locked active
