9400 HighLine | Parameter setting & configuration
Oscilloscope
Operation
Automatic scaling function
Use the automatic scaling function to automatically scale and reposition the
representation of selectable signal characteristics in the oscillograph and reset the offset
to "0".
M
How to carry out automatic scaling:
1. Go to the oscilloscope function bar and click the icon to activate the automatic
scaling function.
2. Select the channels/variables for automatic scaling in the Select variable dialog
box.
3. Click OK.
• The dialog box is closed and the selected channels/variables are scaled
automatically.

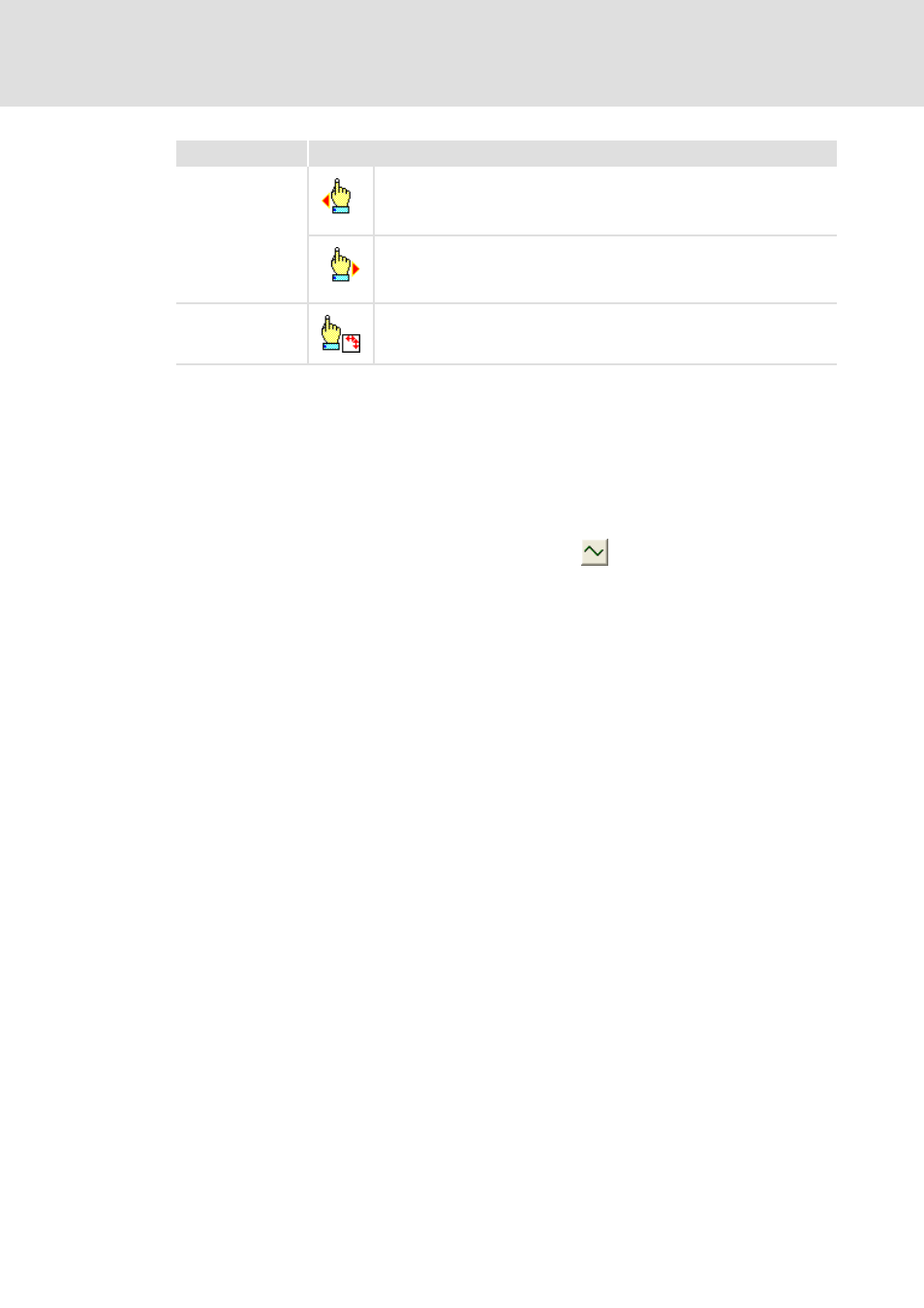

Vertical stretching Hold down the left mouse button and move the mouse pointer on the vertical
scale to the bottom to stretch the shown selection from the top.
• Moving the mouse pointer in opposite direction continuously reduces the
stretching.
Hold down the right mouse button and move the mouse pointer on the vertical
scale to the top to stretch the shown selection from the bottom.
• Moving the mouse pointer in opposite direction continuously reduces the
stretching.
Return to original
representation
Click the right mouse button in the oscillograph to return step-by-step to the
original representation.
Zoom function Procedure
