15.4 Monitoring
The controller includes different monitoring functions that protect the drive against
impermissible operating conditions.
r If a monitoring function responds,
– an entry will be made into the
Logbook of the controller,
– the response (quick stop by trouble, warning, fault, etc.) selected for the monitoring
function will be activated,
– the status of the internal device control changes according to the selected response,
controller inhibit is set, and the "DRIVE ERROR" LED on the front of the controller goes
on:
See also: LED status displays (C 34)
Device states (C 45)
15.4.1 Setting the error response
When a monitoring function is addressed, the response set for this monitoring function
(quick stop by trouble, warning, fault, etc.) will be activated.
r For many monitoring functions the response can be individually parameterised via
parameters.

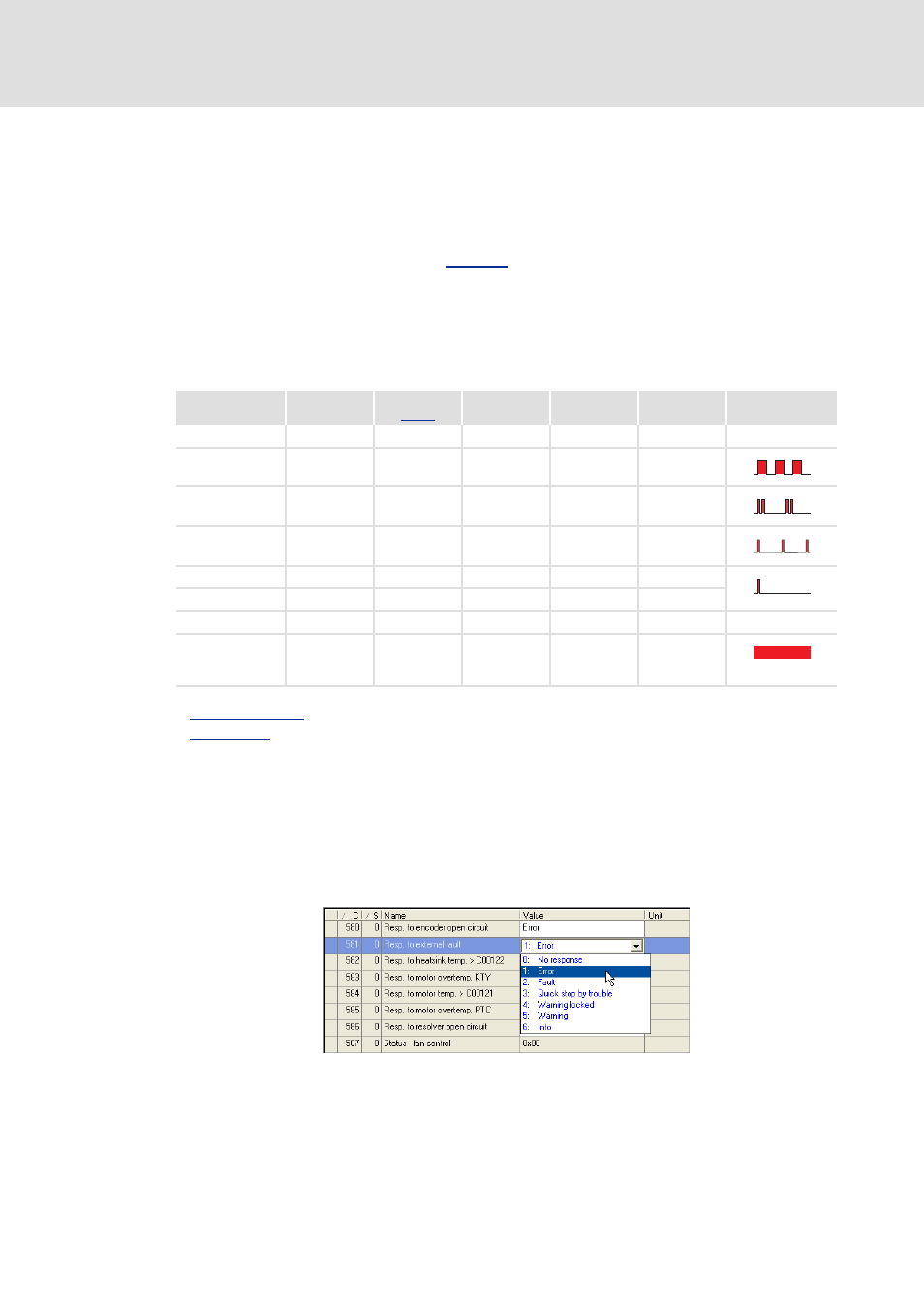

Response Logbook entry Display under
C00168
Pulse inhibit Controller inhibit Acknowledgeme
nt required
LED
"DRIVE ERROR"
None OFF
Fault ; ; ; ; ;
Trouble ; ; ; ;
(after 0.5 s)
Quick stop by
trouble
; ; ;
Warning locked ; ; ;
Warning ; ;
Information ; OFF
System error ; ; ; ; Mains
switching
is required!
