9400 HighLine | Parameter setting & configuration
Diagnostics & error analysis
Error messages of the operating system
444 Firmware 1.37 - 09/2006
L
15.6.1.1 Response
The status of the internal device control changes according to the selected response to an
error, controller inhibit is set and the "DRIVE ERROR" LED at the front of the controller goes
on:
15.6.1.2 Instance-ID
The instance-ID is dynamically assigned by the operating system.

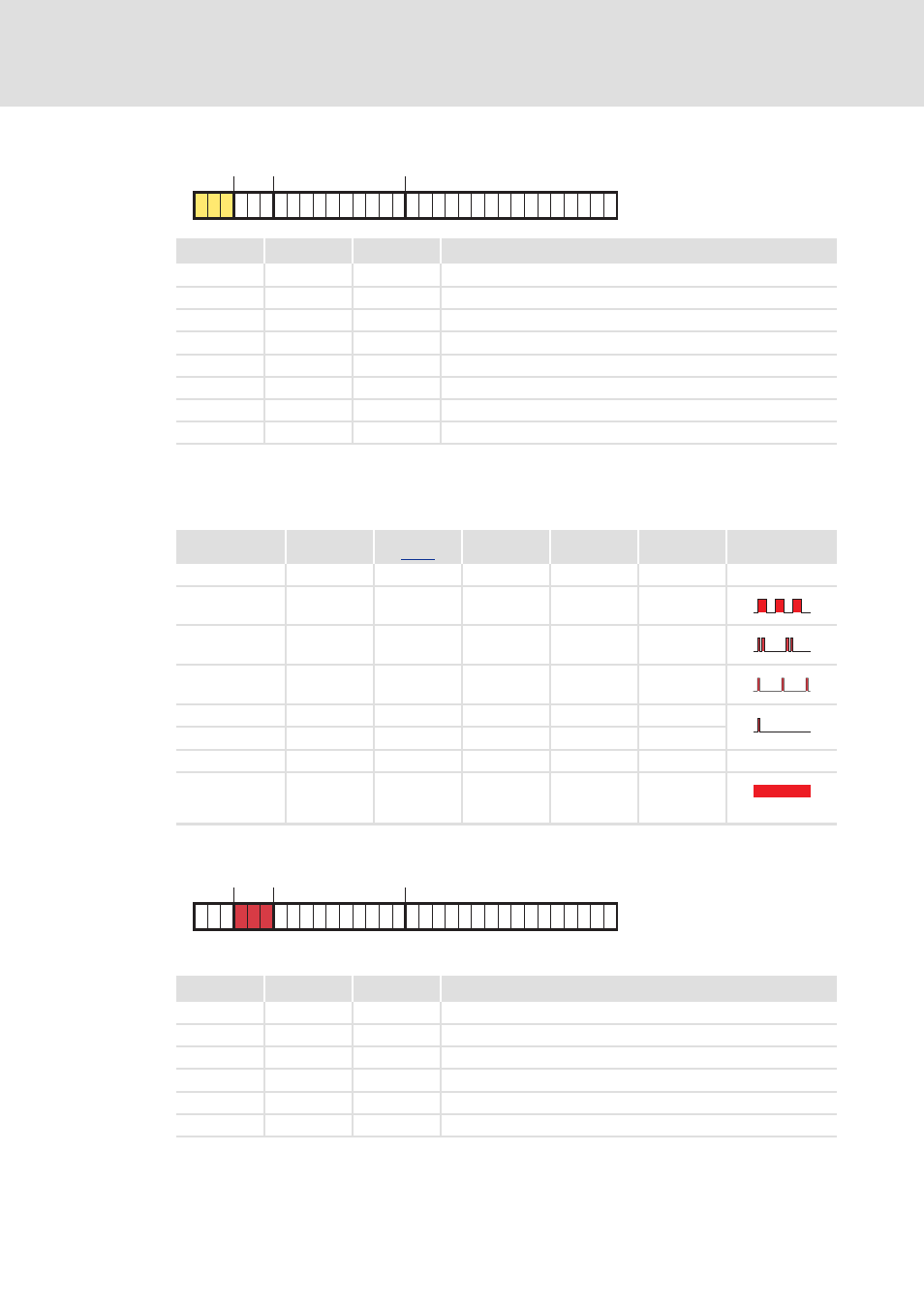

Bit 31 Bit 30 Bit 29 Response
0 0 0 0: No response
0 0 1 1: Fault
0 1 0 2: Trouble
0 1 1 3: Quick stop by trouble
1 0 0 4: Warning locked
1 0 1 5: Warning
1 1 0 6: Information
1 1 1 7: System error
Response Logbook entry Display under
C00168
Pulse inhibit Controller inhibit Acknowledgeme
nt required
LED
"DRIVE ERROR"
None OFF
Fault ; ; ; ; ;
Trouble ; ; ; ;
(after 0.5 s)
Quick stop by
trouble
; ; ;
Warning locked ; ; ;
Warning ; ;
Information ; OFF
System error ; ; ; ; Mains
switching
is required!
Bit 31 16 25 26 28 29 0 15
Bit 28 Bit 27 Bit 26 Meaning
0 0 0 Instance-ID 0
0 0 1 Instance-ID 1
0 1 0 Instance-ID 2
0 1 1 Instance-ID 3
1 0 0 Instance-ID 4
1 0 1 Instance-ID 5
Bit 31 16 25 26 28 29 0 15
