Firmware 1.37 - 09/2006 311
9400 HighLine | Parameter setting & configuration
TAs for interconnection via electrical shaft
TA "Electronic gearbox" | Operating mode "Electronic gearbox"
12.2.5.3 Master value trimming

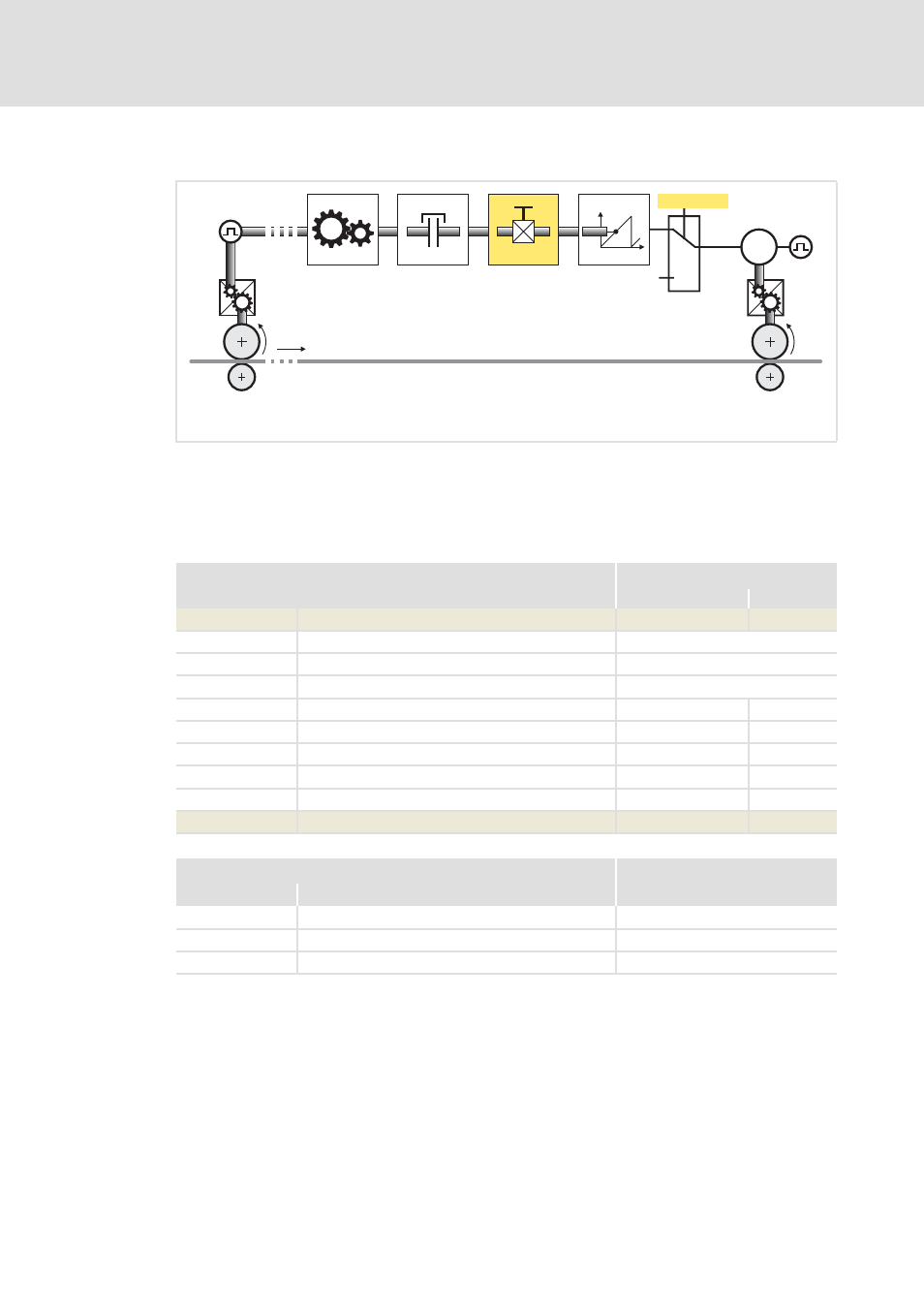

[12-15] "Master value trimming" function in the signal flow (schematic diagram)
This function serves to adjust the master value.
r Parameter setting: Tab Application parameter Dialog level Overview Electronic
gearbox Master value trimming
r Configuration: Tab FB editor FB Trimming
n Master value with clutch
o Master value with trimming
M
v
Slave
Real master/
Virtual master v
t
Dv
C03006 = 0
Œ 
Parameters Lenze setting
Value Unit
C03674 Master value with clutch - Unit/t
C03026 Activate trimming Deactivated
C03027 Positive trimming Inactive
C03028 Negative trimming Inactive
C03685 Positive speed 400.0000 Unit/t
C03686 Negative speed -200.0000 Unit/t
C03687 Acceleration ramp 1.000 s
C03688 Deceleration ramp 1.000 s
C03689 Disable ramp 1.000 s
C03690 Master value with trimming - Unit/t
Control inputs of the function Signal configuration
Lenze setting Control input (Multiplexer parameters)
C03026 Activate trimming C03058/15
C03027 Positive trimming C03058/17
C03028 Negative trimming C03058/18
