9400 HighLine | Parameter setting & configuration
TAs for positioning tasks
TA "Table positioning" | Assignment of the I/O terminals
414
Firmware 1.37 - 09/2006
L
13.3.2.2
Actual value and status signals

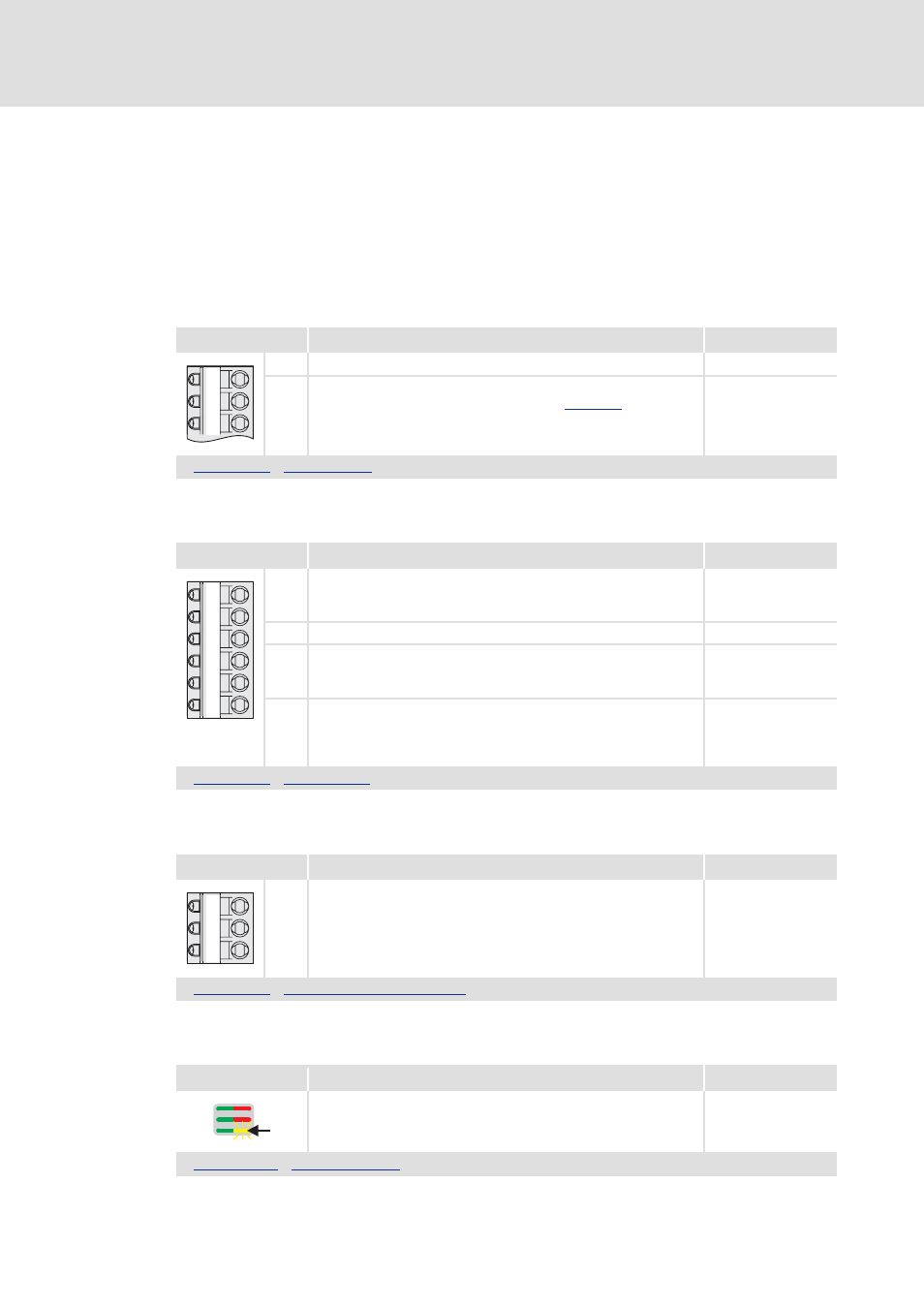

The following tables contain the Lenze assignment of the analog and digital outputs for
the technology application "Table positioning".
r
The default signal configuration if required can be easily changed by parameterising
the multiplexer parameters assigned.
Analog outputs
Digital outputs
State bus
Display elements
Terminal X3
Signal (Lenze setting)
Signal configuration
AO1
Scaled following error
C03110/1
AO2
Motor torque (setpoint)
• Scaling: ±10 V ≡ Motor reference torque (
C03110/2
I/O terminals Analog outputs (C 120)
Terminal X4
Signal (Lenze setting)
Signal configuration
DO1
Status "Drive ready"
• This operating state is active if the controller is enabled by setting
the digital input RFR to HIGH level and no error has occurred.
C03100/1
DO2
-
C03100/2
DO3
Status "Limitation active"
• At the moment a setpoint is limited or a software or hardware
limit switch has been reached.
C03100/3
DO4
Status "Error active acknowledgement is required"
• Monitoring with the error response "Error" or "Quick stop by
trouble" has been activated, and the controller is in the device
state "Error active" or "Quick stop by trouble active".
C03100/4
I/O terminals Digital outputs (C 125)
Terminal X2
Signal (Lenze setting)
Signal configuration
SB
Status "Error active acknowledgement is required"
• Monitoring with the error response "Error" or "Quick stop by
trouble" has been activated, and the controller is in the device
state "Error active" or "Quick stop by trouble active".
• The state bus is put in the "error" status.
C03100/5
I/O terminals Monitoring function "State bus" (C 127)
User LED
Signal (Lenze setting)
Signal configuration
Status "Positioning enabled"
C03100/6
Drive interface LED status displays (C 34)
GA
AO1
AO2
GO
24O
DO1
DO2
DO3
DO4
GE
24E
SB
