9400 HighLine | Parameter setting & configuration
I/O terminals
Digital outputs
126 Firmware 1.37 - 09/2006
L

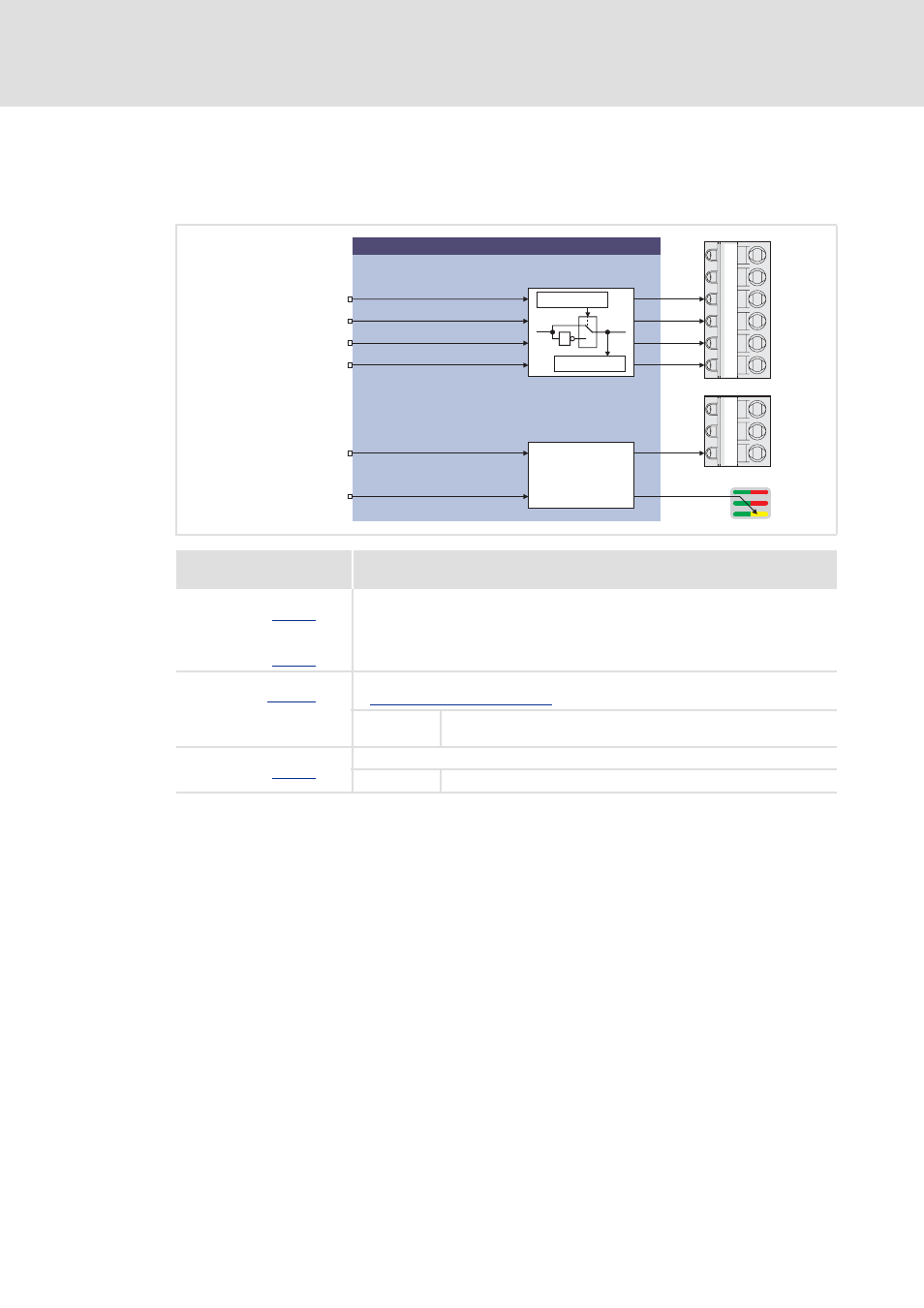

7.5.3 System block "LS_DigitalOutput"
The system block LS_DigitalOutput displays the interface to the digital outputs, the state
bus and the yellow user LED on the front of the controller in the function block editor.
Input
DIS code | Data type
Information/possible settings
DIGOUT_bOut1
C00444/1 | BOOL
...
DIGOUT_bOut4
C00444/4 | BOOL
Digital outputs 1 ... 4
DIGOUT_bStateBusOut
C00444/18 | BOOL
Setting the state bus to the status "Error"
Monitoring function "State bus" (C 127)
TRUE The state bus is set to LOW level, all devices connected to the state
bus start their pre-programmed response.
DIGOUT_bUserLED
C00444/9 | BOOL
Control of yellow user LED on the front of the controller
TRUE LED on
GO
24O
DO1
DO2
DO3
DO4
LS_DigitalOutput
DIGOUT_bOut1
DIGOUT_bStateBusOut
DIGOUT_bOut3
DIGOUT_bOut2
X4
1
0
1
C00118/1...4
DIGOUT_bOut4
DIGOUT_bUserLED
User LED
C00444/1...4
GE
24E
SB
X2
CONTROL
