Diagnostics & error analysis
Drive diagnostics with the »Engineer«
15
Diagnostics & error analysis
15.1
Drive diagnostics with the »Engineer«
With an online connection to the controller, you can use the »Engineer« to carry out a
diagnostics for the connected controller and get a clear visualisation of important
controller states:
r
Use the Reset error button to acknowledge an existing error message if the cause of the
error has been eliminated.
r
Use the Logbook button to display the logbook of the controller. For detailed
information about the logbook, please see the chapter "
M
How to carry out a drive diagnostics with the »Engineer«:
1. Select the 9400 HighLine controller to be diagnosed in the Project view.
2. Click the icon or select the command OnlineGo online to build up an online
connection with the controller.

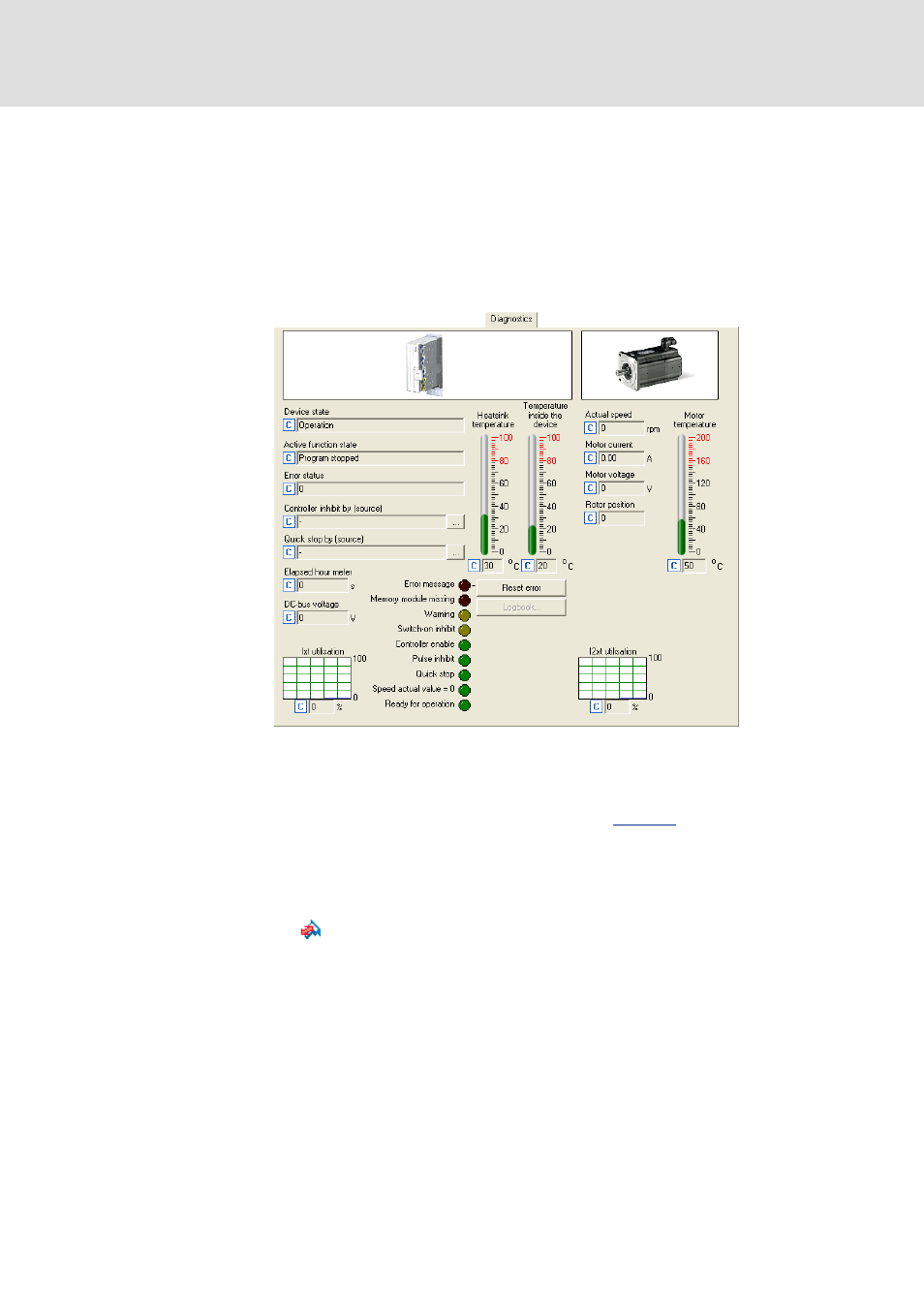

3. Select the Diagnostics tab.
• With an online connection, the Diagnostics tab displays current status
information about the controller.
