9400 HighLine | Parameter setting & configuration
Introduction
Communicating with the controller
4. Click Find controller path to find the controller in the selected bus system.

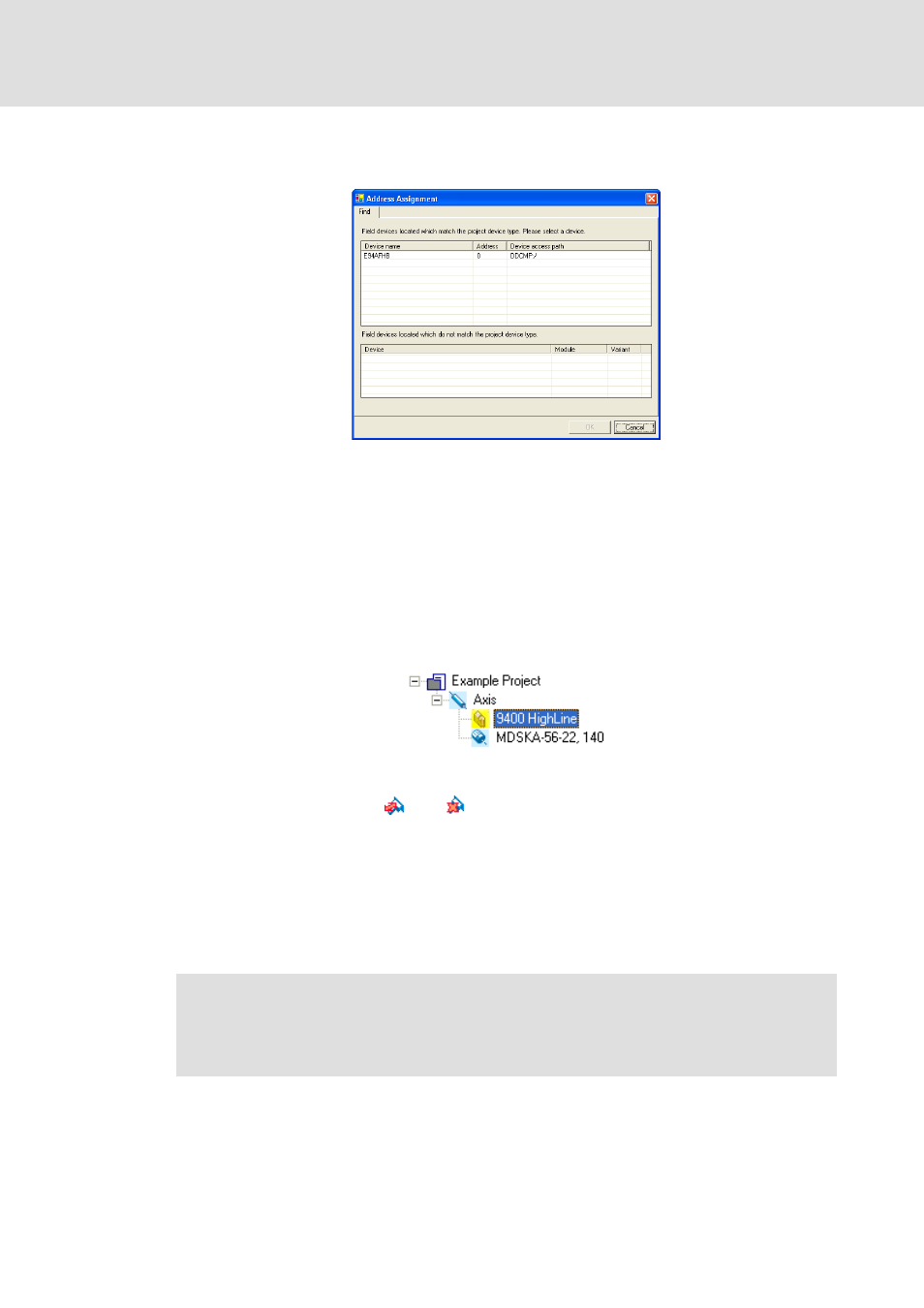

• The Address assignment dialog box appears:
5. Select the corresponding controller from the Identified field devices list field.
6. Click OK.
• The Address assignment dialog box is closed and the selected Controller access
path (e.g. "DDCMP:/") is indicated in the Assignment of offline controllers dialog
box.
7. Click Connect.
• The dialog box is closed and the online connection with the controller is built up.
• In the Project view, a yellow icon indicates the online connection with the
controller:
Now you can use the icons and to easily build up and end a connection with the
controller. The communication settings are only required when communication with a
controller is built up for the first time.
r If you want to change the existing configuration, select the command OnlineGo
online to open the Assignment of offline controllers dialog box and change the settings.
r With an online connection, the »Engineer« displays the current parameter settings of
the controller with a yellow background colour.
Stop!
If you change parameters in the »Engineer« while the controller is connected
online, the changes will be directly accepted by the controller!
