9400 HighLine | Parameter setting & configuration
Diagnostics & error analysis
Drive diagnostics via keypad/bus system
434 Firmware 1.37 - 09/2006
L
15.2 Drive diagnostics via keypad/bus system
Keypad display of the controller state
Display parameters
Via the parameters listed in the following tables current states and actual values of the
controller can be queried for diagnostic purposes, e.g. by using the keypad, a bus system or
the »Engineer« (with an online connection to the controller).
r These parameters are listed in the »Engineer« parameter list and the keypad in the
Diagnostics category.
r For a detailed parameter description, please see the chapter " Parameter reference ".
(C 537)

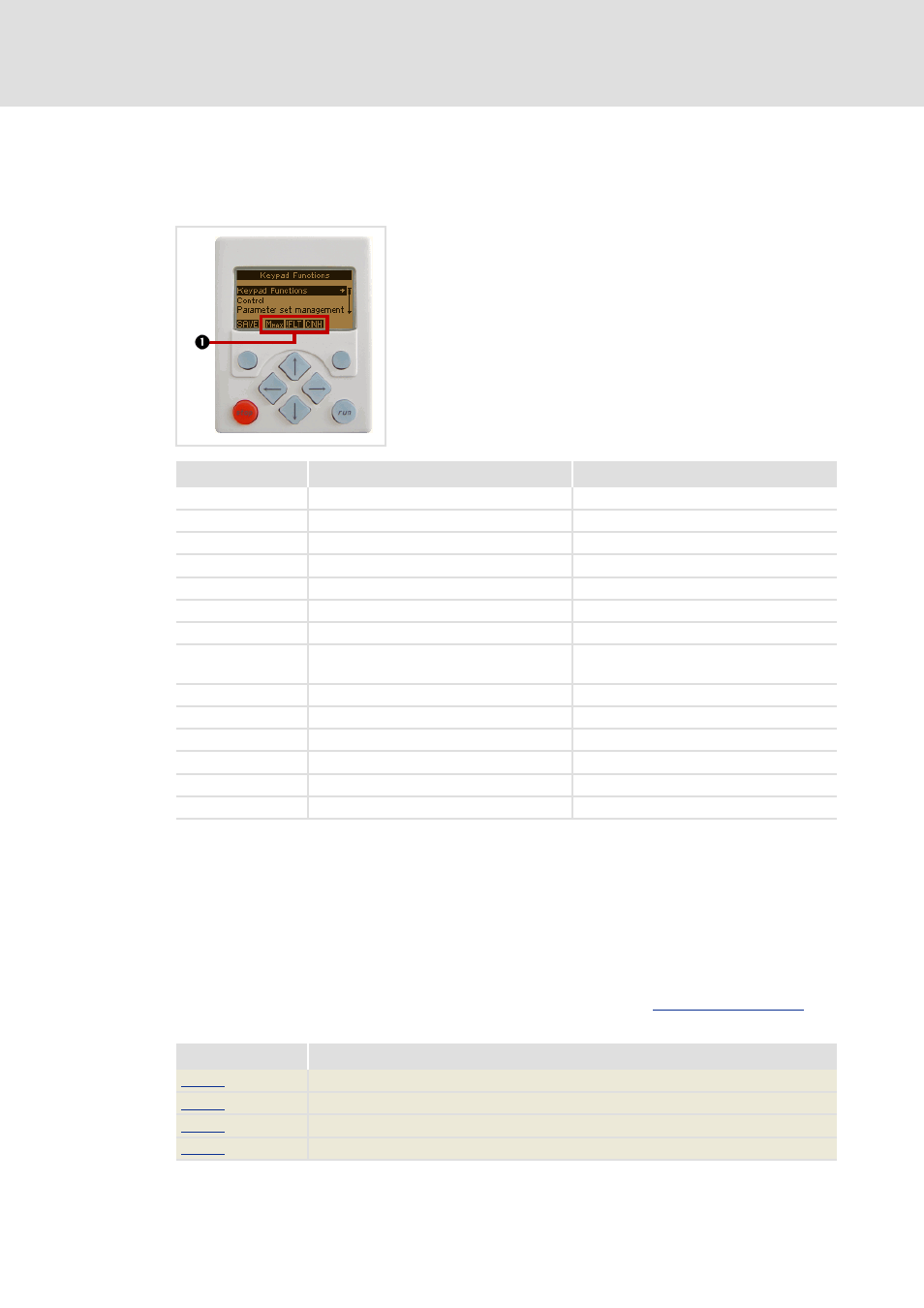

r When the keypad at the front of the controller is
connected to the diagnostic interface X6, the status of
the controller is displayed via different symbols on the
LDC display in the area n.
Icon Meaning Note
b Controller is ready for operation.
f Controller is enabled.
g Application in the controller is stopped.
h Quick stop is active
i Controller is inhibited. The power outputs are inhibited.
` Controller is ready to start.
j Speed controller 1 in the limitation. The drive is torque-controlled.
k Set current limit has been exceeded in motor
or generator mode.
l Pulse inhibit is active The power outputs are inhibited.
Z System fault is active
Y Fault is active
[ Trouble is active
\ Quick stop by trouble is active
] Warning is active
Parameters Display
C00183 Device state
C00168 Error number
C00051 Actual speed
C00052 Motor voltage
