9400 HighLine | Parameter setting & configuration
TAs for interconnection via electrical shaft
TA "Electronic gearbox" | Basic signal flow
298 Firmware 1.37 - 09/2006
L
12.2.1 Basic signal flow

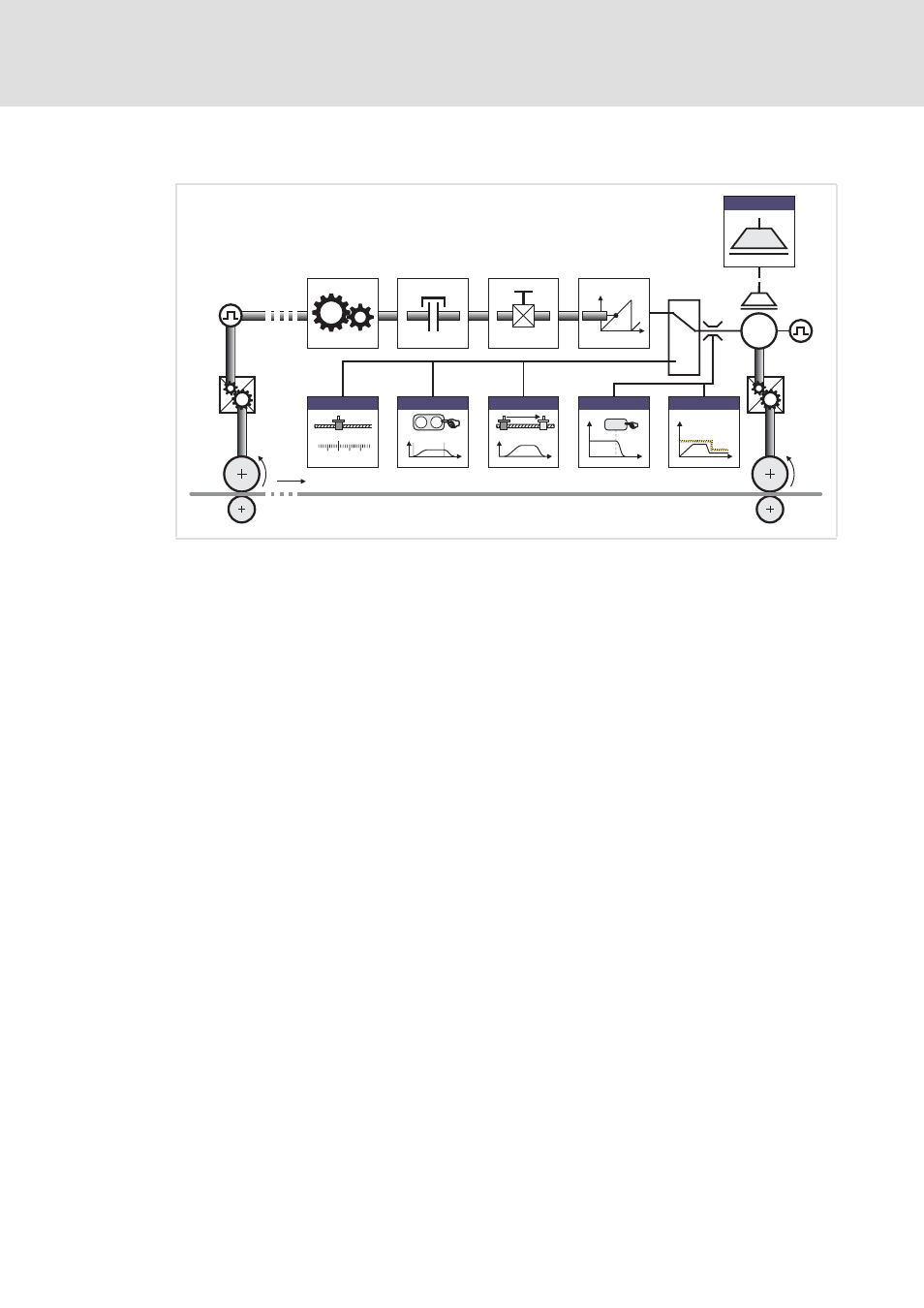

[12-9] Signal flow of the TA "Electronic gearbox" (schematic diagram)
Functions in the operating mode "Electronic gearbox"
Master value processing with stretch factor
Virtual clutch
Master value trimming
Setpoint conditioning
Basic drive functions
Homing
Manual jog (inching)
Position override function
Quick stop
Limiter (optional)
! Brake control (optional)
v
t
Dv
M
v
Slave
LS_ManualJog
n
t
и з
n
t
LS_Positioner
0 -100 100 200
LS_Homing
4 5 6
LS_Brake
n
t
LS_Limiter
n
t
LS_Quickstop
STOP
7 8
9
Real master/
Virtual master
0 1 2 3
