9400 HighLine | Parameter setting & configuration
Technology applications (TAs)
Commissioning using the »Engineer«
238 Firmware 1.37 - 09/2006
L
Changing signal combinations via the parameters setting interface

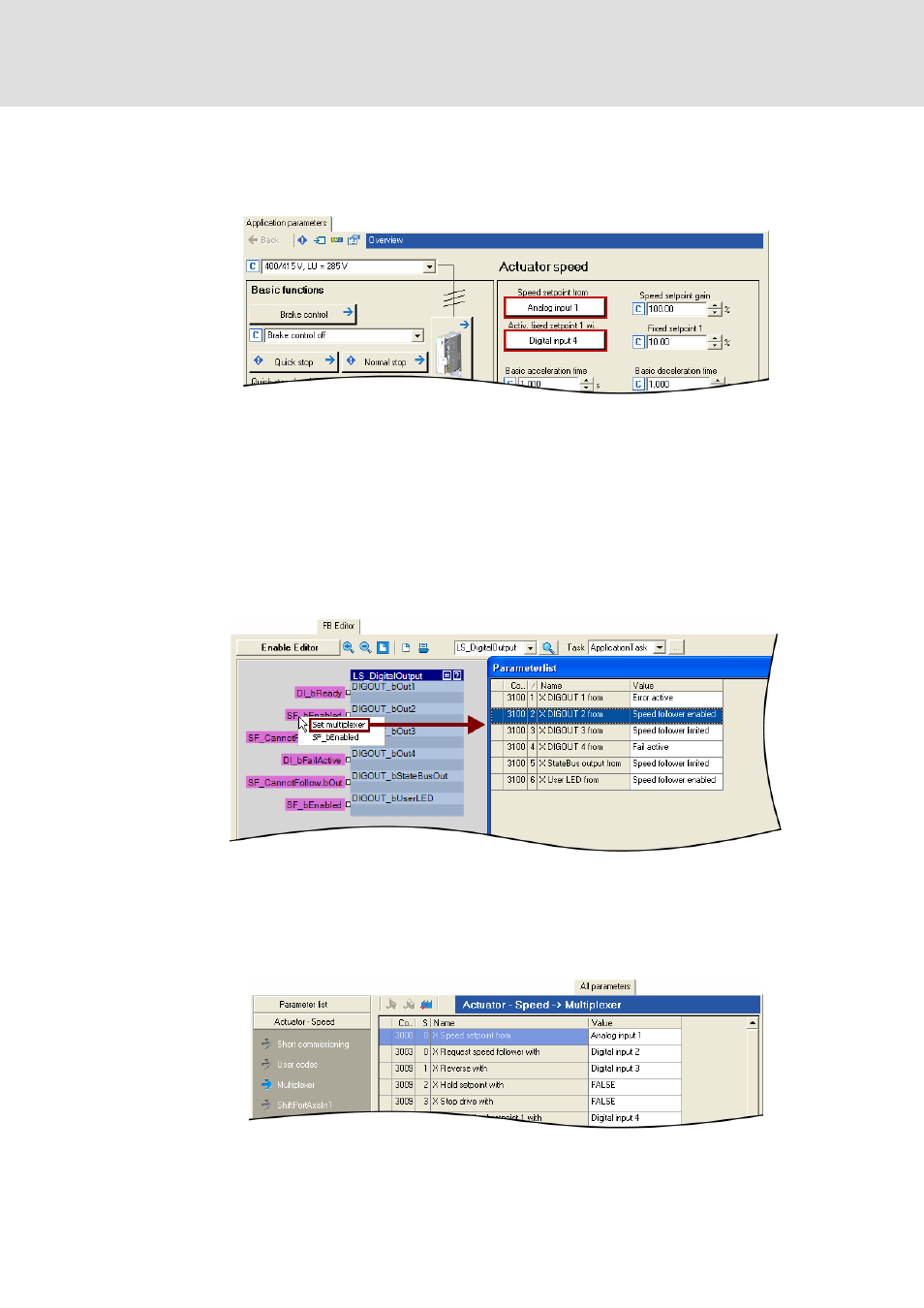

On the Application parameter tab all parameterisable signal combinations are marked by
white buttons.
r If you press one of such buttons, the I/O configuration for... dialog level is displayed via
which another signal source can be selected.
Changing signal combinations in the function block editor
In the function block editor parameterisable signal combinations are marked by the
background colour Cyan.
r If the command Set multiplexer is selected from the context menu (right mouse
button) for the signal source, all multiplexer parameters available are displayed in a
parameter list and can also be changed here:
Changing signal combinations via the parameter list
If you go to the All parameters tab and select the subcategory Multiplexer as technology
application, all multiplexer parameters available are displayed in the parameter list and
can also be changed here:
