9400 HighLine | Parameter setting & configuration
Introduction
Communicating with the controller
2.2 Communicating with the controller
The following interfaces/communication modules can be used to build up communication
between PC and controller:
r Diagnostic interface X6/ Going online via diagnostic adapter
r CAN on-board interface/ Going online via system bus (CAN on board)
(C 24)
r Optional interfaces provided by corresponding communication modules in the module
receptacles MXI1/MXI2 of the controller.
O
Tip!
Detailed information about the individual interfaces can be found in the
corresponding Communication Manuals.

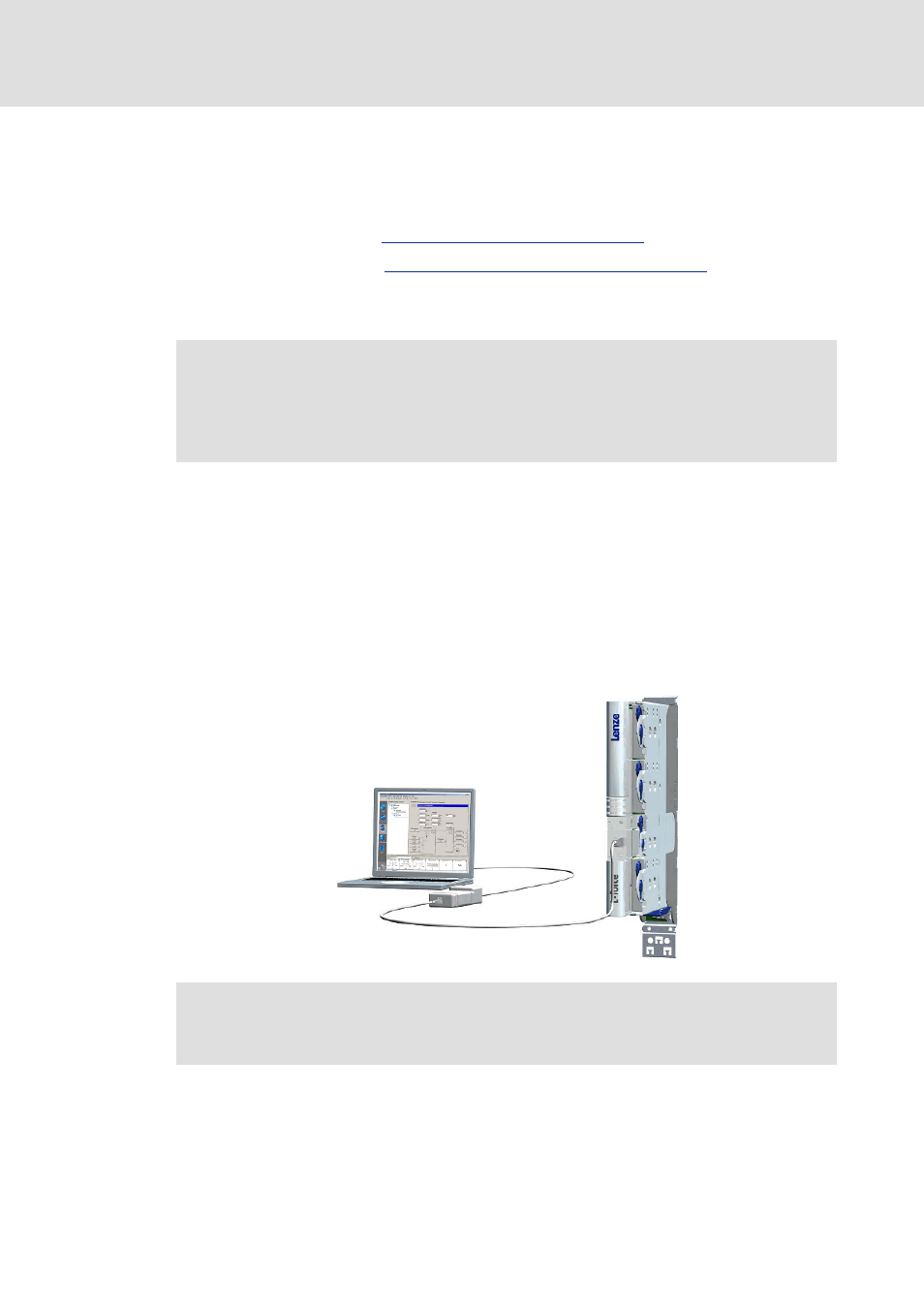

2.2.1 Going online via diagnostic adapter
For the initial commissioning of the controller, you can use, for instance, the diagnostic
adapter offered by Lenze:
Note!
For communication with the controller, at least the control electronics of the
controller must be supplied with 24 V low voltage via plug X2. For detailed
information, please see the Mounting Instructions for the controller.
Note!
Please observe the documentation for the diagnostic adapter!
