Firmware 1.37 - 09/2006 345
9400 HighLine | Parameter setting & configuration
TAs for interconnection via electrical shaft
TA "Synchronism with mark synchronisation" | "Synchronism" mode"
12.3.5.1 Master value processing

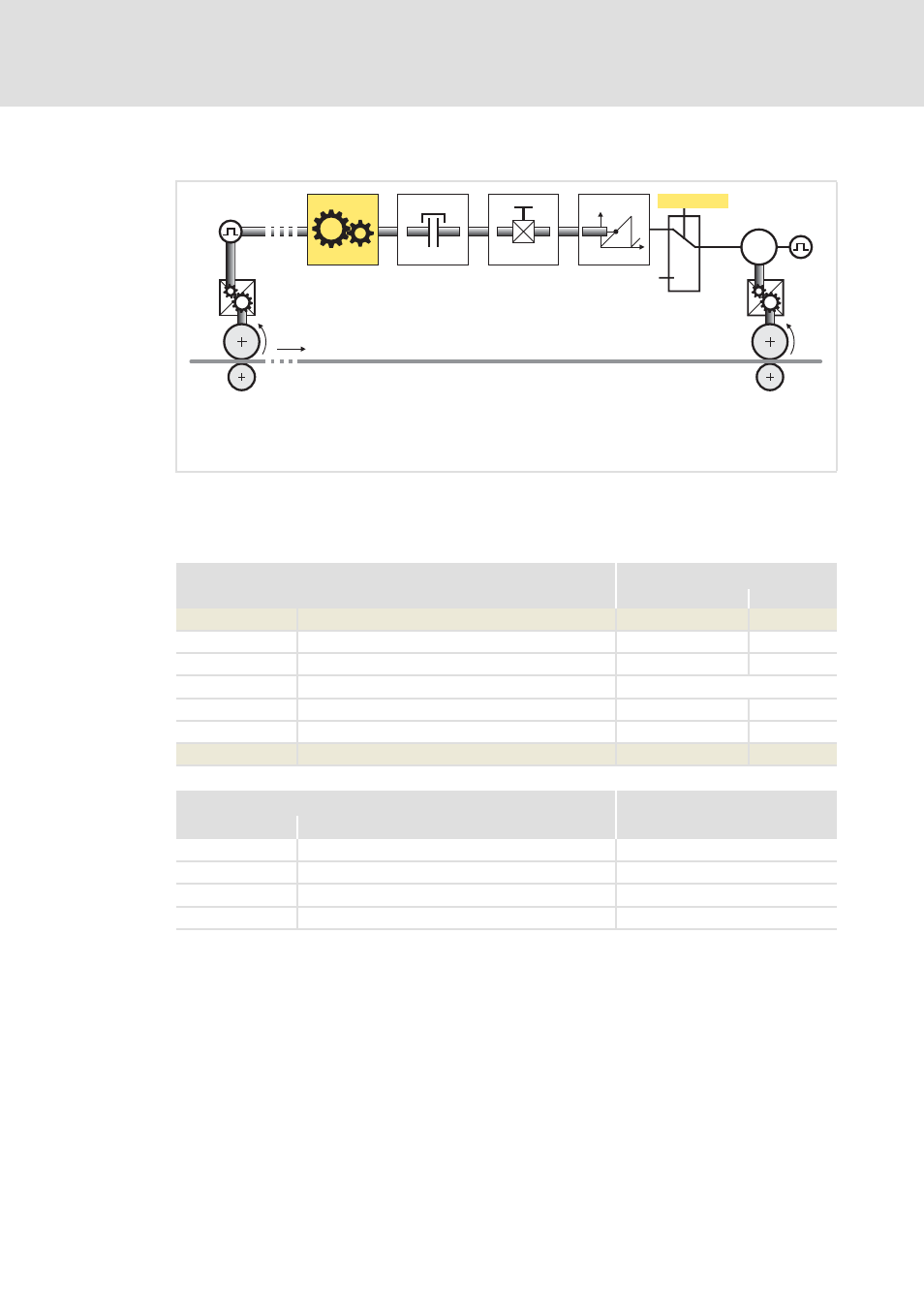

[12-27] "Master value processing" function in the signal flow (schematic diagram)
r Parameter setting: Tab Application parameter Dialog level Overview Synchronism
Master value conditioning
r Configuration: Tab FB editor FB ElectricalShaftVal
n Master value
o Master value with stretch factor
M
v
Slave
Real master/
Virtual master v
t
Dv
C03006 = 0
Œ 
Parameters Lenze setting
Value Unit
C03587 Master value - Unit
C03000 Stretch factor - numerator 1000000000
C03001 Stretch factor - denominator 1000000000
C03025 Master value - direction of rotation Not inverted
C03034 Starting position 0.0000 Unit
C03938 Master value cycle (register) 360.0000 Unit
C03672 Master value with stretch factor - Unit
Setpoint inputs of the function Signal configuration
Lenze setting Setpoint input (Multiplexer parameters)
DIGIN CINH Set starting position of master shaft C03058/11
C03034 Master shaft starting position C03053/1
C03000 Stretch factor - numerator C03050/1
C03001 Stretch factor - denominator C03050/2
