Chapter 2 Wiring

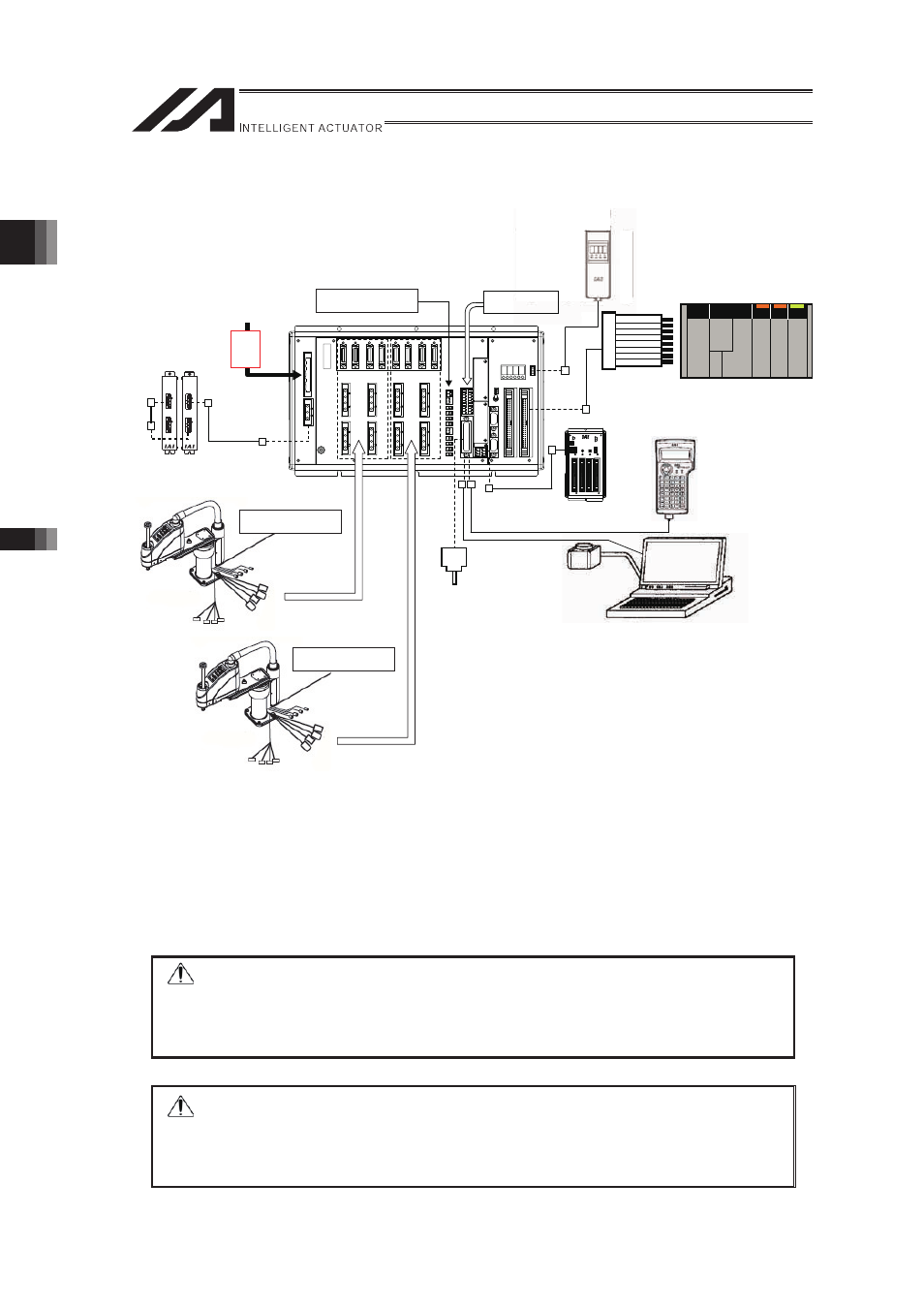

2.1.6 XSEL-SXD
74
2.1.6 XSEL-SXD
�
Flat Cable
24V power supply
Regeneration
Resistor Unit (Note 1)
24V power supply
Regeneration
Resistor Unit (Note 1)
Power Supply
3-phase or
Single-phase
AC200V
Safety Circuit 24V power supply
Power Supply for
Brake (Note 1) (Note 2)
Panel Unit
(Option)
Teaching Pendant
(Option)
Extension I/O Unit
(Option)
PC (Note 1)
PC Software
(Option)
Drive
Cutoff
Circuit
(Note 1)
(Note 4)
Extension I/O Unit
(Option)
Panel Unit
(Option)
Regeneration Unit
(Option)
Dummy Plug
(DP-2) (Note 3)
�
�
�
Note 1 Please prepare separately.
Note 2 For the SCARA robots except for IX-NNN1205/1505/1805, the power supply of
+24V for the the controller is required.�
Note 3 When the unit is not connected to the personal computer or teaching pendant,
connect the dummy plug (DP-2).
Note 4� Refer to 8.1 for the compliance with Safety Categories.�
�
�
Warning: In the case PC is connected to XSEL-S, internal components of the
controller may get burned down if the following cable is used.
Standard PC cable B-ST-E1MW050 (black) enclosed in PC Software
IA-101-X-MW Even though the PC software can be used, use
CB-ST-A1MW050 (gray) for the cable. �
�
�
Caution: A number is shown on the cable for SCARA Robot.
Connect it according to the controller connector number. �
In such case, give a number to each connector to avoid any mistake.
If the cable is not correctly connected, it might cause a damage to or
malfunction of the motor or PC board. �
