Chapter 4
Absolute Reset and
Absolute Battery
4.1.1 For PC Software
217
�

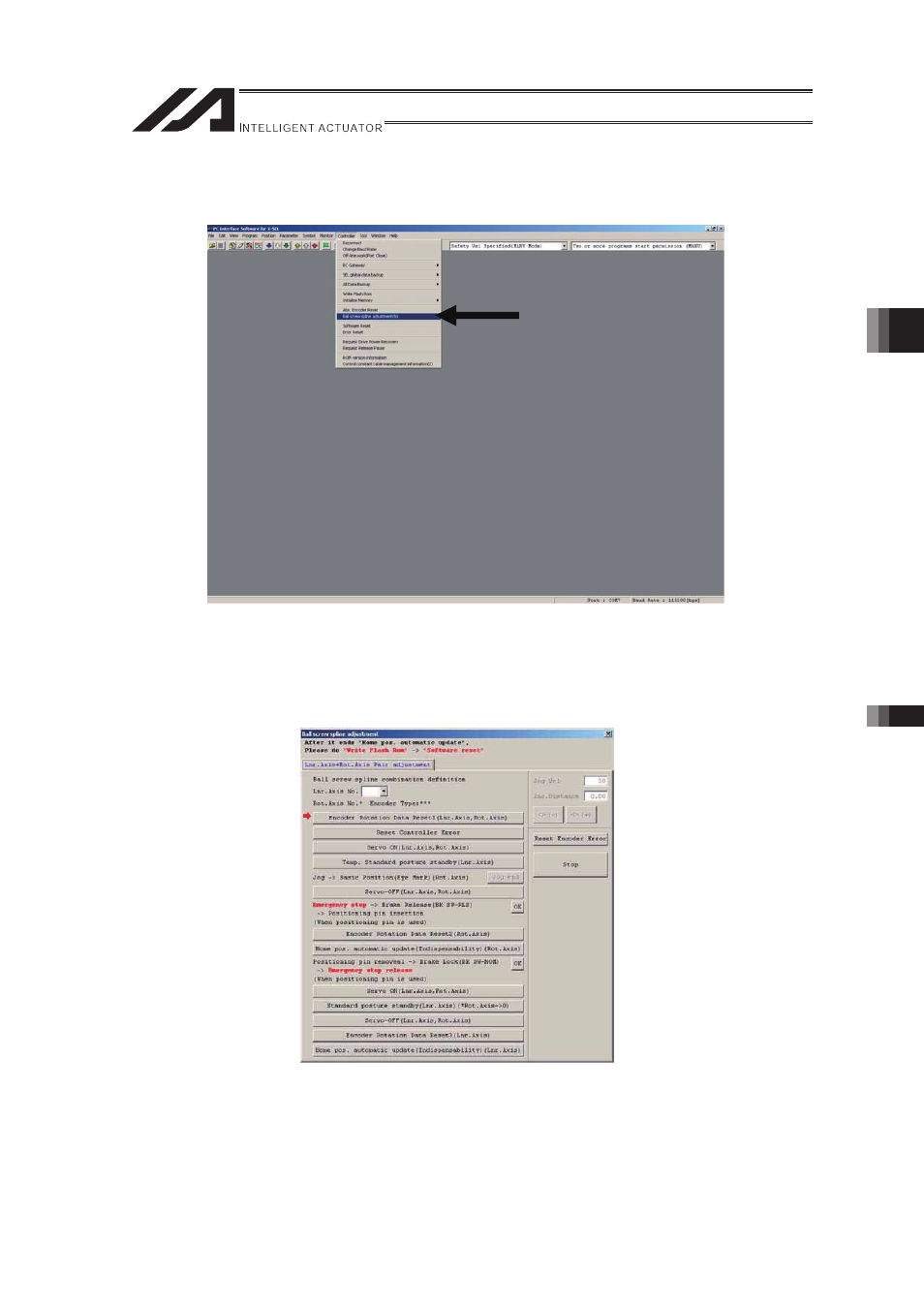

Starting the Ball-screw Spline Adjustment Window
1) Start the ball-screw spline adjustment window from the PC software.
2) The ball-screw spline adjustment window starts.
When a "Lnr. Axis No. (linear movement axis number)" is selected, "Rot. Axis No.
(Rotational Movement Axis Number) (Mating Axis Number)" and "Encoder Type" are
displayed.
