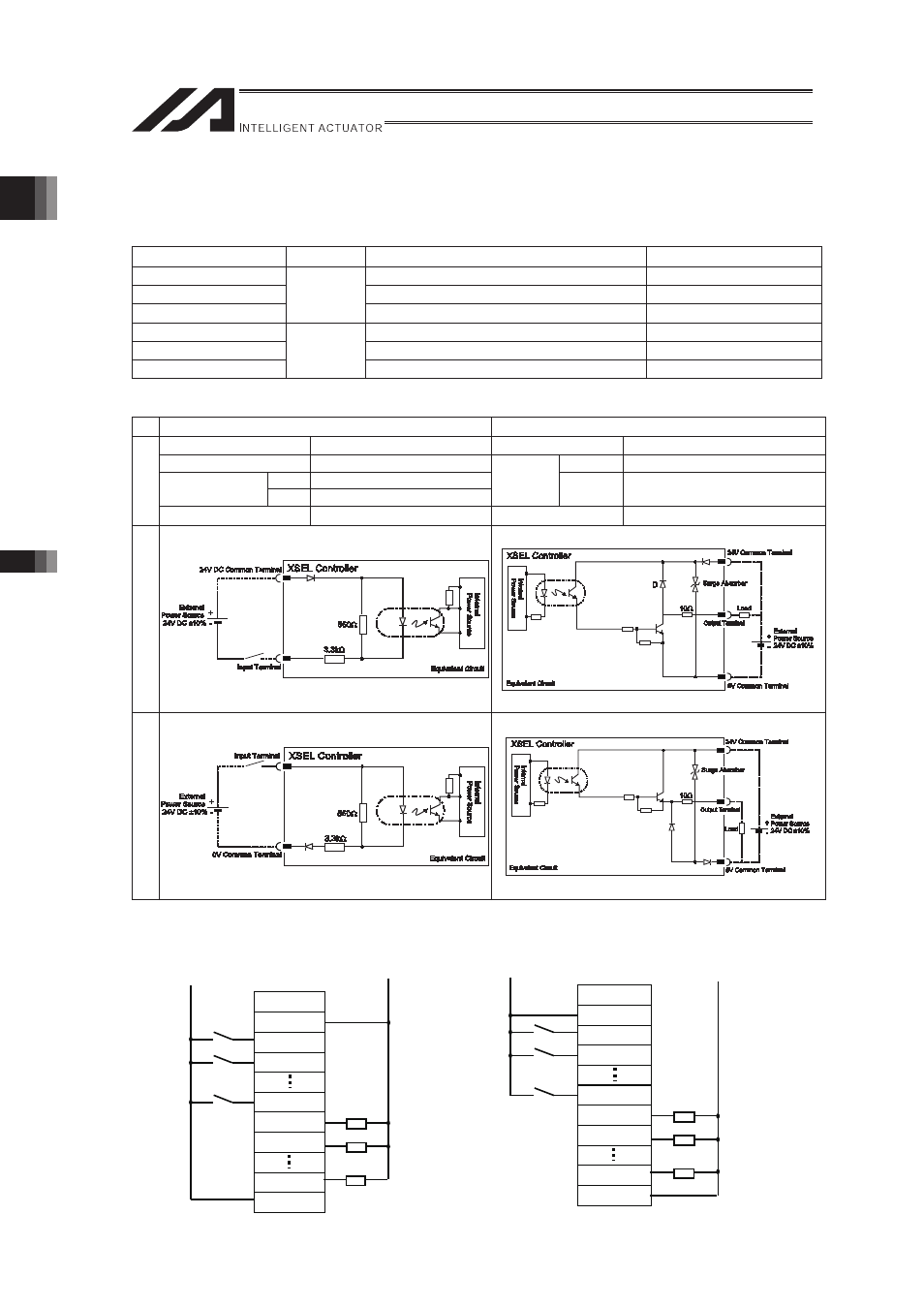

Chapter 1 Specifications Check
1.4 Option
1.4.1 PIO Board
56
1.4 Option
�
1.4.1 PIO Board
[1] Type�
XSEL Mode Display Polarity Input and Output Points Model
N1 Input 32 Points, Output 16 Points IA-103-X-32
N2 Input 16 Points, Output 32 Points IA-103-X-16
N3
NPN
Input 48 Points, Output 48 Points IA-IO-3204-NP
P1 Input 32 Points, Output 16 Points IA-103-X-32-P
P2 Input 16 Points, Output 32 Points IA-103-X-16-P
P3
PNP
Input 48 Points, Output 48 Points IA-IO-3204-PN
�
[2] Input and Output Interfaces
Input Output
Input Voltage DC24V±10% Load voltage DC24V±10%
Input Current 7mA/1 Circuit I/O 100mA/1 Circuit, 400mA *1 / 8 Port
ON Min. 16VDC ON/OFF
Voltage
OFF Max. 5VDC
Load
current
Multipoint
I/O
50mA/1 Circuit,
400mA *2 / 24 Port
Sp
ec
ific
atio
n Insulation Type
Photocoupler Insulation Insulation Type Photocoupler Insulation
NPN
P
N
P
*1 The total of lead current reaches max. 400mA every 8 ports from output port No. 300.
*2 The total of lead current reaches max. 400mA every 24 ports from output port No. 300.
�
�
�
�
�
�
�
�
�
�
�
�
�
�
NPN type : N1
Pin No.
1
2
3
33
34
35
49
50
0V
DC24
PNP type : P1
Pin No.
1
2
3
33
34
35
49
50
0V DC24
