Chapter 2 Wiring
2.3.5 W
ring for extension I/O units
132

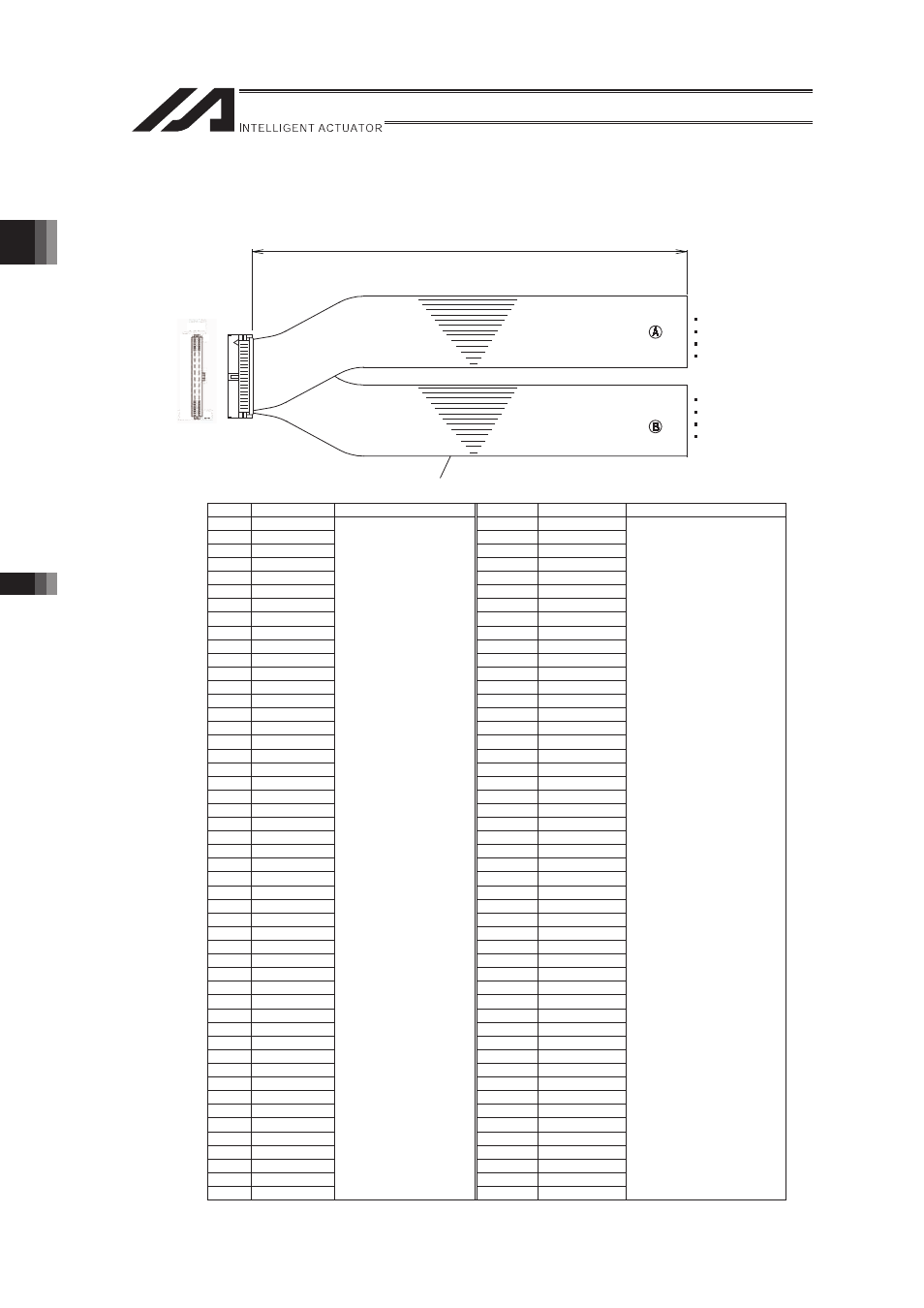

� 48 Input Points / 48 Output Points
Model : CB-X-PIOH ���
(��� indicates the cable length L. Example. 020 = 2m)
No. Cable color Wiring No. Cable color Wiring
1 Brown-1 51 Brown-1
2 Red-1 52 Red-1
3 Orange-1 53 Orange-1
4 Yellow-1 54 Yellow-1
5 Green-1 55 Green-1
6 Blue-1 56 Blue-1
7 Purple-1 57 Purple-1
8 Gray-1 58 Gray-1
9 White-1 59 White-1
10 Black-1 60 Black-1
11 Brown-2 61 Brown-2
12 Red-2 62 Red-2
13 Orange-2 63 Orange-2
14 Yellow-2 64 Yellow-2
15 Green-2 65 Green-2
16 Blue-2 66 Blue-2
17 Purple-2 67 Purple-2
18 Gray-2 68 Gray-2
19 White-2 69 White-2
20 Black-2 70 Black-2
21 Brown-3 71 Brown-3
22 Red-3 72 Red-3
23 Orange-3 73 Orange-3
24 Yellow-3 74 Yellow-3
25 Green-3 75 Green-3
26 Blue-3 76 Blue-3
27 Purple-3 77 Purple-3
28 Gray-3 78 Gray-3
29 White-3 79 White-3
30 Black-3 80 Black-3
31 Brown-4 81 Brown-4
32 Red-4 82 Red-4
33 Orange-4 83 Orange-4
34 Yellow-4 84 Yellow-4
35 Green-4 85 Green-4
36 Blue-4 86 Blue-4
37 Purple-4 87 Purple-4
38 Gray-4 88 Gray-4
39 White-4 89 White-4
40 Black-4 90 Black-4
41 Brown-5 91 Brown-5
42 Red-5 92 Red-5
43 Orange-5 93 Orange-5
44 Yellow-5 94 Yellow-5
45 Green-5 95 Green-5
46 Blue-5 96 Blue-5
47 Purple-5 97 Purple-5
48 Gray-5 98 Gray-5
49 White-5 99 White-5
50 Black-5
Flat cable � A
(Press welding)
AWG28
100 Black-5
Flat cable � B
(Press welding)
AWG28
[Refer to 2.2.10 Extension I/O unit (Option) for the signal assignment for each cable]
Socket:
HIF6-100D-1.27
(Manufacturer: Hirose)
Flat cable: UL2651 (50 cores), AWG28 × 2
L
Brown -1 (1)
Brown -1 (51)
Black -5 (50)
Black -5 (100)
CN1
51 1
100 50
