Chapter 6 Parameter
6.10 Parameter Setting (Applied)
398
I/O Parameter Settings (Reference)
No. Parameter name Default value Input range Unit
201 Attribute 1 of SIO channel 1 opened to user (standard mount) 28100001H 0H to FFFFFFFFH None
213 Attribute 1 of SIO channel 2 opened to user (standard mount) 28100001H 0H to FFFFFFFFH None
Bits 28 to 31: Baud rate type (0: 9.6, 1: 19.2, 2: 38.4, 3: 57.6, 4: 76.8, 5: 115.2 kbps)
Bits 24 to 27: Data length (7: 7 bit, 8: 8 bit)
Bits 20 to 23: Stop bit length (1: 1 bit, 2: 2 bit)
Bits 16 to 19: Parity type (0: None, 1: Odd, 2: Even)
Bits 12 to 15: Reserved by the system
Bits 8 to 11: Reserved by the system
Bits 4 to 7: Reserved by the system
Bits 0 to 3: Use selection (0: Do not use, 1: Use)
No. Parameter name Default value Input range Unit
202 Attribute 2 of SIO channel 1 opened to user (standard mount) 00000001H 0H to FFFFFFFFH None
214 Attribute 2 of SIO channel 2 opened to user (standard mount) 00000001H 0H to FFFFFFFFH None
� Settings
Bits 28 to 31: Reserved by the system
Bits 24 to 27: Reserved by the system
Bits 20 to 23: Reserved by the system
Bits 16 to 19: Character transmission interval (msec)
Bits 12 to 15: Communication method (0: Full duplex, 1: Half duplex)
Bits 8 to 11: Send operation type in half duplex communication
(0: Do not check CTS-ON when sending,
1: Check CTS-ON when sending)
Bits 0 to 7: Minimum receive �
send delay time in half duplex communication (msec)
No. Parameter name Default value Input range Unit
203 Attribute 3 of SIO channel 1 opened to user (standard mount) 01118040H 0H to FFFFFFFFH None
215 Attribute 3 of SIO channel 2 opened to user (standard mount) 01118040H 0H to FFFFFFFFH None
� Settings
Bits 28 to 31: Flow control type
(0: None, 1: Xon/Xoff, 2: Hardware)
* This setting is valid in full duplex communication.
* If flow control is performed, select 38.4 kbps or lower. If the baud rate is
higher, an overrun error, etc., may occur.
Bits 24 to 27: Xon send selection when sending after SIO-CPU reset is enabled
(0: Do not send, 1: Send)
* This setting is valid in full duplex communication and only when Xon/Xoff
flow control is performed.

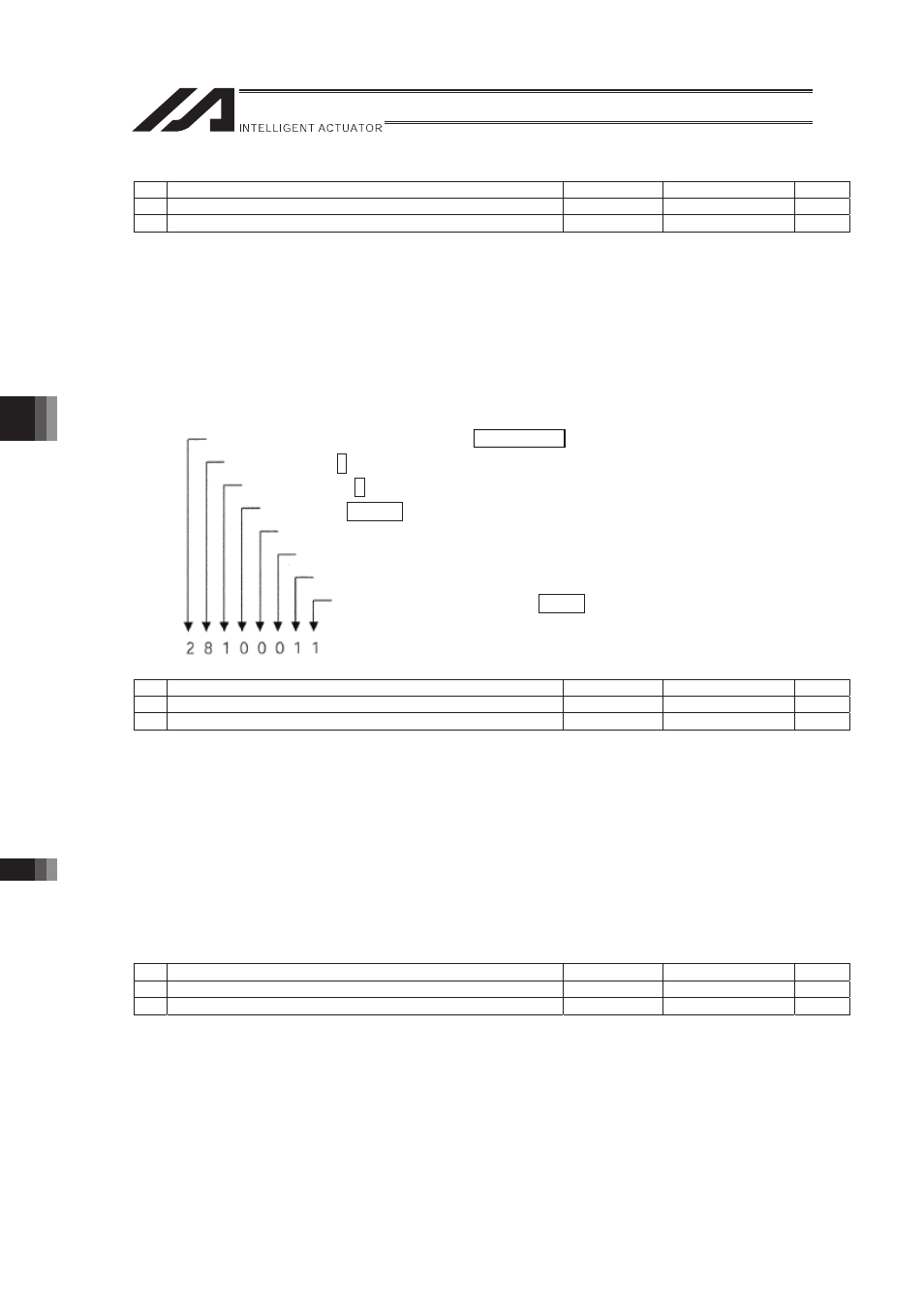

Baud rate 0: 9.6 kbps 1: 19.2 kbps 2: 38.4 kbps 3: 57.6 kbps 4: 76.8 kbps 5: 115.2 kbps
Data length 7, 8
Stop bit length 1, 2
Parity type 0: None, 1: Odd, 2: Even
Reserved by the system
Reserved by the system
Reserved by the system
Use selection (0: Do not use, 1: Use)
