Chapter 4
Absolute Reset and
Absolute Battery
4.1.1 For PC Software
155

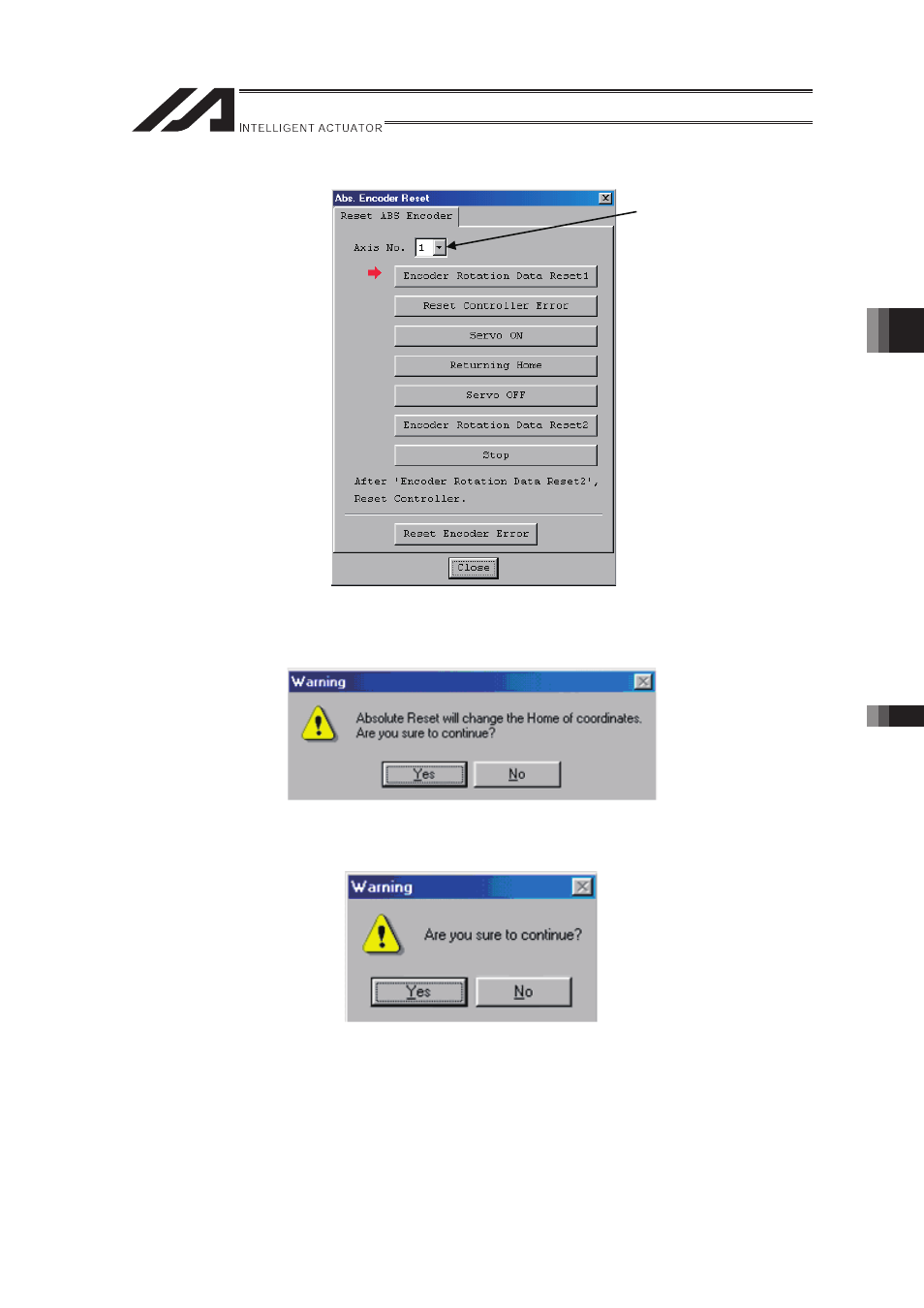

10) [Abs. Encoder Reset] dialog box appears.
11) Click on the Encoder Rotation Data Reset 1 button, and [Warning] dialog box appears.
Click Yes (Y).
12) [Warning] dialog box pops up again. Click Yes (Y).
Click hear and the axis
number changes.
Select an axis that requires
an absolute reset.
