Chapter 3 Operation
3.4 Program Operation 3.4.1
Auto Start upon Power On
149
3.4 Program Operation
For the operation there are two ways of start-up. One is the automatic start-up of the set
program No. and the other is to start up with the program No. selected externally.
3.4.1 Auto Start upon Power On
After the power is turned ON, the program with its No. registered in the XSEL controller, can
be automatically started up.
[1] Preparation
Connect the personal computer software and set the I/O parameter No. 33 to “1” and set the
program No. to be started up in the parameter No. 1 (for others)
Parameter
type and
number
Selectable
setting value
Description
Setting
value
0
Input port 003 is designated as a general-purpose
input.
1
(factory default)
In the AUTO mode, when the power is turned ON or
the software reset is performed, the program No.
set in parameter No. 1 (for others) is executed.
The input port 003 can be used as a universal input
port.
I/O parameter
No. 33
2
When input port 003 is turned ON, the program
whose number is set in other parameter No. 1 is
executed. When this port is turned OFF, all currently
running programs stop.
1
Other
parameter No.
1
1 to 128
Set the program number of the program you want to
start automatically.
Program
number
[2] Set the mode switch on the XSEL controller to the AUTO position.
[3] Turn off the power and then turn it back on.
[4] The XSEL controller is restarted (the RDY signal turns ON to indicate a successful start),
after which the specified program starts.

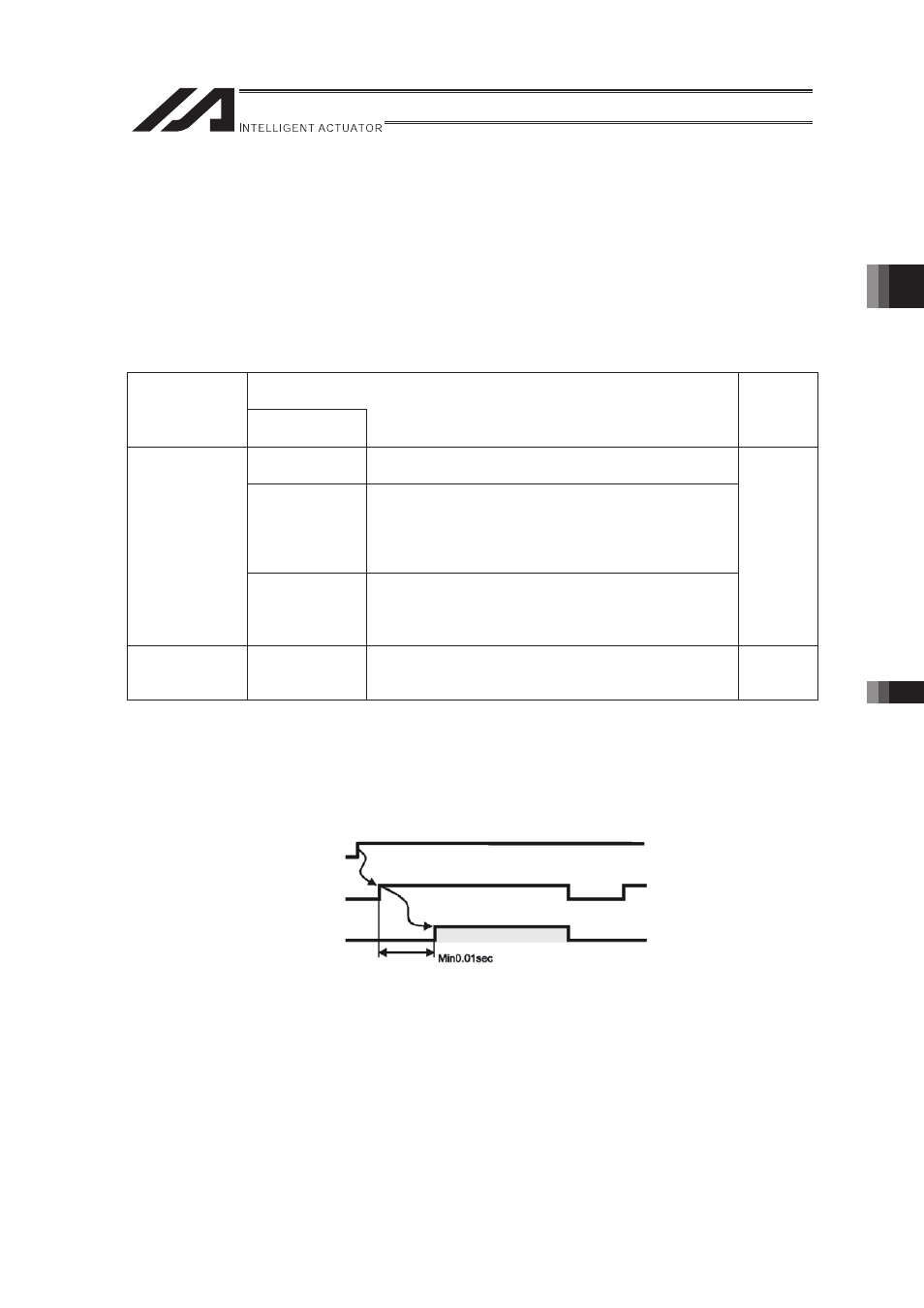

200-VAC power
RDY output (output
from the XSEL)
Program
Program execution
