4.2.2 Replace
Absolute Battery
257

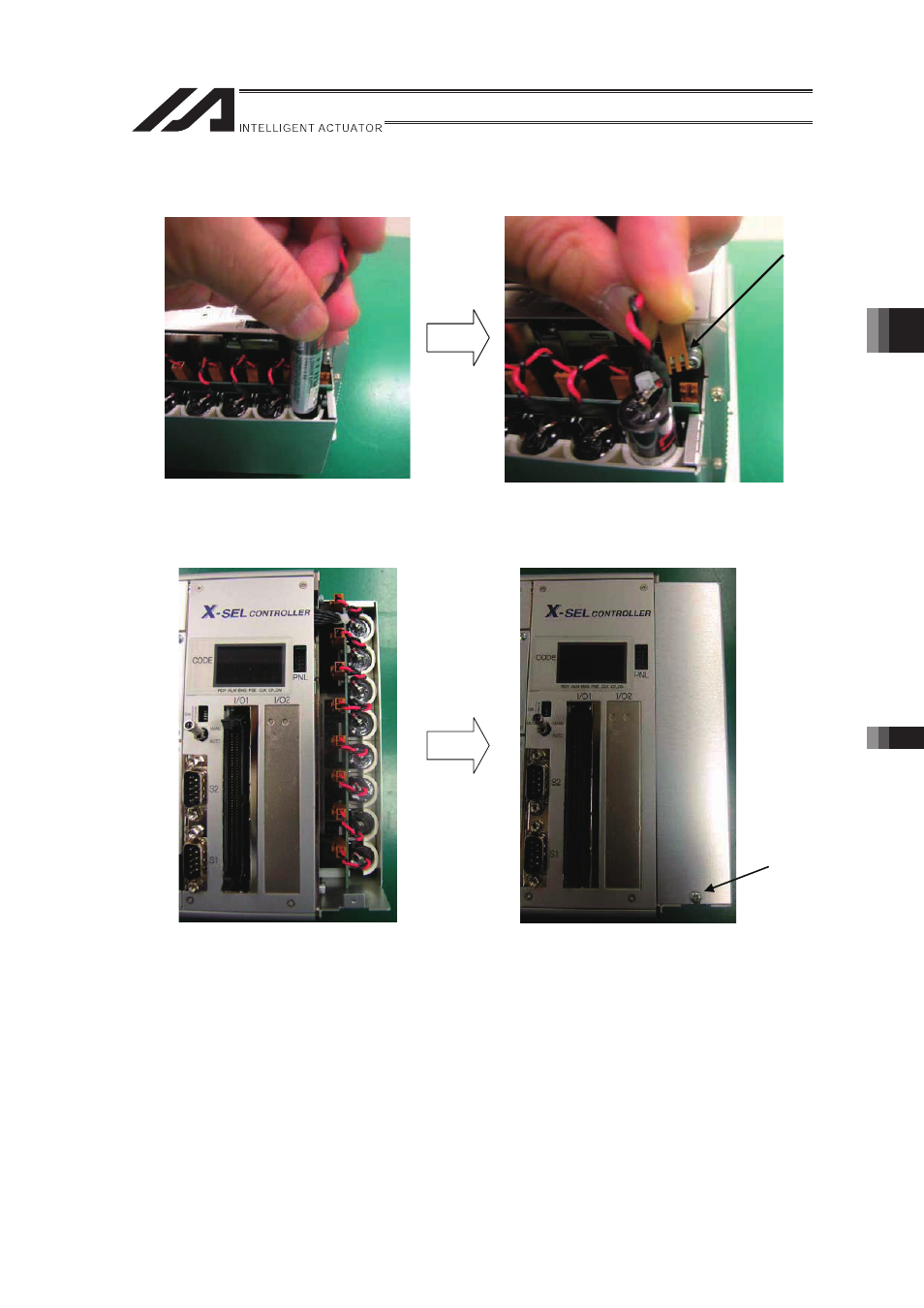

4) Insert the new battery to the holder and plug in the battery connectors.
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
5) Attach the panels on the absolute battery unit with screws.
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
�
6) Turn ON the controller power.
Once “rdy” is shown in the 7-segment LED display window on the controller, the
replacement work is finished.
If Absolute-Data Backup Battery Voltage Low Warning (Error No. A23) is shown, turn off
the controller power and proceed to (7). Reset Absolute-Data Backup Battery Voltage Low
Warning (Error No. A23).
�
Connector
Screw
