Chapter 4
Absolute Reset and
Absolute Battery
4.1.1 For PC Software
197

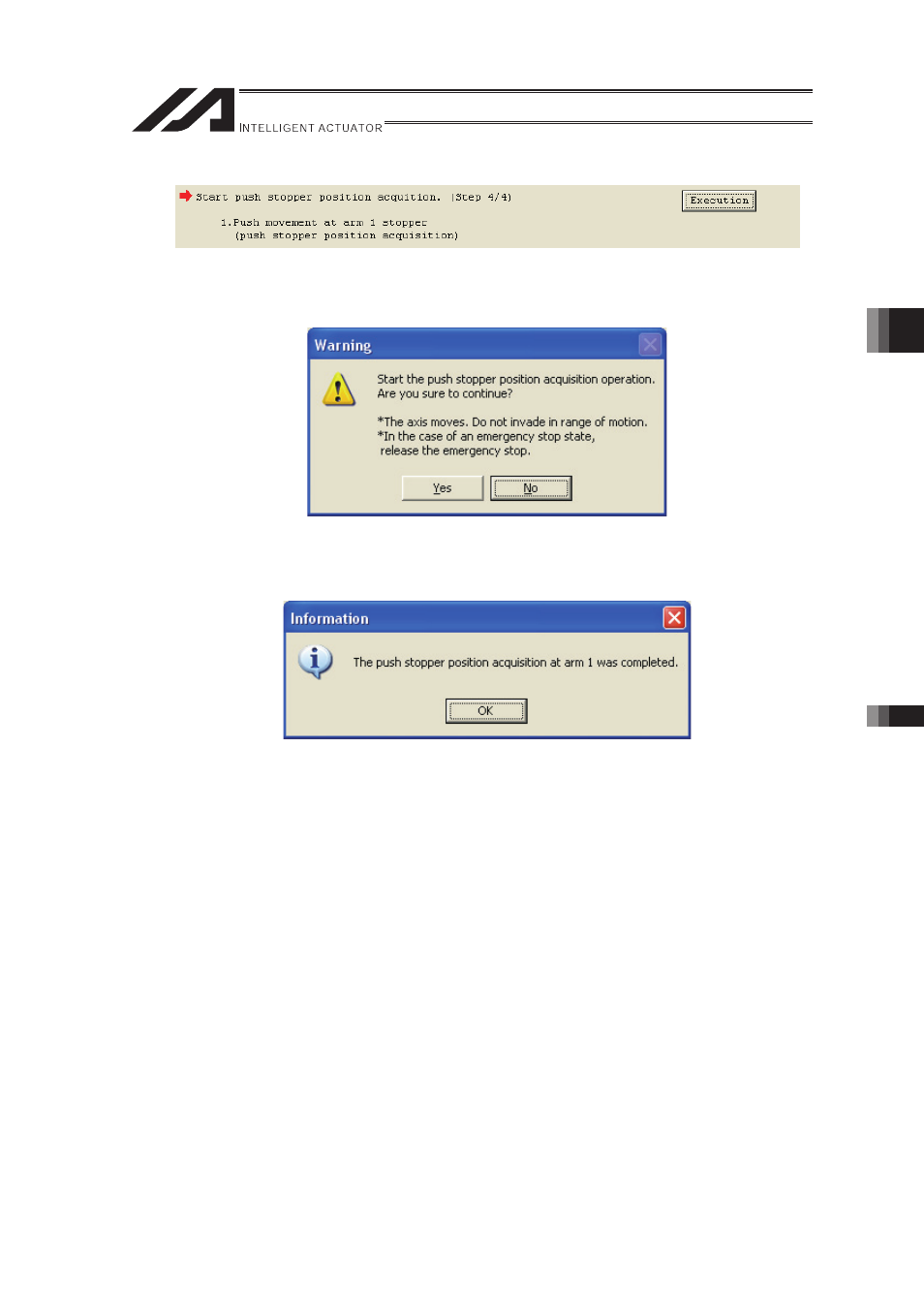

5) Click “Execution” button.
6) A Warning window shows up. Click “Yes”. Process to acquire the push stopper position will
start.
7) Once the push stopper position acquisition is complete, the Information window will
appear. Click “OK” button.
8) If it is necessary to have the push stopper position a acquisition for another axis, move on
to the axis selection. When finishing the process, click “�” on the upper right side of the
window. Once the window is closed, the parameters start to be written automatically to the
flash ROM, and controller is rebooted by the software reset.
9) Once the controller reboot is finished, conduct the push type absolute reset on the axis
with the push stopper position acquisition.
