Chapter 3 Operation
3.3.2 Panel Window Display
145

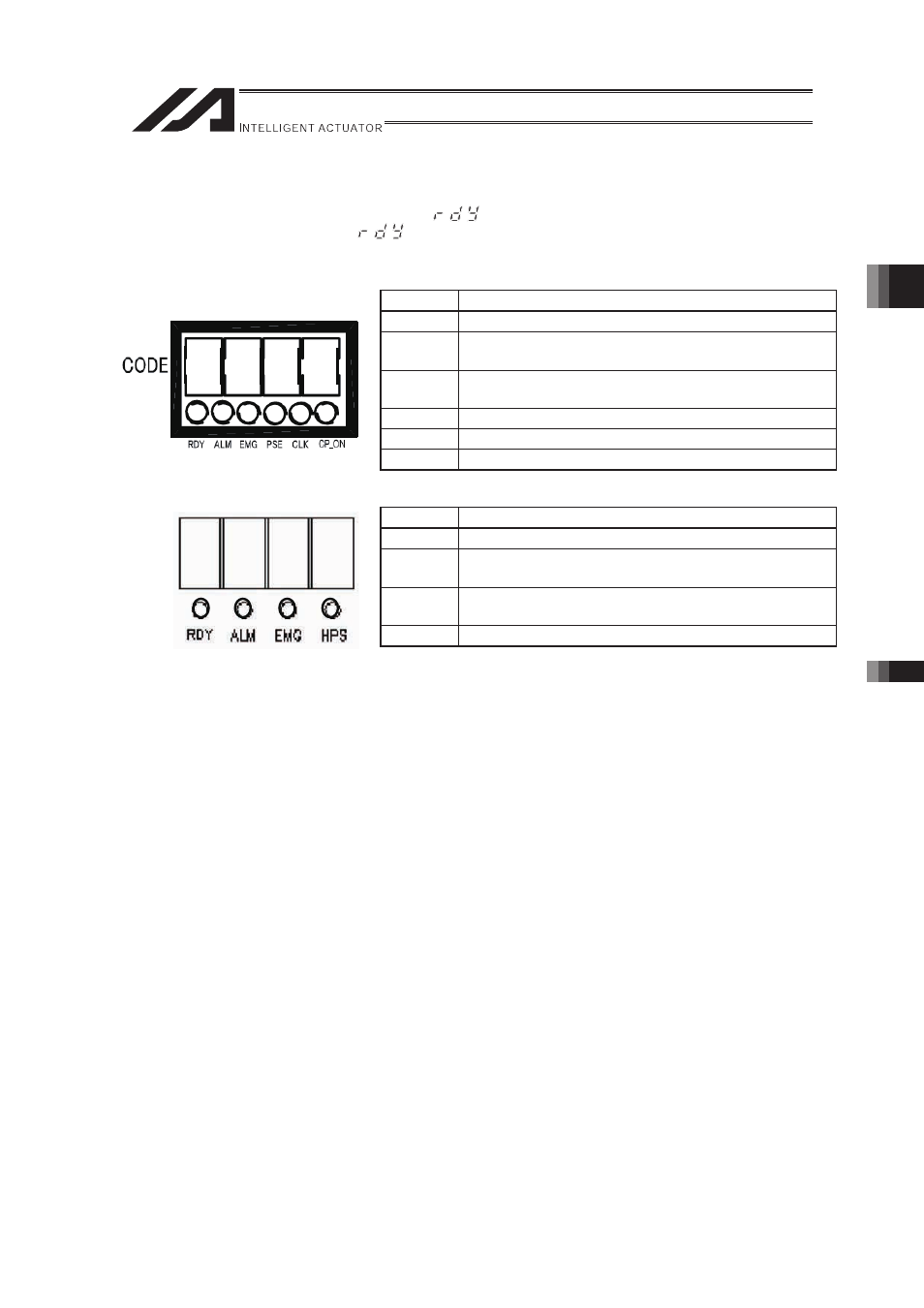

3.3.2 Panel Window Display
The 4-digit, 7-segment LED shows the controller status.
When the unit is started up normally, “ ” is displayed after the initial processing display.
If an indication other than “ ” is displayed, check “Trouble Shooting” in Chapter 7.
�
Displayed Contents of LED Lamps on Controller
Name
Status when LED is on
RDY
CPU Rready (Program operation available)
ALM
CPU Alarm (Error of message level or higher)
Error in CPU hardware�
EMG
Emergency stop, error in CPU hardware or
power-related hardware error
PSE
Power-related hardware error
CLK
Error in system lock or power-related hardware error
CP_ON Control power supply normal.
Displayed Contents of LED Lamps on Panel unit
Name
Status when LED is on
RDY
CPU Rready (Program operation available)
ALM
CPU Alarm (Error of message level or higher)
Error in CPU hardware
EMG
Emergency stop, error in CPU hardware or
power-related hardware error
HPS
All axes have completed home-return operation
