Chapter 2 Wiring
2.2.7 PIO Circuit
98
� Use the attached cable for the I/O connection.

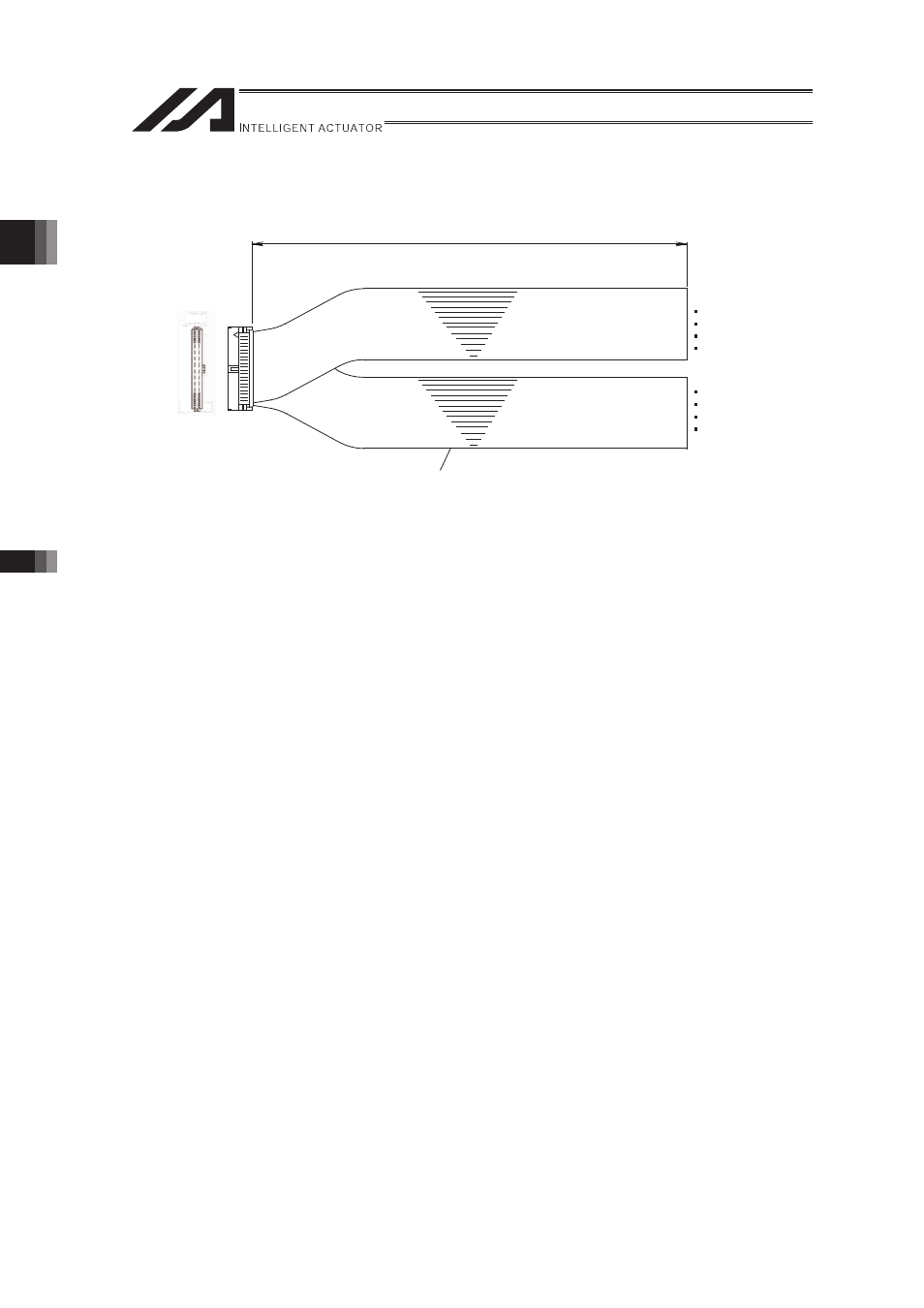

Model : CB-X-PIO��� (��� indicates the cable length L. Example. 020 = 2m)
Socket:
HIF6-100D-1.27
(Manufacturer: Hirose)
Flat cable: UL2651 (50 cores), AWG28 × 2
L
Brown -1 (1)
Brown -1 (51)
Black -5 (50)
Black -5 (100)
CN1
51 1
100 50
