Chapter 3 Operation
3.2 I/O Ports
142
3.2 I/O Ports
The I/O port can deliver the data with the XSEL controller and external signals through
interface.
One port can exchange data for one contact (1 bit).
Data is exchanged via PIOs (24-V I/Os) or over a field network.
Either a PIO or field network can connect to each port at a time.
Whether to use PIO or field network is set by a parameter.
Refer to Chapter 2.3.4 for the I/O interface.
For the field network interface, refer to each instruction manual.

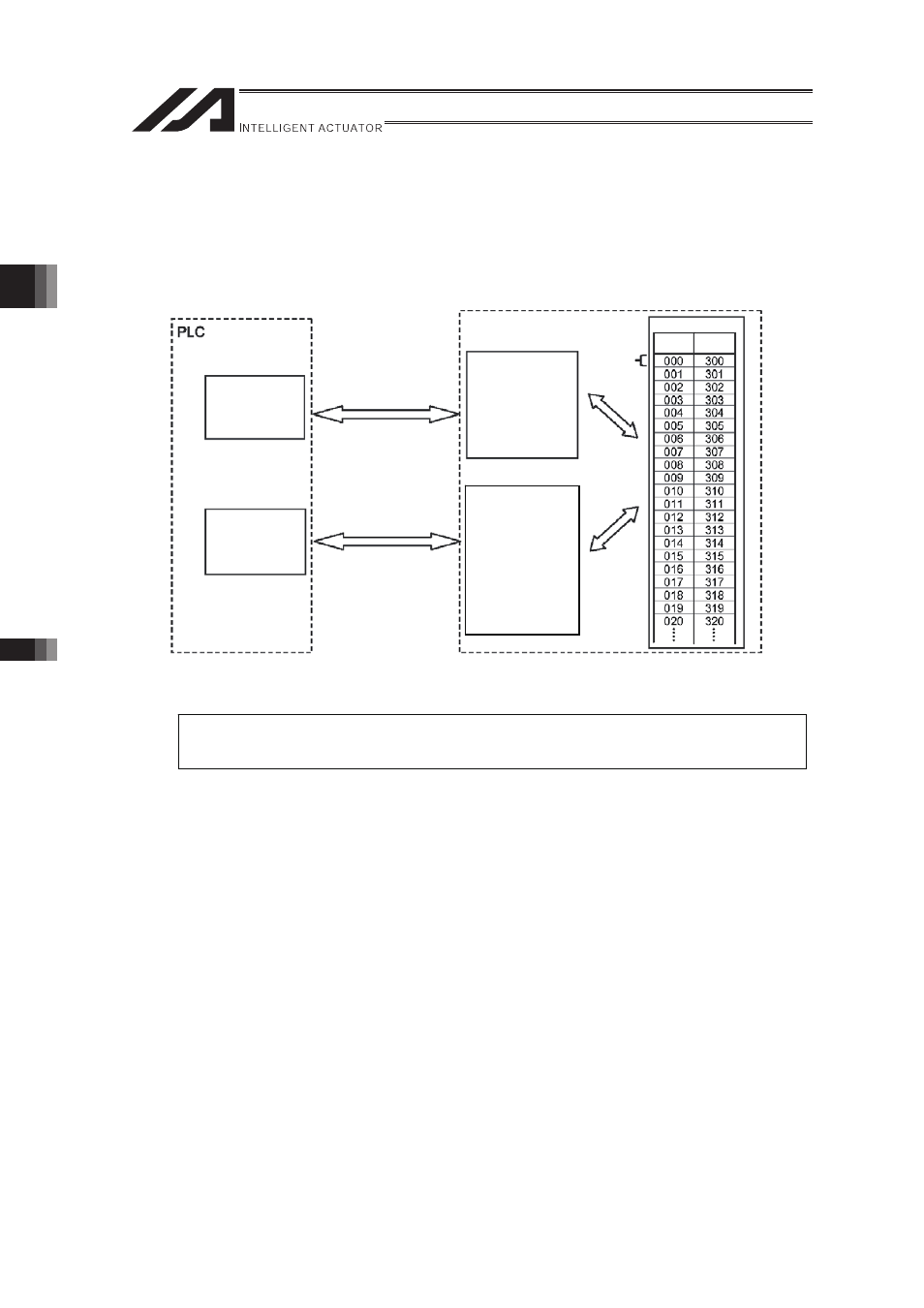

(Host)
XSEL controller
I/O unit
field
network
master unit
Data exchange
Data exchange
1 port
Connected
internally.
(Assignments
are set by
parameters.)
I/O ports
Input
port
Output
port
� indicates flow of data.
I/O interface
� Expansion I/O
board
� Multi-point I/O
board
Field network
interface
� DeviceNet board
� CC-Link board
� PROFIBUS
board
� EtherNet/IP
board
� EtherCAT board
