Chapter 4
Absolute Reset and
Absolute Battery
4.1.1 For PC Software
200

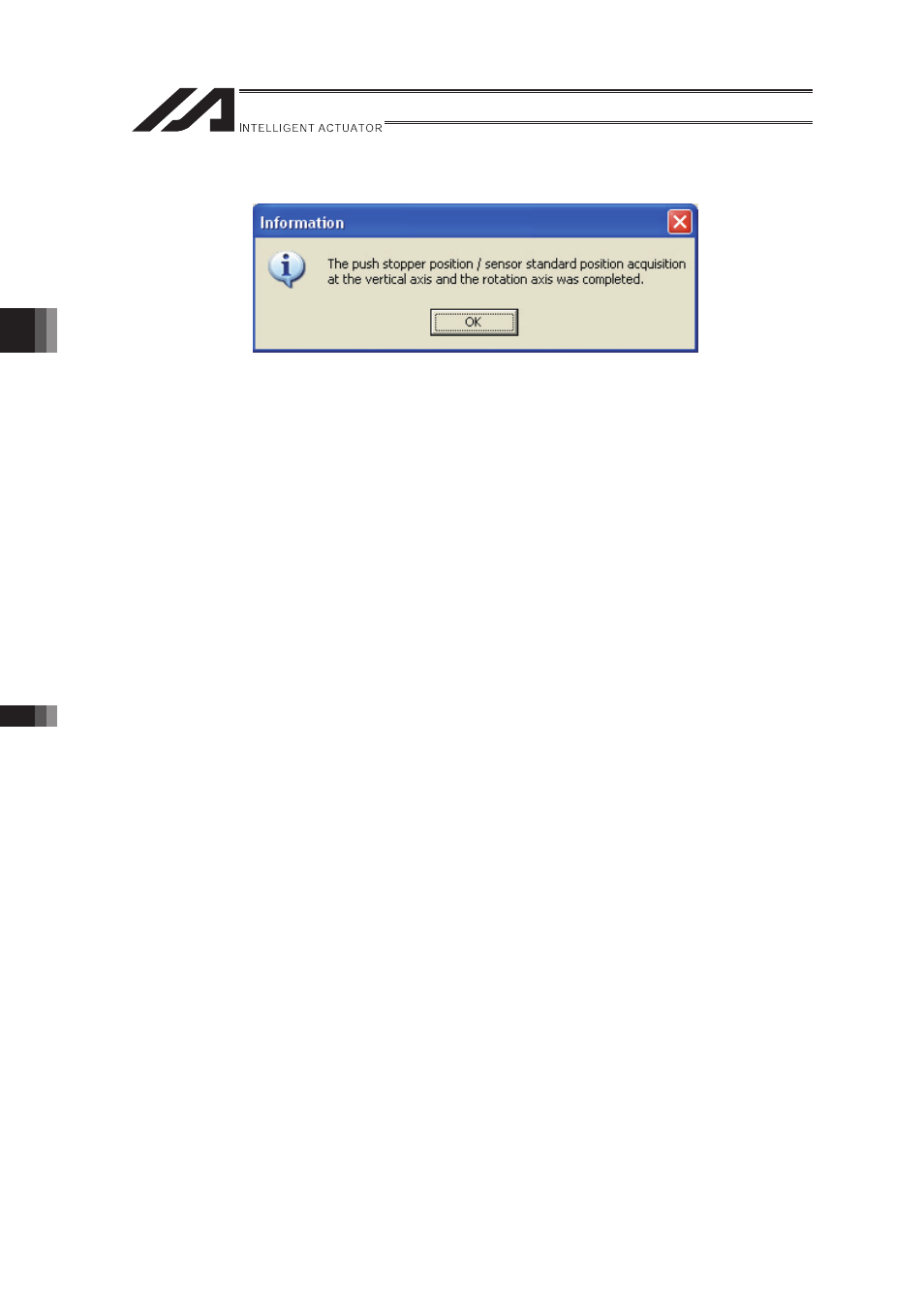

7) Once the push stopper position acquisition is complete, the Information window will
appear. Click “OK” button.
8) When finishing the process, click “�” on the upper right side of the window. Once the
window is closed, the parameters start to be written automatically to the flash ROM, and
controller is rebooted by the software reset.
9) Once the controller reboot is finished, conduct the push type absolute reset on the axis
with the push stopper position acquisition.
