Chapter 8
Appendix
8.1 Example of Safety Circuit for S-type X-SEL
Controllers
(Conforming to Safety Category)
473
Chapter 8 Appendix

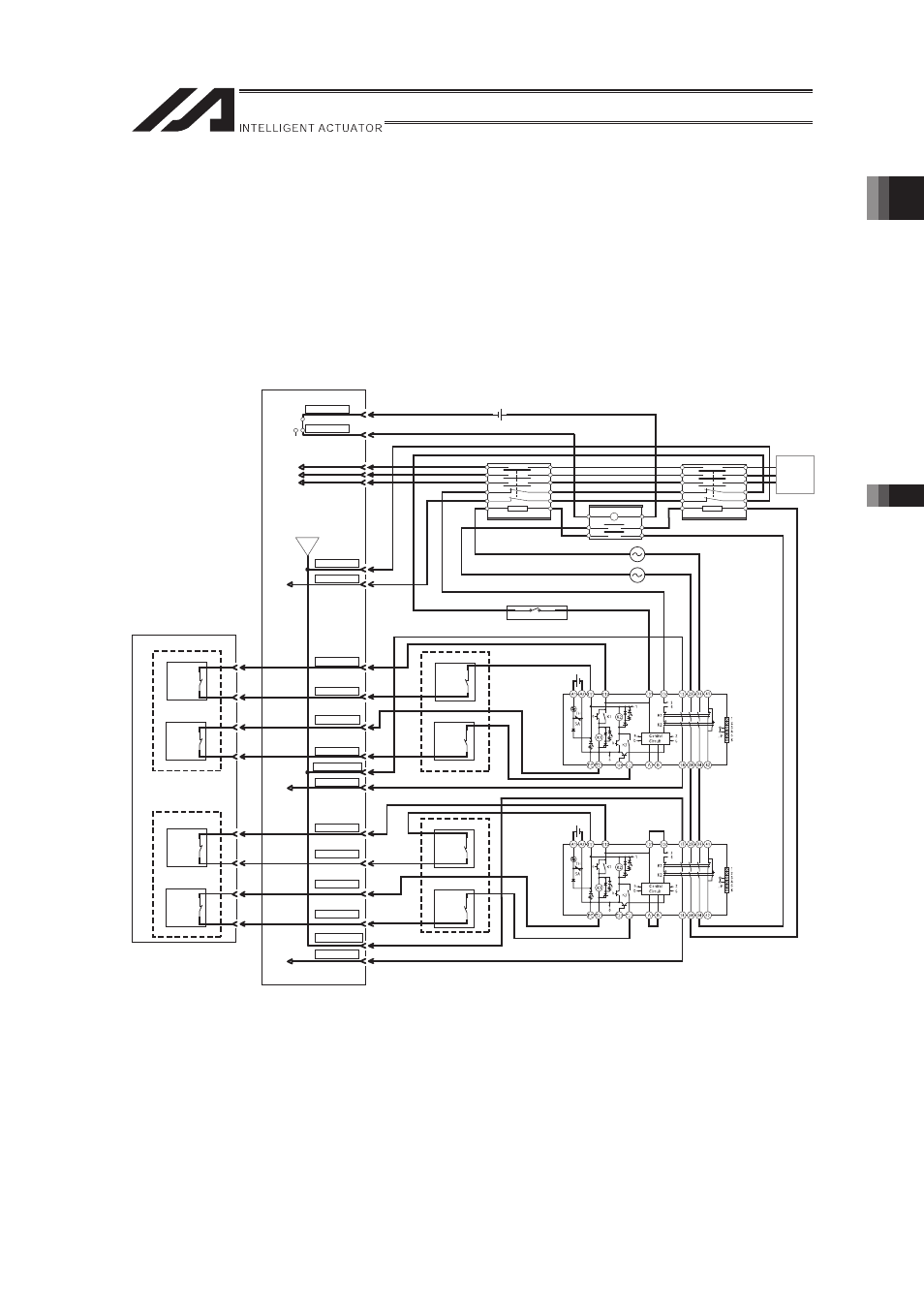

8.1 Example of Safety Circuit for S/SX/SXD type
(Conforming to Safety Category)
S/SX/SDX types (global specifications) are the controllers applicable for the safety categories.
In this section, shows samples of circuit diagrams for Categories 3 and 4, however, it is not
possible for us to confirm the conformation to the safety categories in the system that you
construct. Therefore, it is necessary to construct the circuit that conforms to the safety
category required for the system with the circuit examples as a reference.
SDN Out-
DC24V
AC200V
three
phase
MG MG
Contactor (NEO SC) Contactor (NEO SC)
Relay
Reset switch
Safety relay unit
(G9SA-301 by Omron)
External emergency stop switch
External
EMG
switch
contact 1
External
EMG
switch
contact 2
External
SGATE
contact 1
Safety gate switch
[17]
[16]
[12]
[13]
[14]
[15]
[8]
[7]
[3]
[4]
[5]
[6]
[9]
[18]
[2]
[1]
External
SGATE
contact 2
Emergency stop pushbuttom
EMG SW
contact 1
Teaching pendant
EMG SW
contact 2
SDN Out+
DET +24V
E24V
DET IN
EMG line+
EMG line-
EMG2 line+
EMG line-
EMGin IN
ENB1 line+
ENB1 line-
ENB2 line+
ENB2 line-
ENBin IN
EMGin +24V
ENBin +24V
Double position switch
for enable control
DEAD MAN
SW
contact 1
DEAD MAN
SW
contact 2
