Intel ® 413808 and 413812 I/O Controllers in TPER Mode
October 2007 Developer’s Manual
Order Number: 317805-001US 79
Address Translation Unit (PCI-X)—Intel
®
413808 and 413812
2.3.2 Outbound Byte Swapping
When enabled, the swapping occurs as described in Figure 11, “Outbound Byte
Swapping for Transaction with Byte Count of 1” on page 79 , Figure 12, “Outbound Byte
Swapping for Transaction with Byte Count of 2” on page 79 , and Figure 13, “Outbound
Byte Swapping for Transaction with Byte Count of 3 or Larger” on page 79 . The bytes
are swapped within a 32-bit DWORD and the type of byte swapping performed is
determined by the transaction byte count. For Byte Count of 3 or larger transactions,
no byte swapping is performed.
Note: The byte swapping capability of the ADMA unit should be used to swap bytes within
each DWORD for PCI-to-Memory Read/Write DMA transfers.

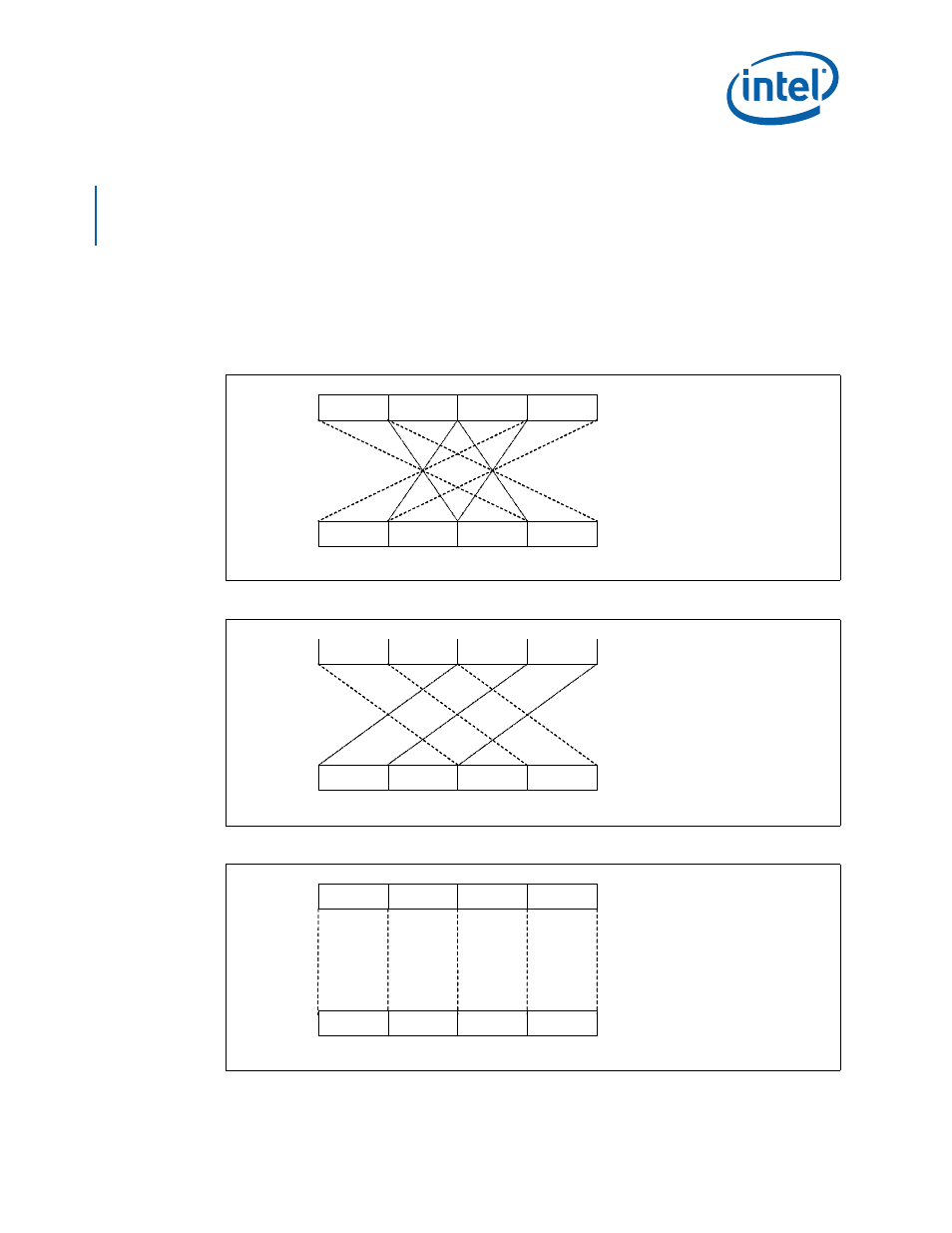

Figure 11. Outbound Byte Swapping for Transaction with Byte Count of 1
Figure 12. Outbound Byte Swapping for Transaction with Byte Count of 2
Figure 13. Outbound Byte Swapping for Transaction with Byte Count of 3 or Larger
Byte 0 Byte 0
Word 0 [31:24] Word 0 [23:16] Word 0 [15:8] Word 0 [7:0]
Word 0 [7:0] Word 0 [15:8] Word 0 [23:16] Word 0 [31:24]
32-Bit Word on Internal Data Bus
32-Bit Word on PCI Bus
+3 +2 +1 +0 B6191-01
Byte 0 Byte 0
Word 0 [31:24] Word 0 [23:16] Word 0 [15:8] Word 0 [7:0]
Word 0 [15:8] Word 0 [7:0] Word 0 [31:24] Word 0 [23:16]
32-Bit Word on Internal Data Bus
32-Bit Word on PCI Bus
+3 +2 +1 +0 B6192-01
Byte 0 Byte 0
Word 0 [31:24] Word 0 [23:16] Word 0 [15:8] Word 0 [7:0]
Word 0 [31:24] Word 0 [23:16] Word 0 [15:8] Word 0 [7:0]
32-Bit Word on Internal Data Bus
32-Bit Word on PCI Bus
+3 +2 +1 +0 B6193-01
