Intel ® 413808 and 413812—PMON Unit
Intel ® 413808 and 413812 I/O Controllers in TPER Mode
Developer’s Manual October 2007
742 Order Number: 317805-001US
In each of the 4 iterations above, the exact same repeatable workload produces
identical queue behavior, but the Counter 1 value (called Condition Code Matches
below) differs due to having a different threshold value each time. The condition code
match values (10, 8, 4, 3) from the 4 iterations can be used to compute the values of a
histogram as shown in the following two figures.

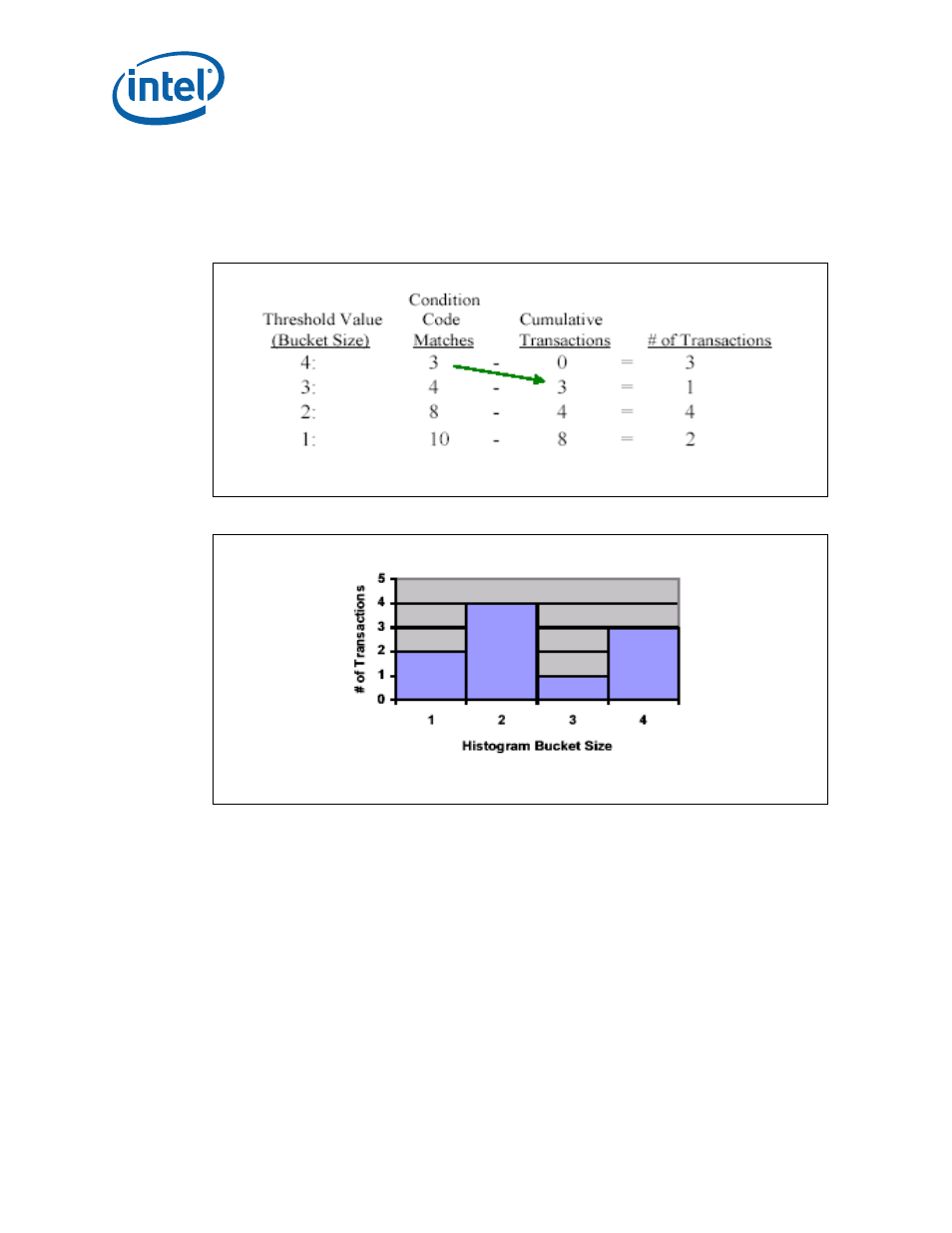

Figure 116. Processing of HOQ Histogram Example
Figure 117. Output from HOQ Histogram Example
B6318-01
B6319-01
