Address Translation Unit (PCI Express)—Intel

413808 and 413812

3.17.111 Outbound Vendor Message Header Register 1 - OVMHR1

The Outbound Vendor Message Header Registers allow software to create a header that

is used for a Vendor_Defined Message TLP. The OVMHR0-3 registers must be

programmed prior to writing the

Outbound Vendor Defined Message Payload Register -

OVMPR

. A write to the OVMPR initiates the Vendor_Defined Message TLP. When the

payload length is 0, a write to the OVMPR is still required to initiate the TLP but the

data written is ignored.
Vendor_Defined message format is shown in

Figure 38

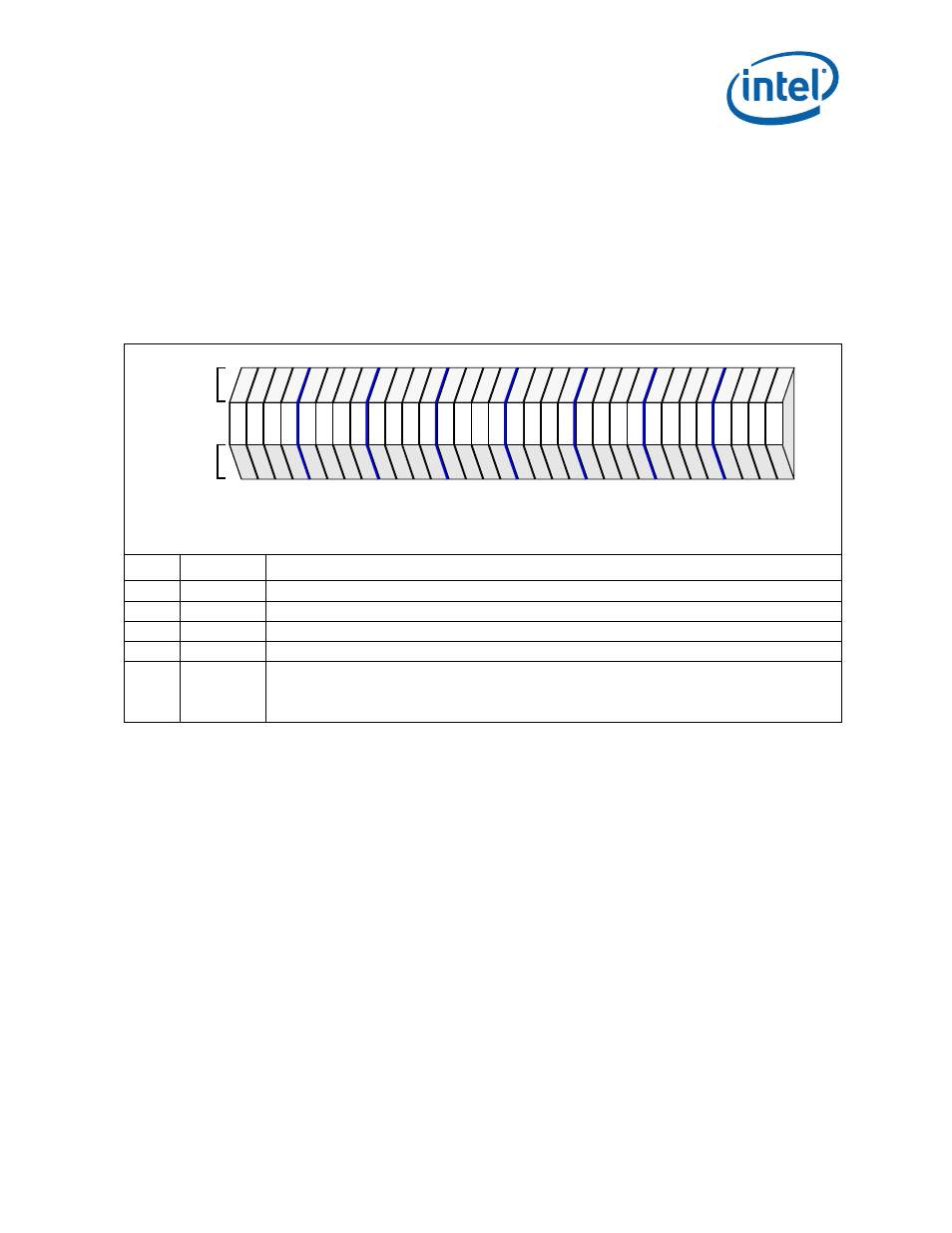

Table 251. Outbound Vendor Defined Message Header Register 1 - OVMHR1

Bit

Default

Description

31:24

00H

Requester ID - Bus number. This value is copied from the Bus number field in the PCISR.

23:19

0_0000

Requester ID - Device Number. This value is copied from the Device number field in the PCISR

18:16

000

Requester ID - Function Number. This value is programmable.

15:8

00H

Tag - The tag field is undefined for posted requests. Hardcoded to 0.

7:0

0111_1110

Message Code[7:0] - Indicates the type of message being generated. Valid encodings are:

0111_1110 Vendor_Defined Type 0

0111_1111 Vendor_Defined Type 1

Other codes may result in malformed packets.

PCI

IOP

Attributes

Attribute Legend:

RV = Reserved

PR = Preserved

RS = Read/Set

RW = Read/Write

RC = Read Clear

RO = Read Only

NA = Not Accessible

Internal Bus Address Offset

+364H
