Function blocks | L_SignalMonitor_a
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
18.1.151
L_SignalMonitor_a

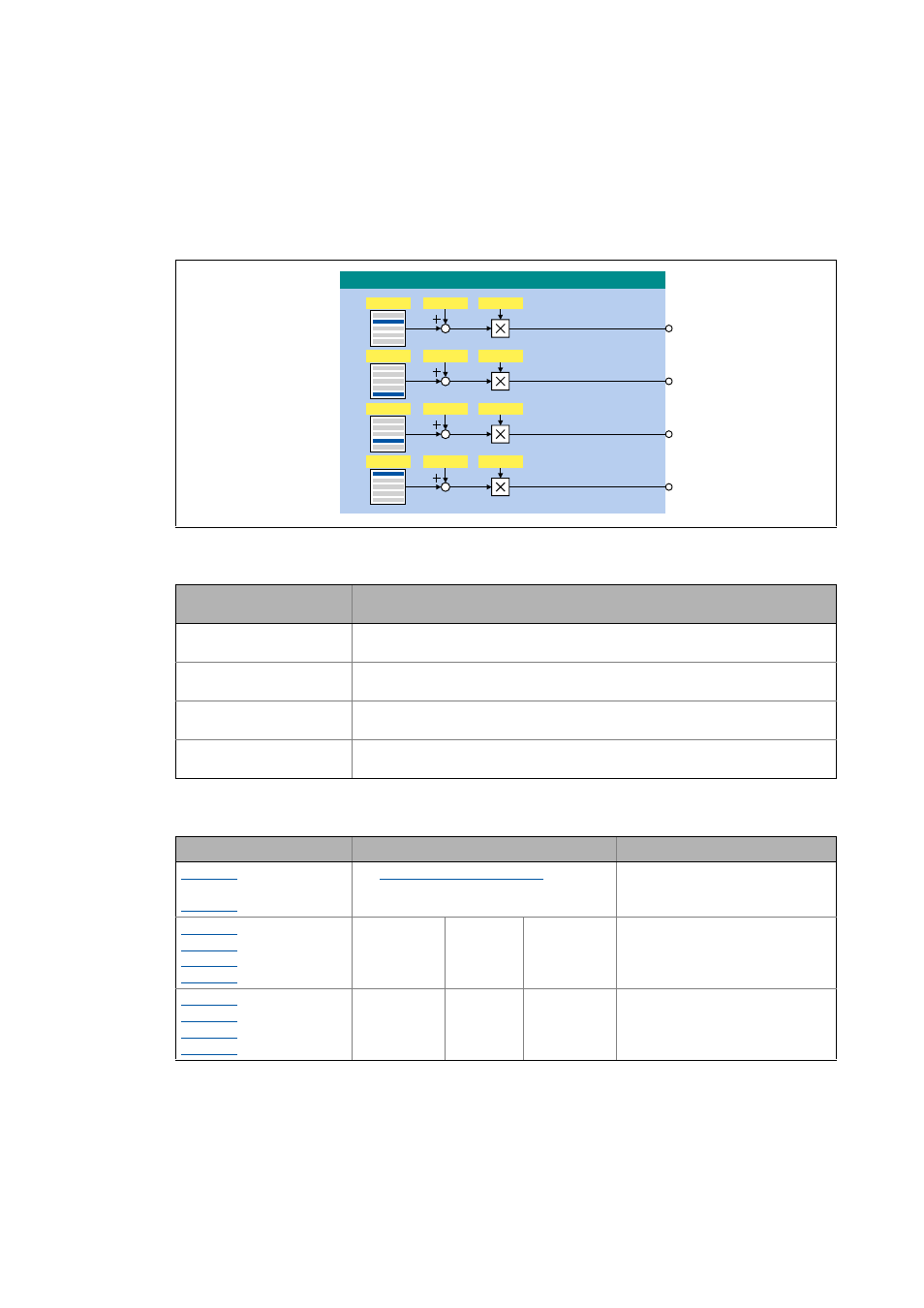

This FB outputs four analog signals which can be selected from a list of analog output signals of all
function blocks provided in the device.
• Offset and gain of the source signals are adjustable.
Outputs
Parameter
Identifier
Data type
Value/meaning
nOut1_a
INT
Output signal
• Internal limitation to ±32767
nOut2_a
INT
Output signal
• Internal limitation to ±32767
nOut3_a
INT
Output signal
• Internal limitation to ±32767
nOut4_a
INT
Output signal
• Internal limitation to ±32767
Parameter
Possible settings
Info
...
selection list - analog signals
Selection of the signal sources for
nOut1_a ... nOut4_a
-199.99
%
+199.99 Offset
-199.99
%
+199.99 Gain
/B6LJQDO0RQLWRUBD
Q2XWBD
&
&
&
Q2XWBD
&
&
&
Q2XWBD
&
&
&
Q2XWBD
&
&
&
